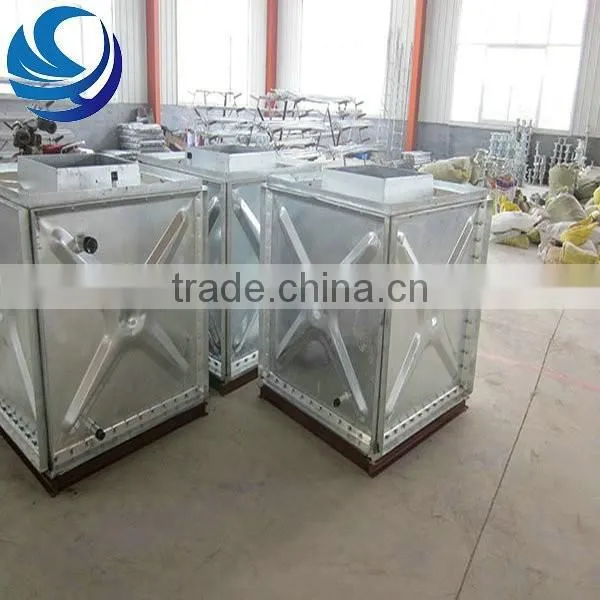

Help CenterLarge Volume Hot Dip Galvanized Steel Water Tank
Related Products
-
Stainless Steel and Hot Dip Galvanized BDF Water Tank Made in HuiliUS$ 150 - 200MOQ: 1 Set -
High Quality Stainless Steel and Hot Dip Galvanized BDF Water Storage Tank With Best PriceUS$ 150 - 200MOQ: 1 Set
-
Hot Dipped Galvanized Steel Water Tank / HDG Water Storage TankUS$ 150 - 150MOQ: 1 Cubic Meter
-
GRP Water Tank Used for Water TreatmentUS$ 200 - 200MOQ: 10 Cubic Meters
-
SMC/FRP/GRP Water TankUS$ 150 - 200MOQ: 1 Cubic Meter
Galvanized water tank
Material:The panel is made of Q235 steel by hydraulic punching machine;
The size of the panel is :1220*1220mm, 1000*1000mm,1000*500mm, 500*500mm;
The thickness of the panel mainly includes: 5mm, 4.5mm, 3mm, 2.5mm, 2mm, 1.5mm. It is different according to the tank dimension.
Flanges:The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method:All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.

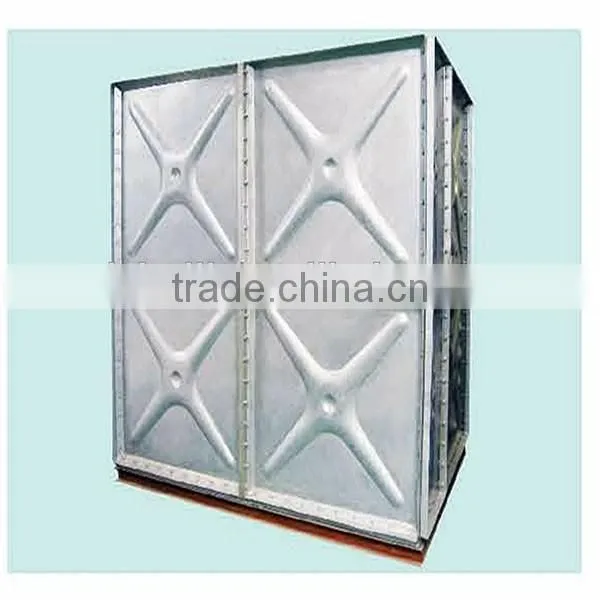

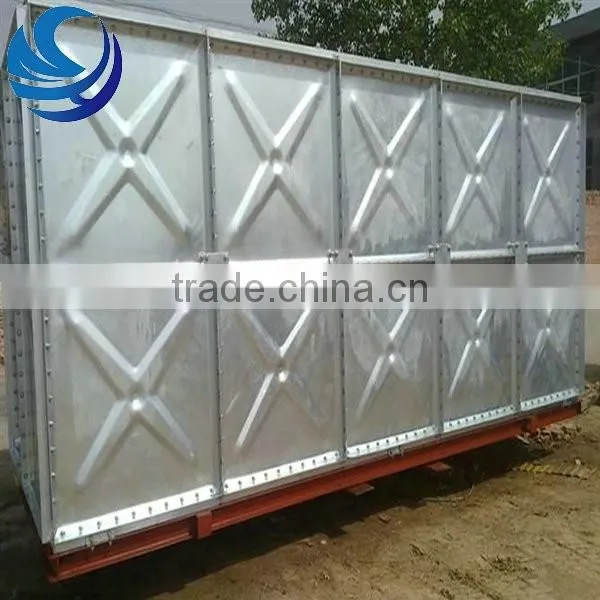

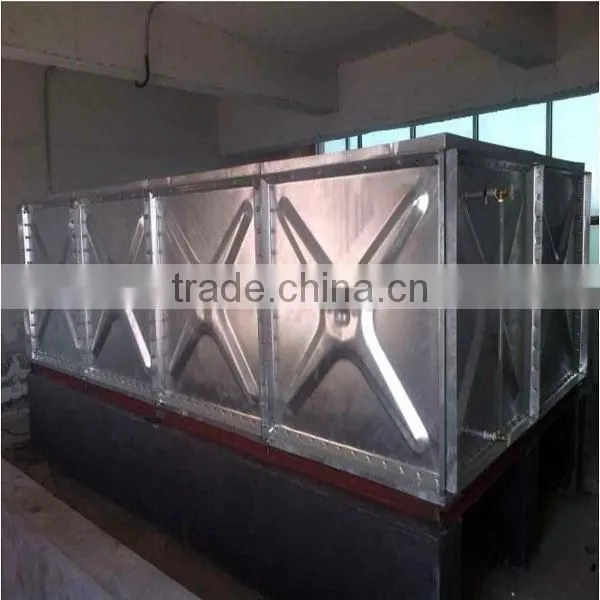

hot dip galvanized steel water tank
hot dip galvanized steel water tank
hot dip galvanized steel water tank

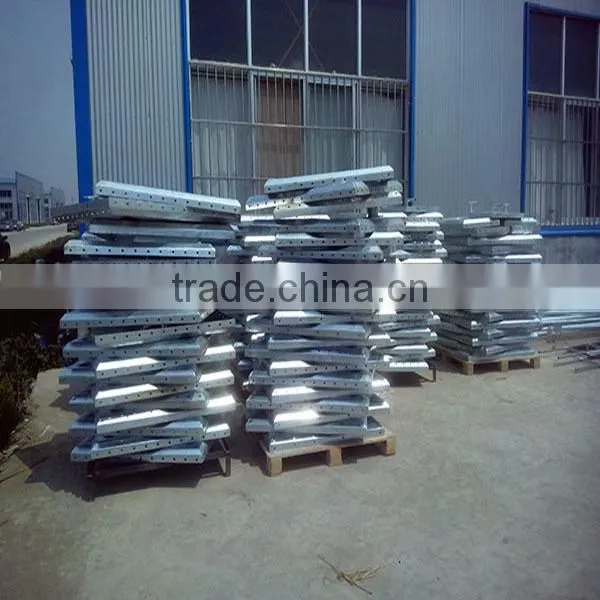

Panel show
Accessories
1 Bolt. nut & washers
hot-dipped galvanized material.
2 Sealing material
Non-toxic P.V.C foam tape shall be used in between the joints.
3 Covers
The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material according to the requirement.
4 Ladders and Level Indicator
Internal & external ladder shall be made of hot-dipped galvanized material.

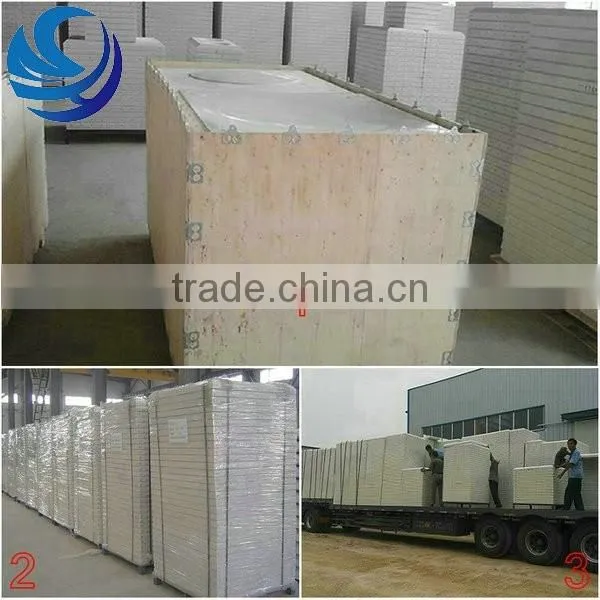

Packaging and shipping
1. plywood 2. iron bracket 3. naked package
Our company
Dezhou Huili Environmental Technology Co.,Ltd is a professional production enterprise specializing in the production and design of the water tank .
Company's products include: fiber glass reinforced plastic water tank, stainless steel watertank,enamel steel water tank, hot dip galvanized steel water tank, gush-paint steel water tank and undergroud water tank .Company tenets: quality first, customer first and best credibility!The same price with best quality,the same quality with highest reputation!
The company has a professional after-sale service institution, each service branch are provided with a fixed installation and after sale serviece personnel to ensure the user to get a response from us in the first time.
FAQ
1.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our
technician will figure out what the problem may be, according to client s feedback.
Parts will be replaced for free if the problems are caused by quality fault.
2.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
3.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non-standard
water tank and customized water tank according to client s specific requirements, it
would be 15 to 30 days.
4.How's the payment?
Telegraphic Transfer(T/T).
5.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt
Save space as much as possible for container loading
