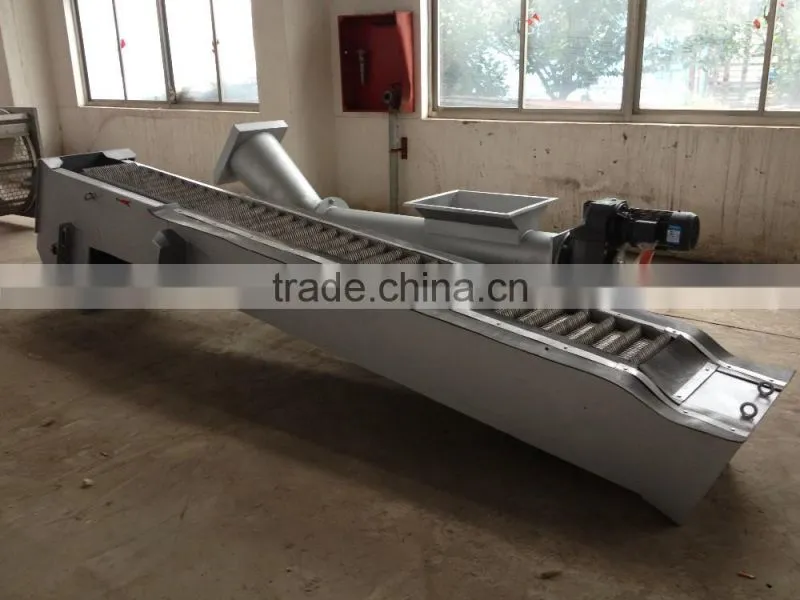

Product Application of Rotary Bar Screen

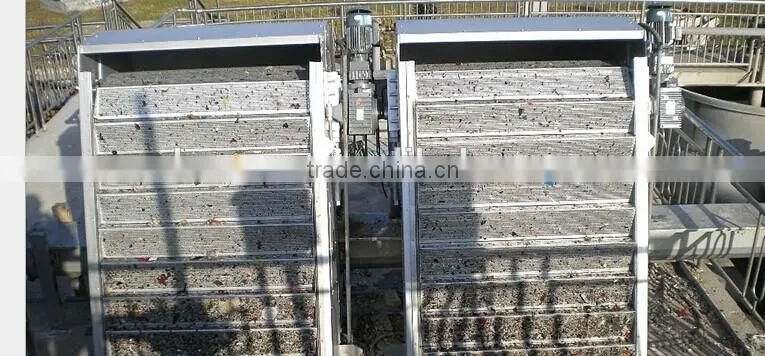

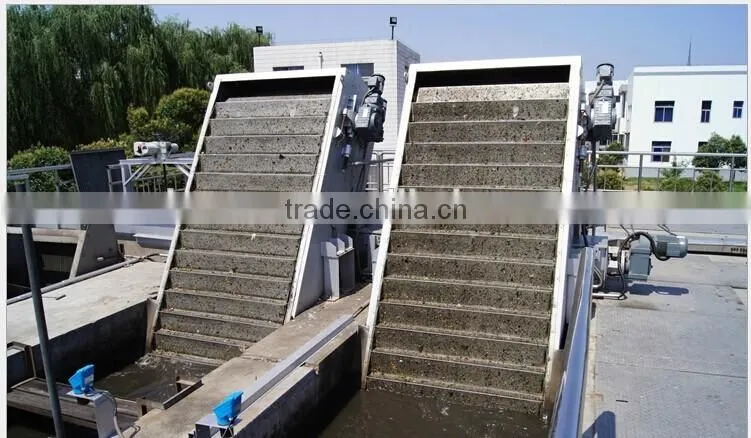

The rotary bar screen is installed at the inlet of pump station or water treatment system. It is composed of pedestal, specific plough shaped tines,rake plate, elevator chain and motor reducer units etc. It is assembled into different space according to different flow rate or channel width.The rake plate ,which is fixed in the elevator chain,starts clockwise movement under the drive of the driving device, hooking residue from down to up together with the elevator chain. Under the effect of steering guide and guiding wheel, residue gets discharged by gravity while the rake plate reached the top of bar screen. The rake tines moved to the bottom of the equipment and starts to work for another round, residue moves continuously.
Main Features
1) High-Automaticity, good separation effect, low power, no noise, good anti-corrosion.
2) Continuous and stable running with no attendance.
3) There is overload safety device. It can cut the shear pin when screen is overloaded.
4) Excellent self-cleaning ability so due to good structure.
5) Reliable and safe operation so it just need a little maintenance work.
Machine Parts

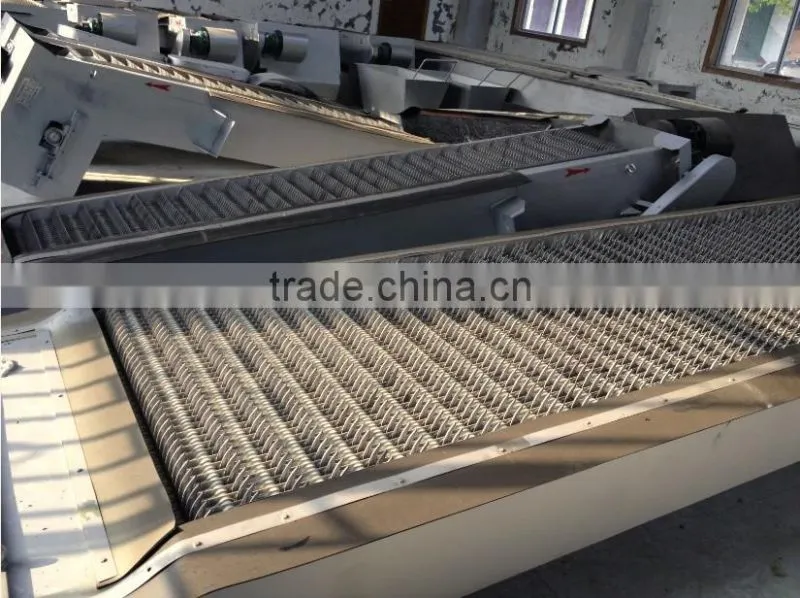

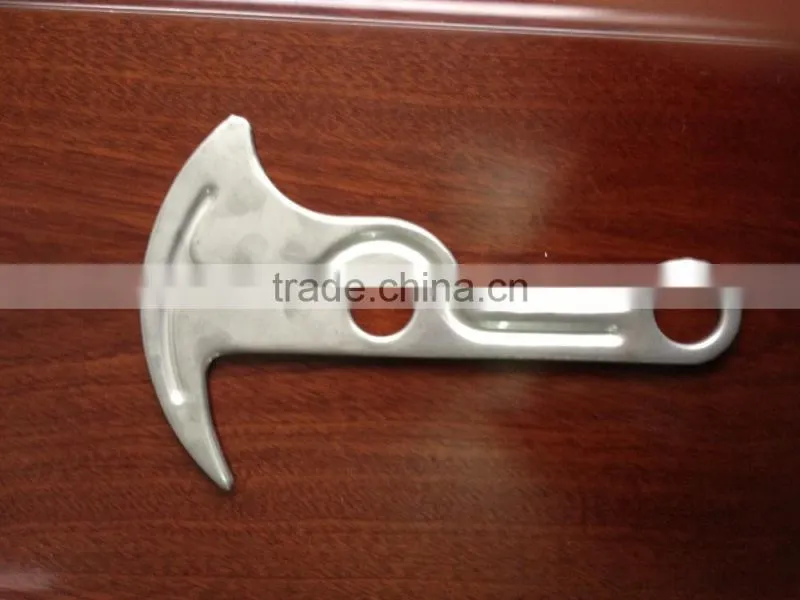

Name: Bar Screen Rake
Material: Stainless Steel 304
Good intensity
Main Features

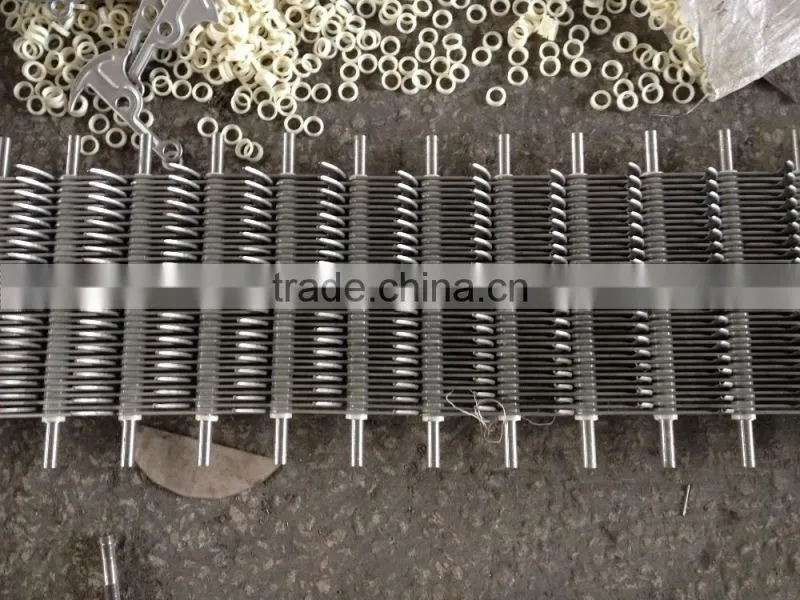

Name: Bar Screen Rake String
Material: Stainless Steel 304
Neatly aligned rakes

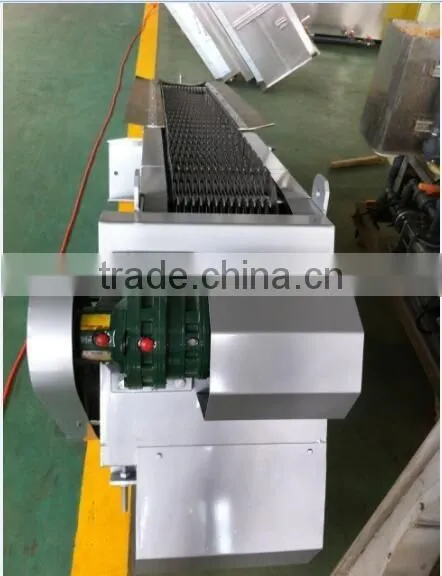

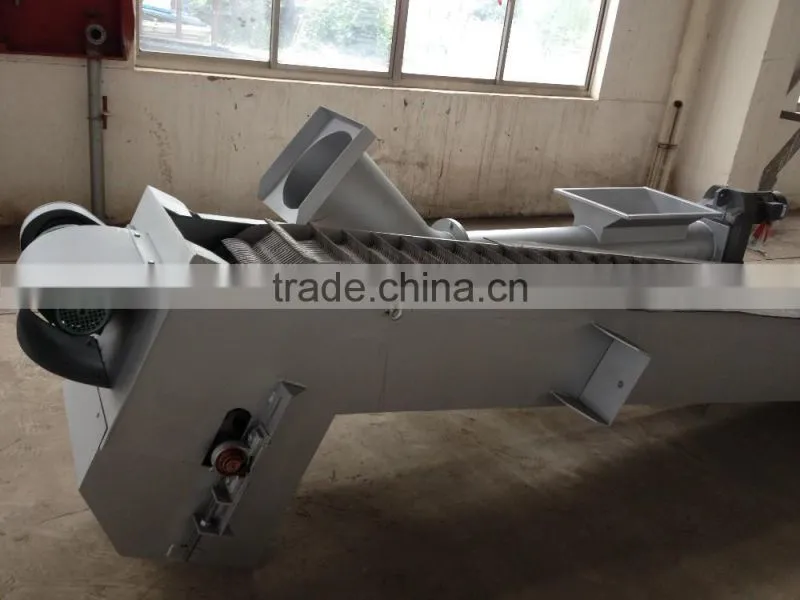

Motor Cover
To protect the motor from possible damage. So the screen can run more stable and the service life is longer.
