Compact Chemical Waste Water Treatment Plant with High Quality Effluent
- 5 Unit / Units per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Benenv | Model Number: | BN |
Product Description

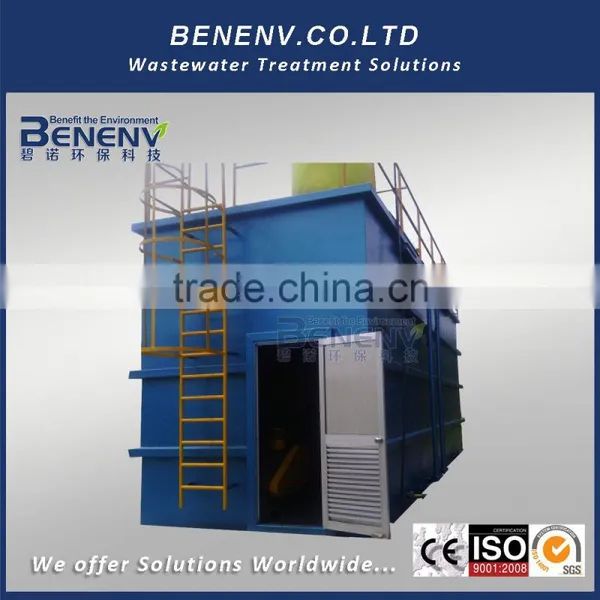

Compact Chemical Waste Water Treatment Plant with High Quality Effluent
BENENV Package Wastewater Treatment Plant is recognized at home and abroad for its products and technologies to treat wastewater to a safe sanitary water effluent quality discharge meeting and/or exceeding effluent standards recommended by the US Environmental Protection Agency.
BENENV design and manufacture compact chemical waste water treatment plant with high quality effluent.
BENENV chemical waste water treatment plant includes:
- Balance tank (optional)
- Bar Screen (optional)
- Anaerobic tank (optional)
- Anoxic tank
- Aerobic tank
- Membrane bioreactor MBR system
- PLC control system
- Sludge tank (optional)
- Effluent tank (optional)
- Disinfection tank (optional)
Membrane Bioreactor MBR sheet (pcs.)
Parameters | BN90 | BN150 |
Effective membrane area (m2) | 0.9 | 1.5 |
Overall size(L*B*H)(mm) | 1030*510*6 | 1650*510*6 |
Membrane pore size(μm) | 0.2~0.4 | |
Membrane material | PTFE/PVDF | |
Water yield (L/pcs·day) | 450~630 | 750~1050 |
Effluent turbidity (NTU) | <1.0 | |
Suspended solids in effluent (SS,mg/L) | <1.0 |
Model (All customized models are available by online inquiry)
Parameters | BN90-100 | BN90-150 | BN150-100 | BN150-150 |
Number of membrane elements (pcs.) | 100 | 150 | 100 | 150 |
Effective membrane area (m2) | 90 | 135 | 150 | 225 |
Treatment capacity (m3/d) | 45 | 67.5 | 75 | 112.5 |
Aeration capacity(m3/min) | 1~1.2 | 1.5~1.8 | 1.5~2 | 2.25~3 |
Frame material | Stainless steel 304 | |||
Diffuser pipe material | Stainless steel 304/UPVC/ABS | |||
Collection pipe material | UPVC |
- Easy to clean
- High efficiency / Low maintenance
- Membrane modules are back flushable
- Yield 60-80% less sludge than conventional system
- Compact design – footprint 75% smaller than conventional
- Possibility of direct and indirect water reuse
1. [Q]How to buy my ideal products?
[A] Provide us with details about your water sources, water quality, flow rate and ground area, we will analyze for you and recommend you the best water treatment solution.
2. [Q]How to change the membrane sheet?
[A]Due to unique design of the flat membrane module, flat membrane can be replaced one sheet for one time, without changing support.
3. [Q]How to clean/wash the membrane sheet?
[A]You can clean the membrane cartridges in-situ: stop the blower and switch valves, pour the chemical for 10 minutes, keep intact for a few hours.
4. [Q]How often should the membrane be washed?
[A]Usually chemical cleaning should be carried out every half a year.
5. [Q]How to install after the equipment arriving destination?
[A]We will provide detailed illustrations to you. If necessary, we will send technicians to help you.
BENENV has clients in over 37 countries!
