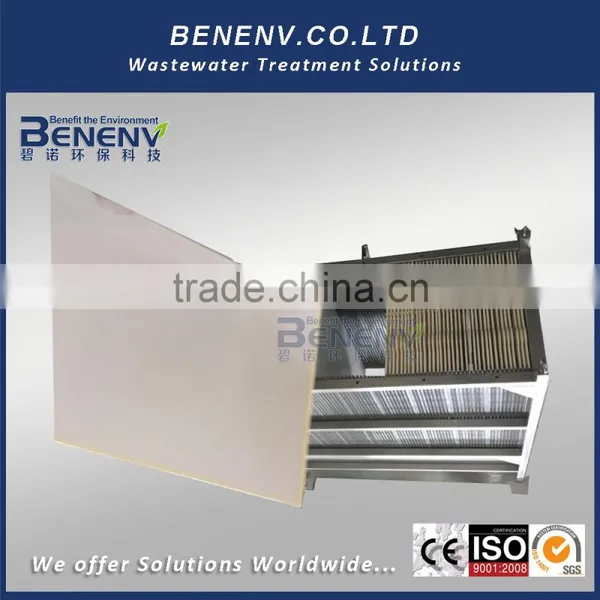

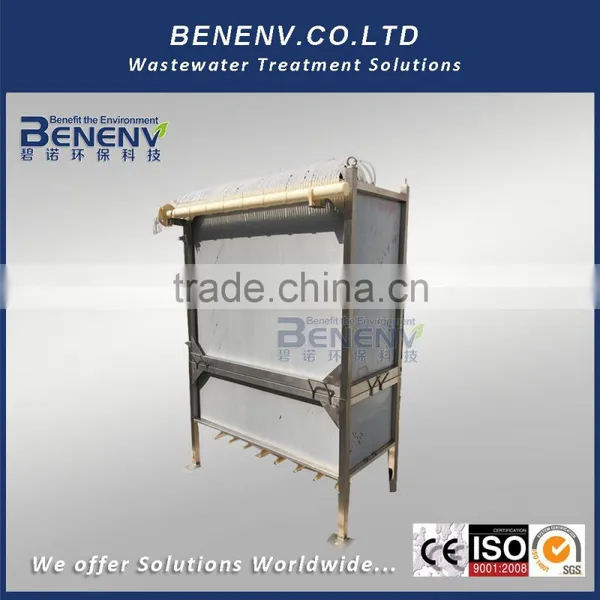

PVDF and PTFE MBR Wastewater Treatment Environment Protection
The Membrane Bioreactor MBR is a combined technology of activated sludge process and membrane solid-liquid separation process. BENENV design and manufacture PVDF and PTFE MBR Wastewater Treatment Environment Protection.
Membrane Bioreactor MBR sheet (pcs.)
Parameters |
BN90 |
BN150 |
Effective membrane area (m2) |
0.9 |
1.5 |
Overall size(L*B*H)(mm) |
1030*510*6 |
1650*510*6 |
Membrane pore size(μm) |
0.2~0.4 |
|
Membrane material |
PTFE/PVDF |
|
Water yield (L/pcs·day) |
450~630 |
750~1050 |
Effluent turbidity (NTU) |
<1.0 |
|
Suspended solids in effluent (SS,mg/L) |
<1.0 |
|
Model (All customized models are available by online inquiry)
Parameters |
BN90-100 |
BN90-150 |
BN150-100 |
BN150-150 |
Number of membrane elements (pcs.) |
100 |
150 |
100 |
150 |
Effective membrane area (m2) |
90 |
135 |
150 |
225 |
Treatment capacity (m3/d) |
45 |
67.5 |
75 |
112.5 |
Aeration capacity(m3/min) |
1~1.2 |
1.5~1.8 |
1.5~2 |
2.25~3 |
Frame material |
Stainless steel 304 |
|||
Diffuser pipe material |
Stainless steel 304/UPVC/ABS |
|||
Collection pipe material |
UPVC |
|||
- Easy to clean
- High efficiency / Low maintenance
- Membrane modules are back flushable
- Yield 60-80% less sludge than conventional system
- Compact design – footprint 75% smaller than conventional
- Possibility of direct and indirect water reuse
1. [Q]How to buy my ideal products?
[A] Provide us with details about your water sources, water quality, flow rate and ground area, we will analyze for you and recommend you the best water treatment solution.
2. [Q]How to change the membrane sheet?
[A]Due to unique design of the flat membrane module, flat membrane can be replaced one sheet for one time, without changing support.
3. [Q]How to clean/wash the membrane sheet?
[A]You can clean the membrane cartridges in-situ: stop the blower and switch valves, pour the chemical for 10 minutes, keep intact for a few hours.
4. [Q]How often should the membrane be washed?
[A]Usually chemical cleaning should be carried out every half a year.
5. [Q]How to install after the equipment arriving destination?
[A]We will provide detailed illustrations to you. If necessary, we will send technicians to help you.
BENENV has clients in over 37 countries!
