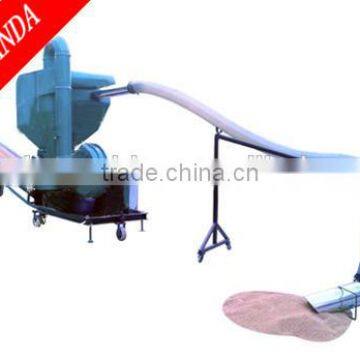

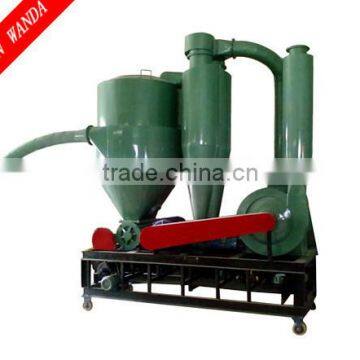

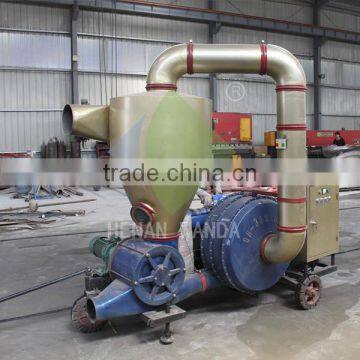

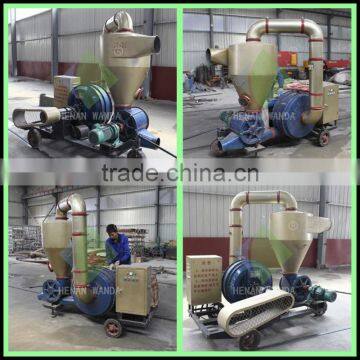

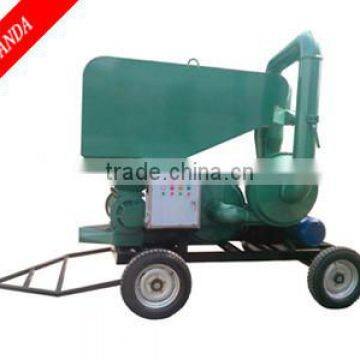

Help CenterPneumatic Grain Conveyor Elevator With Conveyor Belt
Related Products
-
Pneumatic Grain Conveyor ElevatorUS$ 2,000 - 7,000MOQ: 1 Set -
High Quality and Reasonable Price Combined Oil Press 6YL-120AUS$ 1 - 5,000MOQ: 1 Set
-
6YL-165 Mini Easy Operation Soybeans Oil PressUS$ 1,989 - 3,799MOQ: 1 Set
-
6YL-130 Small Power and High Quality Oil Press MachineUS$ 1 - 5,000MOQ: 1 Set
-
Full-automatic Vertical Industry Sand Bagging and Sewing MachineUS$ 4,000 - 8,000MOQ: 1 Set
1, The operation mode is diversiform, have a single suction operation mode, single delivery operation mode mixing, suction pressure, can undertake choosing according to different customers and different requirements.
2, The machine features flexible, fast and convenient assembly, compact structure, complete function, the whole machine to give full consideration to the user requirements from the design.
3, equipment has convenient, quick, convenient, save people, save Labour, etc.
4, less dust pollution, convenient operation.
5, just put the pipeline on-demand distribution, can be horizontal, vertical, inclined, etc.
6 ,High pressure, long transmission distance, high head, small volume, low noise, low energy consumption.
7 ,C is rough for grain belt filter cleaning and dewatering.
Machine Model |
QH-3 |
QH-5 |
QH-10 |
QH-15 |
QH-20C |
QH-30C |
Convey measure (t/h) |
3 |
5 |
10 |
15 |
20 |
30 |
Power of Air Blower (KW) |
5.5 |
7.5 |
11 |
15 |
22 |
37 |
Power of Close the wind machine(KW) |
0.75 |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
total power(KW) |
6.25 |
8.25 |
11.75 |
16.1 |
23.1 |
38.5 |
Primary motor type |
Y132S1-2 |
Y132S2-2 |
Y160M1-2 |
Y160M2-2 |
Y180M-2 |
Y200L2-2 |
Closed wind motor model |
Y90s-6 |
Y90s-6 |
Y90s-6 |
Y90L-6 |
Y90L-6 |
Y100L-6 |
fan rotational speed (R/Min) |
3300 |
3600 |
4100 |
3700 |
4100 |
4100 |
Closed ventilation speed (R/Min) |
60 |
60 |
60 |
60 |
60 |
60 |
Air Pressure (water column/mm) |
940 |
1000 |
1500 |
1600 |
2200 |
3300 |
air mass flow(m3/H) |
780 |
800 |
1000 |
1600 |
1800 |
1800 |
airflow velocity(m/s) |
26 |
24 |
24 |
25 |
25 |
25 |
Feed pipe diameter(mm) |
124 |
124 |
150 |
150 |
160 |
160 |
Pipe diameter (mm) |
70 |
100 |
124 |
150 |
160 |
160 |
|
Horizontal maximum transmission distance(m) |
20 |
30 |
50 |
70 |
120 |
70 |
Maximum distance(m) |
6.8 |
8.5 |
10 |
20 |
30 |
50 |
Max.lift head (m) |
5 |
5 |
8 |
12 |
18 |
30 |
Total weight(KG) |
400 |
415 |
460 |
530 |
600 |
900 |
Dimension(length * width * height) mm |
1780* 1050*1550 |
1780* 1058*1550 |
1780* 1058*1550 |
2080* 1148*1800 |
2320* 1320*2720 |
2380* 1600*2720 |
Contact us freely, when you have any demand about wood pellet machine.
