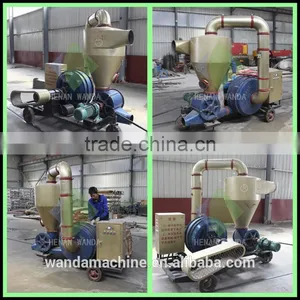

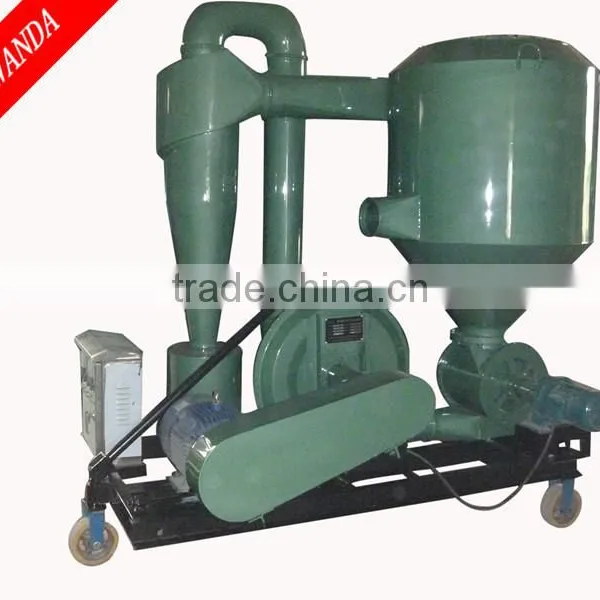

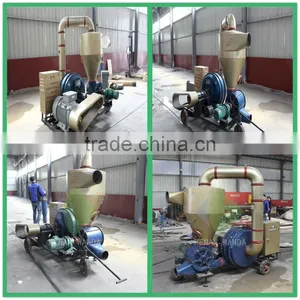

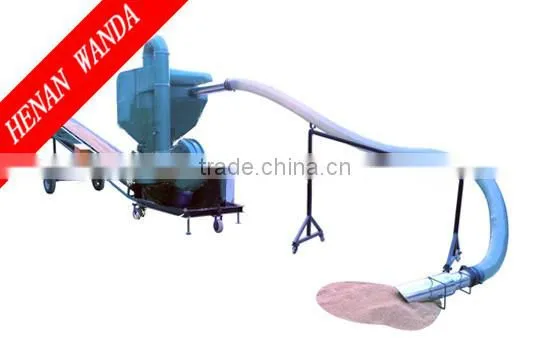

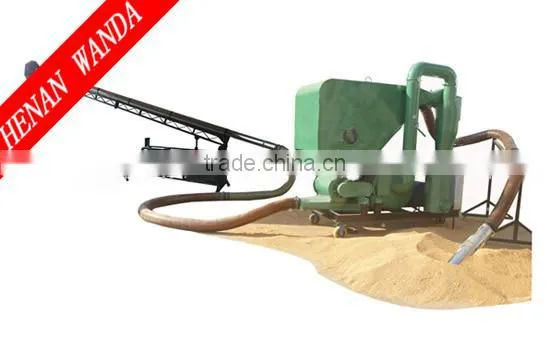

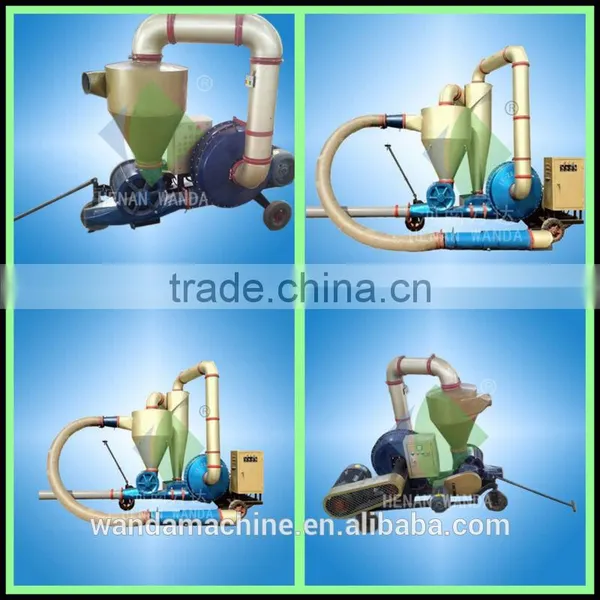

pneumatic grain conveyor elevator

FOB Price

USD $2,000 - $7,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port China Main Ports
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other, pneumatic	Material:	Stainless Steel
Material Feature:	Heat Resistant	Structure:	Belt Conveyor	Place of Origin:	Henan, China
Brand Name:	wanda	Model Number:	QH seriers	Power(W):	11.75
Dimension(LWH):	178010581550	Certification:	CE&ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

1, The operation mode is diversiform, have a single suction operation mode, single delivery operation mode mixing, suction pressure, can undertake choosing according to different customers and different requirements.

2, The machine features flexible, fast and convenient assembly, compact structure, complete function, the whole machine to give full consideration to the user requirements from the design.

3, equipment has convenient, quick, convenient, save people, save Labour, etc.
4, less dust pollution, convenient operation.
5, just put the pipeline on-demand distribution, can be horizontal, vertical, inclined, etc.

6 ,High pressure, long transmission distance, high head, small volume, low noise, low energy consumption.

7 ,C is rough for grain belt filter cleaning and dewatering.

Main Data

Machine Model	QH-3	QH-5	QH-10	QH-15	QH-20C	QH-30C
Convey measure (t/h)	3	5	10	15	20	30
Power of Air Blower (KW)	5.5	7.5	11	15	22	37
Power of Close the wind machine(KW)	0.75	0.75	0.75	1.1	1.1	1.5
total power(KW)	6.25	8.25	11.75	16.1	23.1	38.5
Primary motor type	Y132S1-2	Y132S2-2	Y160M1-2	Y160M2-2	Y180M-2	Y200L2-2
Closed wind motor model	Y90s-6	Y90s-6	Y90s-6	Y90L-6	Y90L-6	Y100L-6
fan rotational speed (R/Min)	3300	3600	4100	3700	4100	4100
Closed ventilation speed (R/Min)	60	60	60	60	60	60
Air Pressure (water column/mm)	940	1000	1500	1600	2200	3300
air mass flow(m3/H)	780	800	1000	1600	1800	1800
airflow velocity(m/s)	26	24	24	25	25	25
Feed pipe diameter(mm)	124	124	150	150	160	160
Pipe diameter (mm)	70	100	124	150	160	160
Horizontal maximum transmission distance(m)	20	30	50	70	120	70
Maximum distance(m)	6.8	8.5	10	20	30	50
Max.lift head (m)	5	5	8	12	18	30
Total weight(KG)	400	415	460	530	600	900
Dimension(length * width * height) mm	1780* 1050*1550	1780* 1058*1550	1780* 1058*1550	2080* 1148*1800	2320* 1320*2720	2380* 1600*2720
