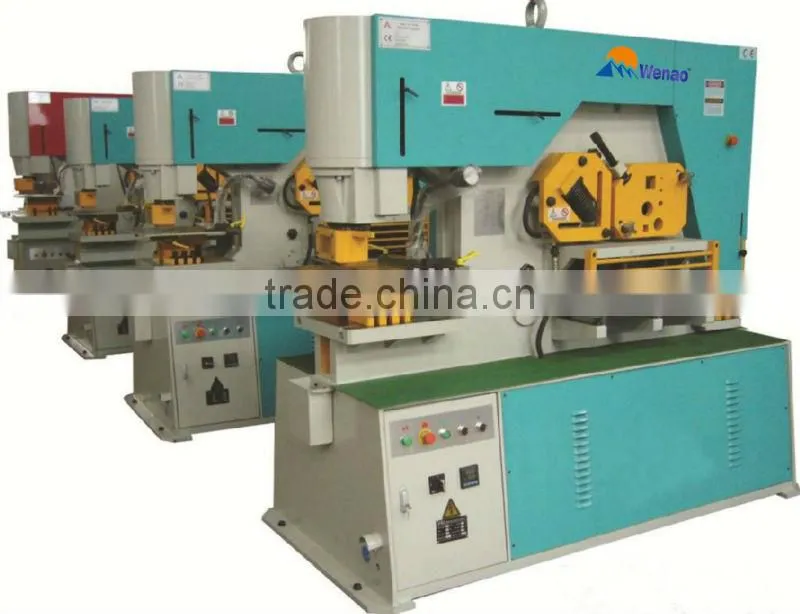

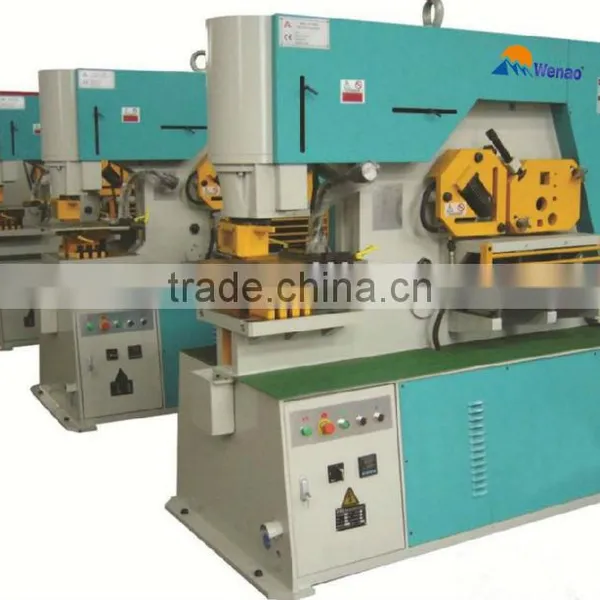

Q35Y-25 Hydraulic Ironworker / iron worker Q35Y series / hydraulic machine for punching and shearing

Specifications

Iron worker Q35Y series
1. Shearing machine
2. Cutting machine
3. The ironworker adopts mechanical driving

Q35Y-25 Hydraulic Ironworker / iron worker Q35Y series / hydraulic machine for punching and shearing, Iron worker Q35Y series, Ironworker machine, Mechanical ironworker



Nantong Wenao Import & Export Co., LTD which is a medium-size national secondary enterprise. Our company specializes in manufacturing all kinds of metal forming machines, such as mechnical/hydraulic puching and shearing machine, hydraulic (CNC) swing shearing machine, gate shearing machine, hydraulic/CNC plate bending machine, etc.





1.Hydraulic punching machine Robust and accurate steel frame



2.Hydraulic punching machine Large punch table with scales



3. Hydraulic punching machine Removable bolster for punching flanges and channel and beam



4. Hydraulic punching machine 2 independent hydraulic cylinders



5.Hydraulic punching machine 2 shielded foot controls ironworker



6.Hydraulic punching machine 2 Separate Die Openings for oversized punching



7. Hydraulic punching machine  5 working stations for wide applications



8. Hydraulic punching machine  Power inching on all 5 work stations cutting machine



9. Hydraulic punching machine Plate shear support/table and notching table



10. Hydraulic punching machine Adjustable stroke controls with indicators on both cylinders



11.Hydraulic punching machine  punching machine: Movable work light



12. Hydraulic punching machine Overload protection on hydraulic system



13. Hydraulic punching machine Electric backgauge punching machine



14. Hydraulic punching machine Optional bending attachment cutting machine



15.  Hydraulic punching machine Optional 5 sets punches and dies



Q35Y hydraulic ironworker for punching and shearing





 Summary:



It adopts hydraulic driving system and is the latest puching and shearing machine in our country,Variousmetalplates,square steel,Round steel,,angle steel,channel steel and I-iron can be cut,punched and notched by this machine.It is also equipped with a stop device for cutting.





Model		Q35Y-12	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure(Ton)		40	63	80	120	165
Max.cutting thickness(mm)		12	16	20	25	30
Tensile strength(N/mm2)		≤450	≤450	≤450	≤450	≤450
Cutting angle		7°	7°	8°	8°	8°
Shearing size of one stroke(mm)		12x220 6x360	16x250 8x400	20x330 10x480	25x330 16x600	30x355 6x360
Ram stroke(mm)		80	80	80	80	80
Number of strokes(T/M)		8	8	8	6	15
Throat depth(mm)		250	300	355	400	600
Max.punching thickness		12	16	20	25	26
Punching diameter(mm)		20	25	30	35	38
Max.punching diameter(mm)		25	32	40	50	50
Punching thickness(mm)		8	10	12	15	20
Main power(kw)		3	4	5.5	7.5	11
Overall dimensions(LxWxH(mm))		1480x760x1620	1640x780x1770	1880x780x1900	2355x960x2090	2680x1040x2300
Weight of machine(kg)		1400	1800	2400	4670	6450
A special order for the channel moulds needed.
Profile	Round Bar	Square Bar	Equal Angle	T-bar	Joist	Channel
			90°or 45°shearing	90°or 45°shearing
Q35Y-12	30	25x25	110x110x8 40x40x5	110x110x10 40x40x5	110x65x4	100x46x4
Q35Y-16	45	40x40	125x125x12 50x50x6	120x120x12 50x50x6	126x74x5	126x53x5.5
Q35Y-20	50	50x50	140x140x12 50x50x6	140x140x12 50x50x6	160x86x6	160x60x6.5
Q35Y-25	60	50x50	160x160x14 60x60x6	160x160x14 60x60x6	200x102x9	200x75x9
Q35Y-30	65	55x55	180x180x16 60x60x6	180x180x16 60x60x6	280x124x10.5	280x86x11.5
