Help CenterQ35Y Series Hydraulic Combined Ironworkers / Iron Worker / Metal Fabrication
Related Products
Specifications
Q35Y series hydraulic combined Ironworkers1.Shearing machine
2.Cutting machine
3.The ironworker adopts mechanical driving
Q35Y series hydraulic combined Ironworkers / iron worker / metal fabrication, Q35Y series hydraulic combined Ironworkers, Ironworker machine, Hydraulic combined ironworkers
Nantong Wenao Import & Export Co., LTD which is a medium-size national secondary enterprise. Our company specializes in manufacturing all kinds of metal forming machines, such as mechnical/hydraulic puching and shearing machine, hydraulic (CNC) swing shearing machine, gate shearing machine, hydraulic/CNC plate bending machine, etc.
Specifications :
Q35Y series hydraulic combined Ironworkers
Punch,Cut,Bend and Notch
Hydraulic system
CE & ISO
Manufacturer
Detailed Product Description :
1.Robust and accurate steel frame
2.Removable bolster for punching flanges and channel and beam
3.Large punch table with scales
4.2 independent hydraulic cylinders
5.2 shielded foot controls
6.2 separate die openings for oversizes punching
7.5 working stations for wide applications
8.Power inching on all 5 works stations
9.Plate shear support/table and notching table
10.Adjustable stroke controls with indicators on both cylinders
11.Movable work light as standard
12.Overload protection on hydraulic system
13.Electric backgauge
14.Optional bending attachment

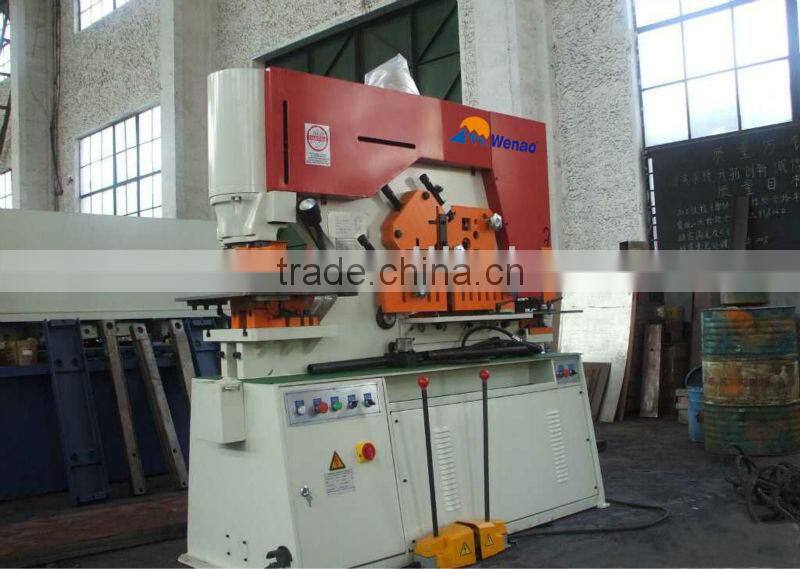

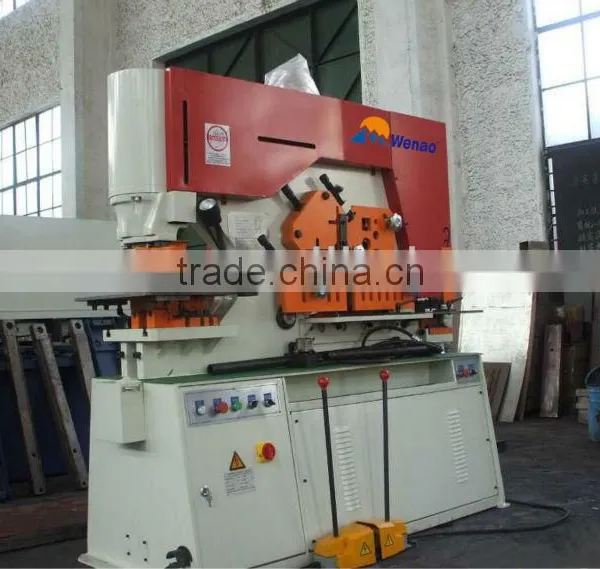

Q35Y hydraulic ironworker for punching and shearing
It adopts hydraulic driving system and is the latest puching and shearing machine in our country,Variousmetalplates,square steel,Round steel,,angle steel,channel steel and I-iron can be cut,punched and notched by this machine.It is also equipped with a stop device for cutting.
| Model | Q35Y-12 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | |
| Pressure(Ton) | 40 | 63 | 80 | 120 | 165 | |
| Max.cutting thickness(mm) | 12 | 16 | 20 | 25 | 30 | |
| Tensile strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | |
| Cutting angle | 7° | 7° | 8° | 8° | 8° | |
| Shearing size of one stroke(mm) | 12x220 6x360 | 16x250 8x400 | 20x330 10x480 | 25x330 16x600 | 30x355 6x360 | |
| Ram stroke(mm) | 80 | 80 | 80 | 80 | 80 | |
| Number of strokes(T/M) | 8 | 8 | 8 | 6 | 15 | |
| Throat depth(mm) | 250 | 300 | 355 | 400 | 600 | |
| Max.punching thickness | 12 | 16 | 20 | 25 | 26 | |
| Punching diameter(mm) | 20 | 25 | 30 | 35 | 38 | |
| Max.punching diameter(mm) | 25 | 32 | 40 | 50 | 50 | |
| Punching thickness(mm) | 8 | 10 | 12 | 15 | 20 | |
| Main power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | |
| Overall dimensions(LxWxH(mm)) | 1480x760x1620 | 1640x780x1770 | 1880x780x1900 | 2355x960x2090 | 2680x1040x2300 | |
| Weight of machine(kg) | 1400 | 1800 | 2400 | 4670 | 6450 | |
| A special order for the channel moulds needed. | ||||||
| Profile | Round Bar | Square Bar | Equal Angle | T-bar | Joist | Channel |
| 90°or 45°shearing | 90°or 45°shearing | |||||
| Q35Y-12 | 30 | 25x25 | 110x110x8 40x40x5 | 110x110x10 40x40x5 | 110x65x4 | 100x46x4 |
| Q35Y-16 | 45 | 40x40 | 125x125x12 50x50x6 | 120x120x12 50x50x6 | 126x74x5 | 126x53x5.5 |
| Q35Y-20 | 50 | 50x50 | 140x140x12 50x50x6 | 140x140x12 50x50x6 | 160x86x6 | 160x60x6.5 |
| Q35Y-25 | 60 | 50x50 | 160x160x14 60x60x6 | 160x160x14 60x60x6 | 200x102x9 | 200x75x9 |
| Q35Y-30 | 65 | 55x55 | 180x180x16 60x60x6 | 180x180x16 60x60x6 | 280x124x10.5 | 280x86x11.5 |
