Hydraulic iron worker1. Hydraulic Transmission
2. Two operating foot pedal
3. Easy to operate

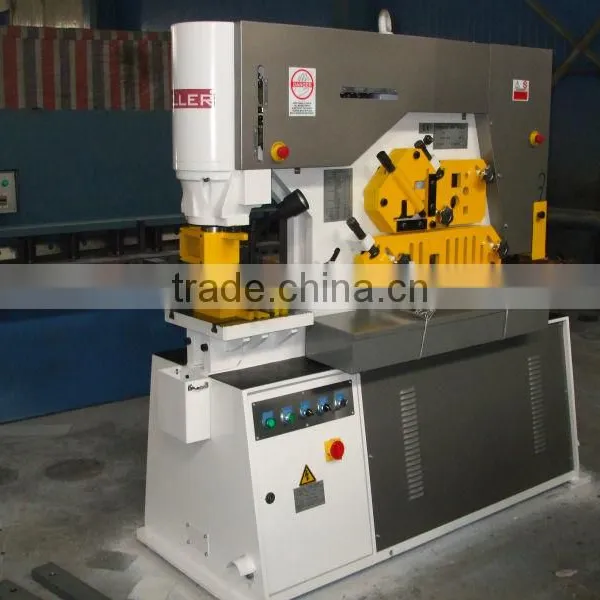

Hydraulic iron worker
- Double cylinders hydraulic punch & shear machine
- Five independent stations for punch, shear, notcher, section cut
- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications
- Universal die bolster, easy change punch holder fitted, punch adapters supplied
- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal
Parameter:
Model |
H-66 |
H-90 |
H-120 |
H-165 |
H-200 |
Pressure |
66 |
90 |
120 |
165 |
200 |
Max. cutting thickness (mm) |
16 |
20 |
25 |
30 |
35 |
Max. Plate strength (N/mm2) |
450 |
450 |
450 |
450 |
450 |
Shearing size of one stroke (mm) |
16*250 8*400 |
20*330 10*480 |
25*330 10*600 |
30*335 20*600 |
35*550 15*700 |
Ram stroke (mm) |
80 |
80 |
80 |
80 |
80 |
Cycles/min (20mm stroke) |
28 |
28 |
28 |
27 |
25 |
Throat depth (mm) |
300 |
355 |
400 |
600 |
600 |
Punching capacity |
22*20 |
26*22 |
31*27 |
36*32 |
40*35 |
Max. round bar shear |
45 |
50 |
60 |
65 |
65 |
Max. square bar shear |
40*40 |
50*50 |
50*50 |
55*55 |
60*60 |
Max. channel shear |
126*53 |
160*60 |
200*75 |
280*86 |
320*88 |
Max. I beam shear |
126*74 |
160*88 |
200*102 |
280*124 |
320*130 |
At 90 degree shearing |
125*12 |
140*12 |
160*14 |
180*16 |
200*20 |
At 45 degree shearing |
60*6 |
50*5 |
70*7 |
50*5 |
60*8 |
Power of main motor (kw) |
4 |
5.5 |
7.5 |
11 |
15 |
Overall dimension (L*W*H)mm |
1640*730*1770 |
1860*800*1900 |
2355*960*2090 |
2680*1040*2300 |
2795*1040*2300 |
Weight of machine |
1800 |
2300 |
4800 |
6800 |
7500 |
