iron worker machine1. Hydraulic Transmission
2. Two operating foot pedal
3. Easy to operate

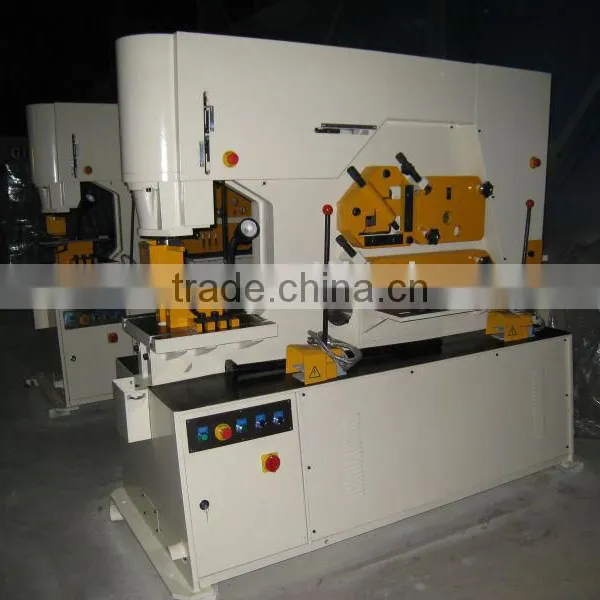

iron worker machine

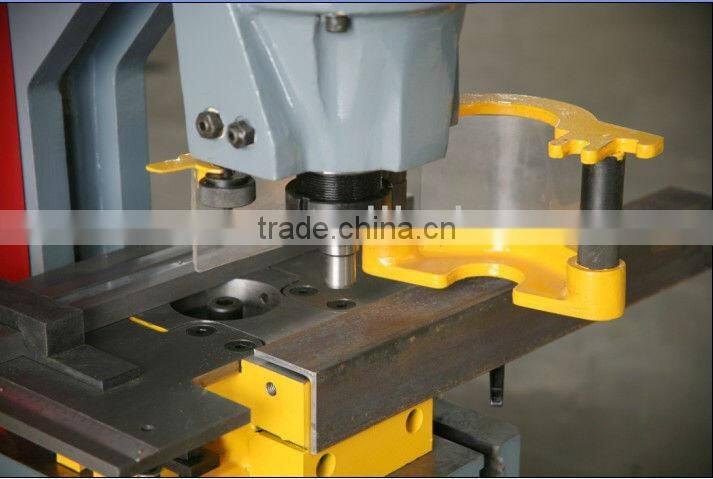

Punch Large punch bed area, removable front block and quick changing design for punching pin

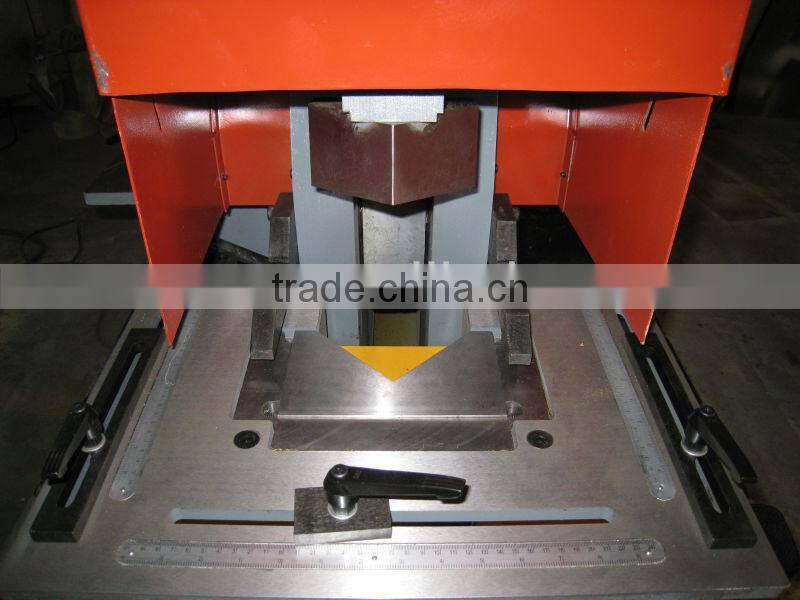

Angle station
This station provides large capacity angle cutting at 90° and 45°. Angles between 45° and 90° can be achieved by first cutting at 90° and then flange in the shearing station.

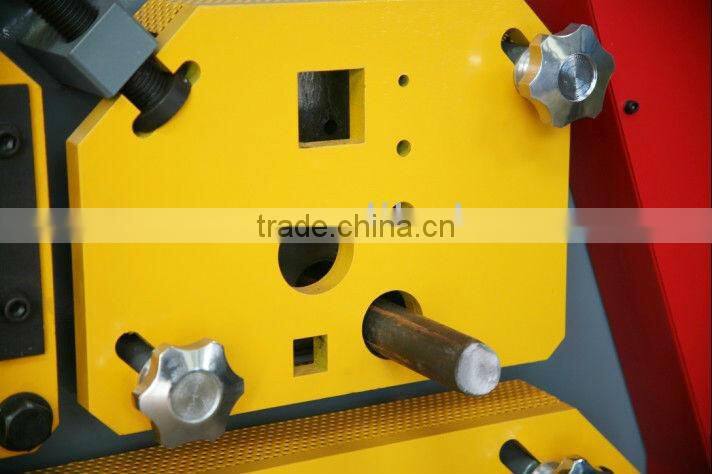

Section cutting station
For round and square bars, channel, joist, T-sections and may other special profiles.

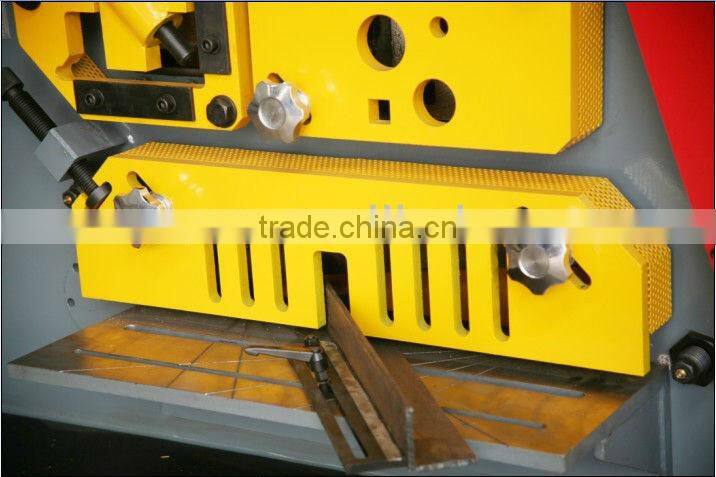

Shearing
The shearing unit is fitted with a simple robust hold-down which is adjustable to any thickness of material within the cutting capacity of the machine.
Feed table with adjustable guides.

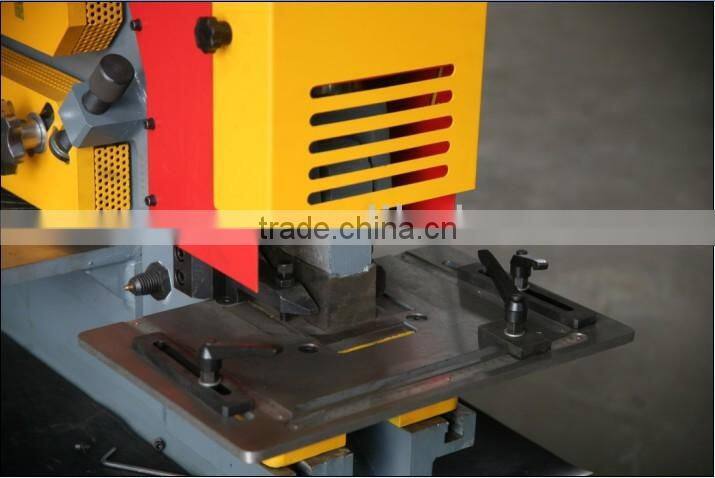

Notching station
The notching station is fitted as standard with a rectangular notch table with adjustable stops, allowing repetitive positioning.
Metform machines are supplied with standard tooling including repetition support tables at punch, Comprehensive safety guards are fitted as standard on all work stations.

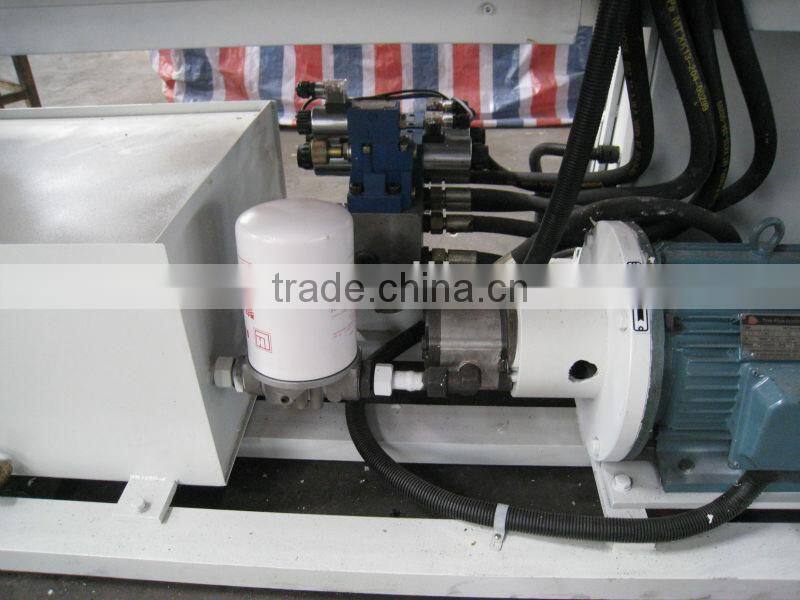

The hydraulic system is activated by two shielded foot controls for two operator utilization. one operating the punch end cylinder, the other operating the shear end cylinder.
The shear cylinder provides the power to the three shearing and the notch stations.
Easy for maintenance with centralized lubrication system.
Metform Model Q35Y-12, Q35Y-14, Q35Y-16, Q35Y-20, Q35Y-25 and Q35Y-30 are available for cutting different steel size.
Main Technical data
Model:
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Pressure(Ton) |
55 |
75 |
110 |
140 |
Max.cutting thickness(mm) |
16 |
20 |
25 |
30 |
Plate strength(N/mm2) |
≤450 |
≤450 |
≤450 |
≤450 |
Cutting angle(degree) |
7° |
8° |
8° |
8° |
Sheraing size of one stroke(mm) |
16*250 8*400 |
20*330 10*480 |
25*330 16*600 |
30*355 20*600 |
Slider stroke(mm) |
80 |
80 |
80 |
80 |
Number of strokes(cpm) |
8 |
8 |
6 |
6 |
Throat depth(mm) |
300 |
355 |
400 |
600 |
Punching thickness(mm) |
16 |
20 |
25 |
26 |
Max.Punching diameter(mm) |
25 |
30 |
35 |
38 |
Power of main motor(kw) |
4 |
5.5 |
7.5 |
11 |
Overall dimensions(L*W*H)mm |
1640*730*1770 |
1860*800*1900 |
2355*960*2090 |
2680*1040*2300 |
Weight of machine(kg) |
1600 |
2000 |
4800 |
6800 |
|
