Hydraulic iron worker1. Hydraulic Transmission
2. Two whole forged cylinders
3. Two operating foot pedal

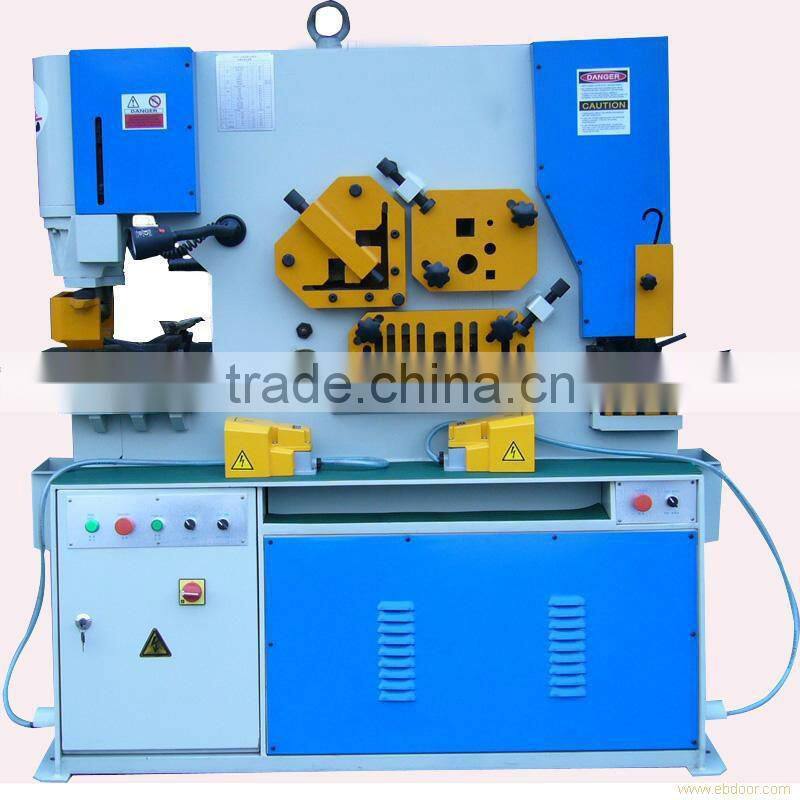

Iron worker machine/Iron worker with hydraulic pressing cylinder
The Q35Y-20 hydraulic ironworker has 95 tons of punching power and 123 tons of shearing and notching power. This is a dual operator machine where both areas can be operated independently at the same time with no loss of power to either work area. Like all Baileigh hydraulic ironworkers this is a true five station machine.
This hydraulic ironworker is constructed from heavy structural plate that is first bolted, then electro-welded in place for rigidity. All motions of the Q35Y-20 operate using pure vertical movements and NO PIVOT, common on most other hydraulic ironworkers. Vertical movement with no linkages is less stressful on the machine, allowing the tooling to last longer by eliminating the harsh snap when punching.
The punching station has a deep 16” throat and comes standard with 7 sets of punches and a large scaled table. The table can be broken down to accept channel and angle iron. In the punching section it can be outfitted with the optional pipe notching and press brake tooling.
This hydraulic ironworker is outfitted with a hydraulic hold down system at the shearing station for plate, solids, and angle. An optional channel iron shear is available. To compliment the shearing section an automatic back gauge is available to assist with large production runs. Our shearing section does not produce an expensive slug of material waste common with some other brands.
Our hydraulic ironworkers notching section is great for working with solid plate and angle iron. This notching station can be outfitted with the optional vee notcher.
Baileigh keeps a large inventory of tooling in stock for same day shipments. This machine is typically in stock for quick deliveries. Please call your knowledgeable Baileigh representative for further information.
Featuring:
1) Robust and accurate steel frame
2) Large punch table with scales
3) Removable bolster for punching flanges and channel and beam
4) 2 independent hydraulic cylinders
5) 2 shielded foot controls
6) 2 Separate Die Openings for oversized punching
7) 5 working stations for wide applications
8) Power inching on all 5 work stations
9) Plate shear support/table and notching table
10) Adjustable stroke controls with indicators on both cylinders
11) Movable work light as standard
12) Overload protection on hydraulic system
13) Electric backgauge
14) Optional bending attachment
15) Optional 5 sets punches and dies
Model:
Model |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Pressure(Ton) |
55 |
75 |
110 |
140 |
Max.cutting thickness(mm) |
16 |
20 |
25 |
30 |
Plate strength(N/mm2) |
≤450 |
≤450 |
≤450 |
≤450 |
Cutting angle(degree) |
7° |
8° |
8° |
8° |
Sheraing size of one stroke(mm) |
16*250 8*400 |
20*330 10*480 |
25*330 16*600 |
30*355 20*600 |
Slider stroke(mm) |
80 |
80 |
80 |
80 |
Number of strokes(cpm) |
8 |
8 |
6 |
6 |
Throat depth(mm) |
300 |
355 |
400 |
600 |
Punching thickness(mm) |
16 |
20 |
25 |
26 |
Max.Punching diameter(mm) |
25 |
30 |
35 |
38 |
Power of main motor(kw) |
4 |
5.5 |
7.5 |
11 |
Overall dimensions(L*W*H)mm |
1640*730*1770 |
1860*800*1900 |
2355*960*2090 |
2680*1040*2300 |
Weight of machine(kg) |
1600 |
2000 |
4800 |
6800 |
|
