Help CenterQ35Y- 30 Hydraulic Iron Worker Angle Steel Cutting Machine
Related Products
-
Punch MachineUS$ 1,000 - 45,000MOQ: 1 Set -
Q35Y-16 Hydraulic Iron Worker MachineNegotiableMOQ: 1 Set
-
Hydraulic Iron Worker Machine/punching MachineNegotiableMOQ: 1 Set
-
Q35Y Hydraulic Ironworker / Iron Worker / Hydraulic Machine for Punching and ShearingUS$ 2,000 - 82,000MOQ: 1 Set
-
Q35Y Hydraulic Ironworker for Punching and ShearingUS$ 2,000 - 40,000MOQ: 1 Set
Specifications
iron punching machine1.manufacturer factory
2.can cut,bend,notch and punch
3.Easy to operate
4.High quality ,good price

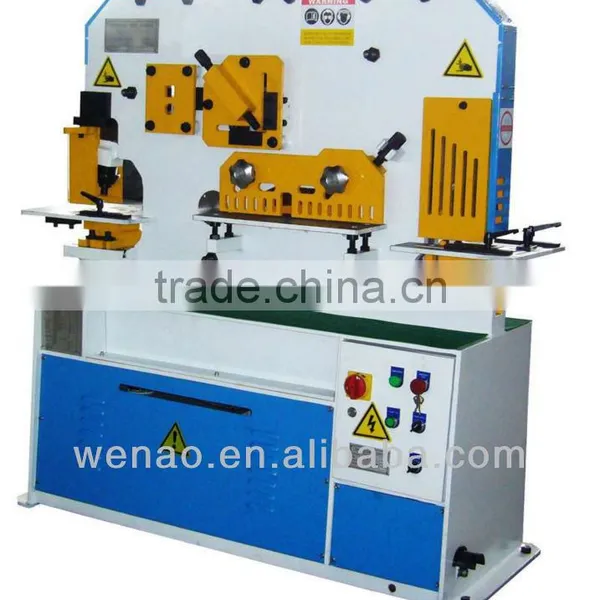

used iron worker/multi functional steelworker Q35Y-30/ Q35Y- 30 Hydraulic Iron Worker angle steel cutting machine
I. Function
Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching.
II. Advantage
1. Temperature Cooling System
2. Automatic holding tight system
III. Technical Parameter
FUNCTION |
Item |
Unit |
Q35Y-30 |
shearing plate |
Angle of shear |
° |
8° |
Max. shearing thickness |
mm |
30 |
|
Flat bar |
(W×T) mm |
355×30 |
|
600×20 | |||
shearing bar |
Round steel |
mm |
65 |
Square bar |
mm |
55×55 |
|
90°shearing of equal-angle bar |
mm |
180×180×16 |
|
45°shearing of equal-angle bar |
mm |
80×80×10 |
|
90°shearing of T-bar |
mm |
180×90×16 |
|
I beam steel |
mm |
280×124×10.5 |
|
channel steel |
mm |
280×86×11.5 |
|
notching |
Thickness |
mm |
10 |
Width |
mm |
90 |
|
Depth |
mm |
100 |
|
punching hole |
Max. punching thickness |
mm |
28 |
Max. diameter of punching |
mm |
38 |
|
Punching force |
Ton |
160 |
|
Depth of throat |
mm |
600 |
|
Max. length of cylinder stroke |
mm |
80 |
|
Stroke times |
times/min |
8 |
|
Material strength |
N/mm2 |
≤450 |
|
Motor power |
KW |
11 |
|
Overall dimensions (L×W×H) |
mm |
2680×1060×2380 |
|
Net. weight |
KG |
6600 |
|
IV. ACCESSORIES
a. A pair of round hole punching die
b. A set of angle steel blade
c. A set of square and round bar blade
d. A set of shearing plate blade
e. A set of notching blade
The above punching and moulds will be installed in the machine.
For other dies and blades, customers need to order and pay additionally.
