ZJ100-1000KN Full Vertical Rotor Die Casting Machine

Name: ZJ100-1000KN Full Vertical Rotor Die Casting Machine
Brand: Wenao
SKU: 137809573
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Wenao

Model Number:

ZJ100-1000KN

Nantong Wenao Import And Export Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Wenao

Model Number ZJ100-1000KN

Application aluminum /zinc castings

Material Zinc

Dimensions 100-1000KN

Specifications

high production efficiency
Machine reliability, excellent performance
It has two kinds of manual work and the linkage system.

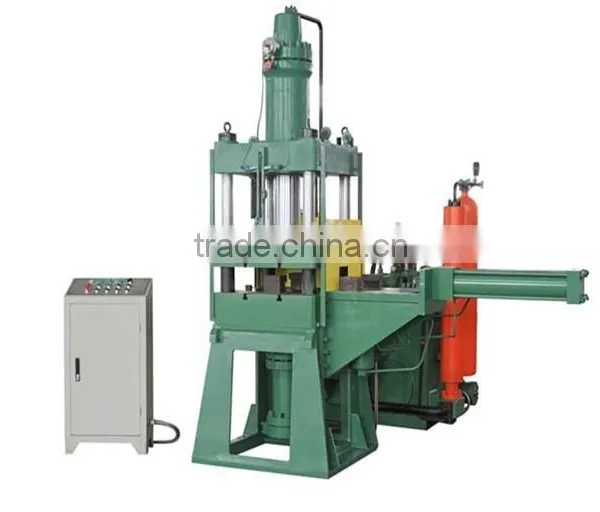

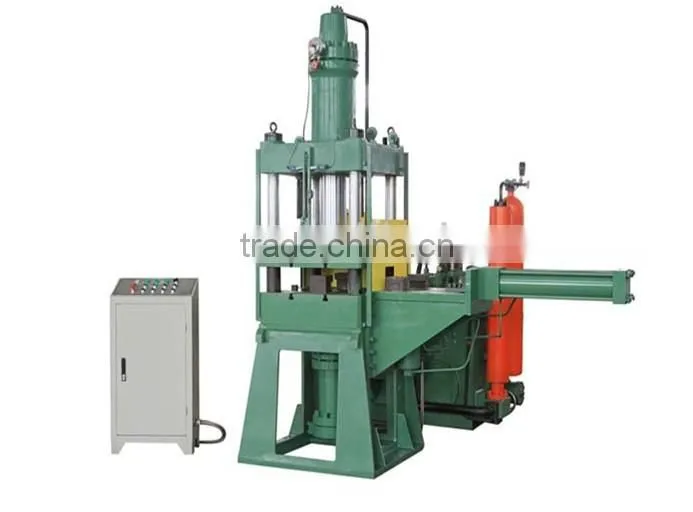

ZJ100-1000KN Full vertical rotor die casting machine

Uses and Features:

This machine is suitable for the entire vertical rotor die casting machine, the center can also be used for the gate of the other casting aluminum, zinc castings. The aircraft by a type, injection, hydraulic and electrical and other system components. Together with full hydraulic structure, easy to replace the different thickness of the mold. Ben injection system with radiation force, injection speed and according to process requirements stepless adjustment features.

This machine has two kinds of manual work and the linkage system. The machine can be equipped with automatic cut materials pickup mechanism for automatic production cycle, high production efficiency. Machine reliability, excellent performance, is more advanced dedicated die-casting machine.

Technical Parameter:

Model	ZJ100	Unit
Die locking force	1000	kn
Die stroke	500	mm
Inner space between tie bars	520*520	mm
opening distance of dynamic and static plate	250-750	mm
Injection force	250-450	kn
Pressure chamber diameter	100, 120, max up 150	mm
largest projected area of Casting	720	cm2
Maximum casting weight (aluminum)	4.5	kg
Open type force	150	kn
Working pressure piping	12.5	Mpa
Dry cycle	15	s
Weight(GW)	5	t
Size(lengthwidthheight)	1000 × 890 × 2600	mm
