ZJ500-5000kn Full Vertical Rotor Die Casting Machine

Name: ZJ500-5000kn Full Vertical Rotor Die Casting Machine
Brand: Wenao
SKU: 137809575
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Wenao

Model Number:

ZJ500-5000KN

Nantong Wenao Import And Export Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Wenao

Model Number ZJ500-5000KN

Application aluminum /zinc castings

Material Zinc

Dimensions 100-1000KN

Specifications

high production efficiency
Machine reliability, excellent performance
It has two kinds of manual work and the linkage system.

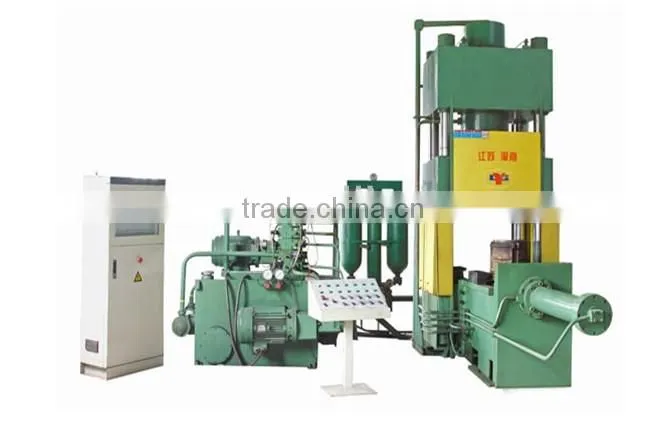

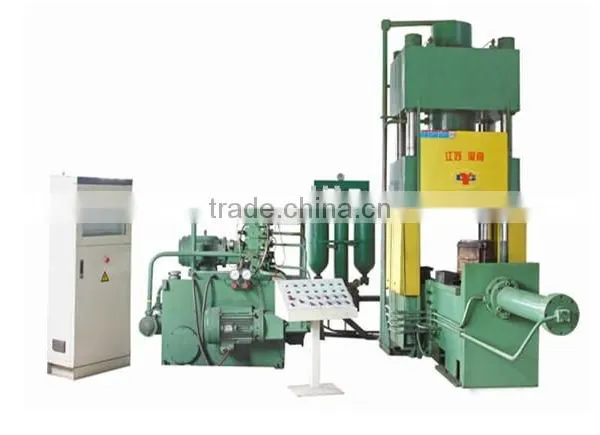

ZJ500-5000KN Full vertical rotor die casting machine

Uses and Features:

This machine is suitable for the entire vertical rotor die casting machine, the center can also be used for the gate of the other casting aluminum, zinc castings. The aircraft by a type, injection, hydraulic and electrical and other system components. Together with full hydraulic structure, easy to replace the different thickness of the mold. Ben injection system with radiation force, injection speed and according to process requirements stepless adjustment features.

This machine has two kinds of manual work and the linkage system. The machine can be equipped with automatic cut materials pickup mechanism for automatic production cycle, high production efficiency. Machine reliability, excellent performance, is more advanced dedicated die-casting machine.

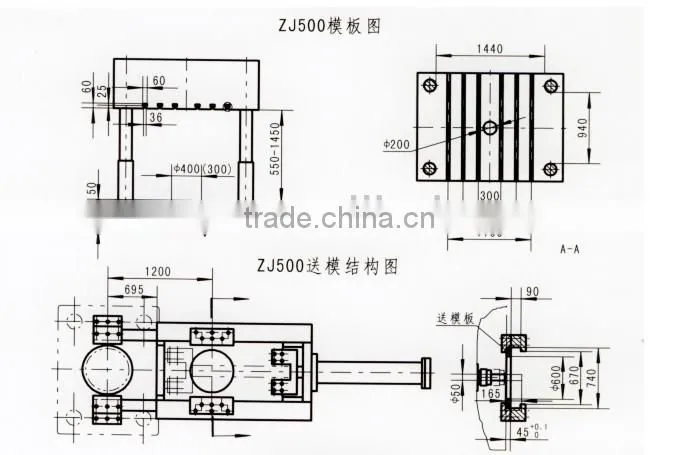

Technical Parameter:

Name	unit	ZJ500
Die locking force	kn	5000
Max.Injection force	kn	3150
Max Bonded stroke	mm	900
opening distance of plate	mm	550 - 1450
Inner space between tie bars	mm	1440 × 940
Injection chamber diameter	mm	400
Maximum amount of aluminum injection	kg	100
cut gate power	kN	500
Send stroke	mm	1200
Hydraulic Ejection Force	kN	750
Top out cylinder stroke	mm	165
Dry cycle time	s	150
High system pressure	Mpa	25.5
Medium pressure system pressure	Mpa	14
Main power	kW	59
Weight (GW)	t	34
Applications		≤Y450-6
