Specifications
Four-column hydraulic press machine1.Pressure:20T to 10000T
2.Customized
3.PLC control

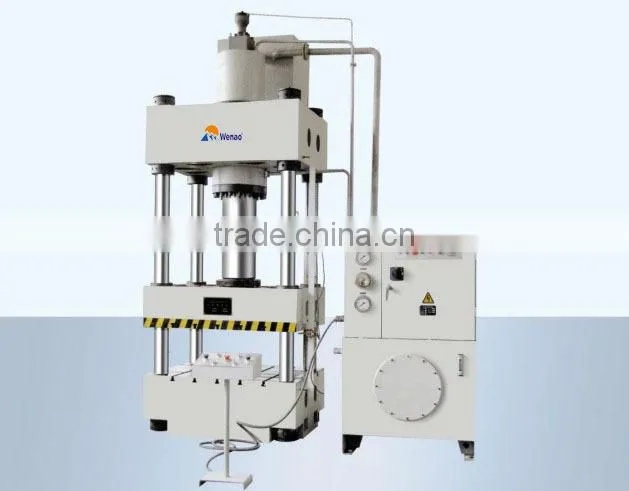

YLS32 Series four-column hydraulic press machine
Application:
Sheet metal stretching, blanking, stamping and all stretch flange forming process, but also for correction, press-fit technology, widely used in the following industries:
Auto parts: body panels, brake, fuel tank, chassis, axle housing, bumper
Kitchen appliances: sink, a pot, stainless steel appliances, and other containers.
Other: tractors, motorcycles, aerospace, aviation, chemicals, instruments, machine tools
Advantages:
1.Simple 4-column structure and reliable operating system
2.With movable working table
3.Easy and practical to change die
4.Uses PLC control to make sure that operating sensitive and reliable
5.Mechanical, electrical and hydraulic integration
Product Description:
The hydraulic press use optimized design of computer with international advanced level. The frame structure, rigid, high precision, strong resistance to side load capacity. Corners directions with guide,high guiding precision New fuel tank sealing components, high reliability, long life.
The hydraulic press have fast working speed,improve the production efficiency. The working pressure and stroke can be adjusted according to process requirements, easy to operate.
Our hydraulic have low noise which can replace the mechanical press.
Using non-contact displacement sensor or switch, improve the reliability and accuracy of stroke control.
Mechanical, electrical, hydraulic integration of safety devices, security is superior.
TECHNICAL SPECIFICATIONS:
Item |
Unit | YLS-63T | YLS-100T | YLS-200T | YLS-315T | YLS-500T | YLS-630T | YLS-800T | YLS-1000T | |
| Nominal force | KN | 630 | 1000 | 2000 | 3150 | 5000 | 6300 | 8000 | 10000 | |
| Ejector force | KN | 190 | 190 | 280 | 630 | 1000 | 1000 | 1000 | 1600 | |
| Return force | KN | 120 | 165 | 240 | 600 | 900 | 850 | 1000 | 1800 | |
| Slide stroke | mm | 500 | 500 | 710 | 800 | 900 | 900 | 1000 | 1000 | |
| Ejector stroke | mm | 200 | 200 | 200 | 300 | 350 | 350 | 350 | 350 | |
| Open height | mm | 800 | 800 | 1120 | 1250 | 1500 | 1500 | 1600 | 1600 | |
| Slide speed | Idle stroke | mm / S | 100 | 120 | 120 | 100 | 100 | 100 | 120 | 110 |
| Work | mm / S | 8-16 | 7-15 | 5-12 | 5-12 | 7-15 | 5-12 | 5-12 | 5-12 | |
| Return stroke | mm / S | 85 | 90 | 95 | 60 | 80 | 85 | 95 | 65 | |
| Ejector stroke | Up | mm / S | 55 | 75 | 80 | 55 | 75 | 75 | 95 | 75 |
| Return | mm / S | 105 | 140 | 145 | 145 | 170 | 170 | 170 | 150 | |
| Working table | LR | mm | 580 | 690 | 1000 | 1260 | 1400 | 1600 | 2200 | 2500 |
| Effective size | Front-back | mm | 500 | 630 | 940 | 1160 | 1400 | 1600 | 1600 | 1800 |
| Motor Power | KW | 5.5 | 7.5 | 15 | 22 | 44 | 44 | 60 | 66 | |
| Weight | KG | 3000 | 3500 | 10500 | 15500 | 29000 | 42000 | 51000 |
54000 |
|
