Stone Impact Crushers / PF Type Double Rotor Impact Crusher

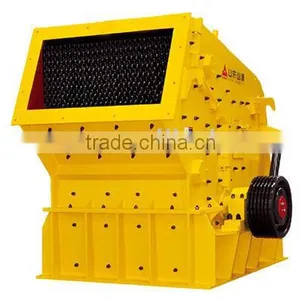

Stone Impact Crushers / PF Type Double Rotor Impact Crusher thumbnail-1

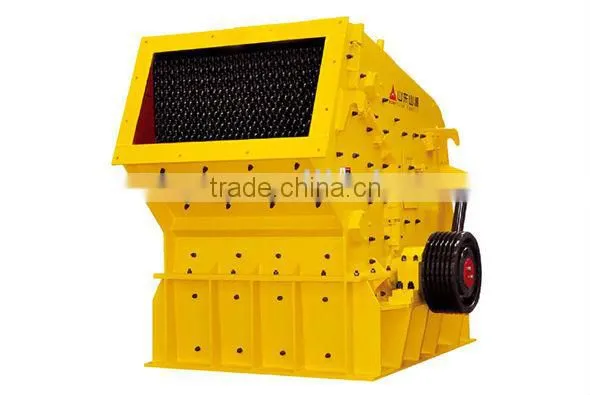

Stone Impact Crushers / PF Type Double Rotor Impact Crusher photo-1
US$ 1,000 - 69,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
crushing,limestone, gravel,bauxite,etc
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Impact Crusher
Application crushing,limestone, gravel,bauxite,etc
Motor Type AC Motor
Power(W) 30-55kw
Capacity(t/h) 37-50
Place of Origin Jiangsu, China
Brand Name Wenao
Model Number PF-1007
Dimension(L*W*H) 2400X1560X2600
Weight 1480kgs
Certification ISO9001:2008
Warranty one year
After-sales Service Provided Overseas third-party support available

Specifications

Impact crusher
1) High crushing scale.
2) High crushing efficiency.
3) It is convenient for maintenance

Stone impact crushers / PF type double rotor impact crusher, Impact crusher, Manual stone crusher, Rotor impact crusher



Application:

Impact crusher can process granite,basalt,limestone,etc,which the granularity is not bigger than 120-300mm and crushing compression strength is not more than 320mp. It is used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and demolition debris. This cube shaped fineness product is the first-class device used in high grade road surface,railway,water conservancy and electricity industry.



Futures:

1) High crushing scale.

2) High crushing efficiency.

3) It is convenient for maintenance.



PF type double rotor impact crusher is mainly used for limestone, gypsum, etc. brittle material crushing via gradual innovation and designing, based on the international advanced technology absorption.
In order for convenient usage of customer, the equipment configures liquid hydraulic opening device meanwhile it is installed hydraulic coupling to reduce the starting & click protection, its structure is simple, crushing ratio is large, power consumption is low, abrasiveness is small, investment of civil construction is saving and the quality is high, meanwhile it is perfect rough & medium crushing equipment in cement, mining and chemical industries, etc.
PC type impact crusher is a new type crusher for crushing brittle and medium hard material with less moisture content and it is widely used for cement, building material, mining and chemical industries, etc.
This series crusher could crush the material with 600-1800mm grain size and no more than 140Mpa compressive pressure into less than 20mm, it has large crushing capacity and less unit power consumption and it has many advantages.
PF type single rotor impact crusher is a new type high efficient crusher which is widely used in cement, chemical and mineral processing industries, etc.
This series crusher could process the ore and rock with grain size no more than 120-350mm and compressive pressure no more than 250Mpa. It has the advantages of large crushing ratio, unit power consumption, high efficiency and small occupied area, etc.


Specification:

Model

Rotor Specs (mm)

Feed lenght (mm)

Max. feed size (mm)

Capacity(t/h)

Power of motor (kw)

Overall Dimensions
(mm)

PF-1007

Φ1000×700

400×730

300

37-50

30-55

2400×1560×2600

PF-1010

Φ1000×1050

400×1080

350

55-80

55-75

2440×2250×2650

PF-1210

Φ1250×1050

400×1080

350

60-120

110-132

2700×2340×2900

PF-1214

Φ1250×1400

400×1430

350

130-180

132-160

2700×2690×2890

PF-1315

Φ1300×1500

860×1520

350

150-220

180-220

3100×3280×2670

PF-1515

Φ1550×1500

900×1650

350

200-260

260-280

3400×3500×3280



         Stone impact crushers / PF type double rotor impact crusher



Stone impact crushers / PF type double rotor impact crusherStone impact crushers / PF type double rotor impact crusherStone impact crushers / PF type double rotor impact crusher
