Specifications
Tube mill1. high quality
2.less pollution
3.high technical content

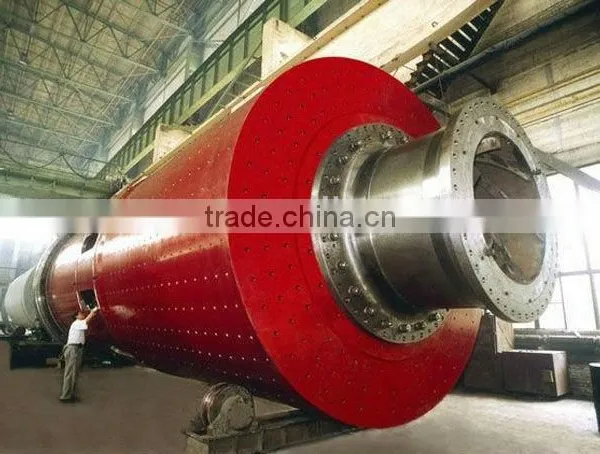

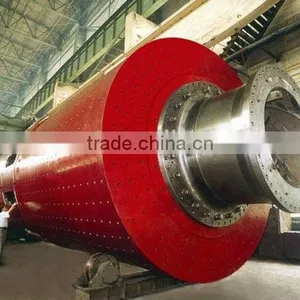

Tube Mill for all kinds of ores and materials/wet raw material grinding tube mill
Our company has designed a new single-drive and double slide-shoe tube mill sliding shoe with bearing support structure which is used new and slide shoe support device, It is characterized by good lubrication, light weigh, easy to replace and easy to maintain.Type Y update sealing between slide-shoe housing and slide ring which is simple structure, better sealing performance.The mill gate of the cylinder is used outside cover and excellent structure, New type mill door, can make internal cylinder use the same specification lining plate.Specially equip with manhole lining plate like traditional way.Only use new classification lining plate and standard step lining plate.Increase the grinding surface and have better classified efficiency.It is easy to maintenance and replace.New diaphragm structure is used adjustable lifting plate and fixed lifting plate, equip with one one material spoon which can increase feeding capability effectively, and the new structure is easy to install and maintain.
1.Motor 2.Reducer 3.back-up unit 4.crushing space 5.inspection manhole
6.feeder unit 7.Discharge grate plate 8.Discharge chamber 9.Aggregate cover
10.Dumped material hole 11.Crushing dielectric 12.Ring groove lining
1.Grid plate 2.bearing inner sleeve 3.Hollow trunnion 4.dustpan type lining
5.Center plate 6.Fillet 7.adjusting wedge 8.Ball mill ore end cover and the gratin
1.waffle slab 2.Discharge screw blade 3.trommel screen
4.Discharging cover 5.transmission connecting shaft
