Home > Products > Beverage and Oil Machine > high performance drum sieve/Trommel Screen Hot Selling in Africa
high performance drum sieve/Trommel Screen Hot Selling in Africa
- 300 Set / Sets per Month
- Qingdao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
mango hollander beater/fruit beater/automatic fruit vegetable beater
-
high efficiency and professional 12L Slush machine
-
0086-13503826925 hot sale stainless steel electric ice shaving machine
-
stainless steel and made in china fruit juice extracting machine
-
have stock and good-using Vertical centrifugal oil filter
-
2014 hot sale and good quality Slush machine
Product Details
| Condition | New | Type | Other, cotton seeds sieve | |
| Application | Food Processing | Place of Origin | Henan, China | |
| Brand Name | taizy | Model Number | tz | |
| Voltage | 380v | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 4500x1950x2550 | Weight | 3200 | |
| Certification | ISO | Warranty | 12months |
Product Description
high performance drum sieve/Trommel Screen Hot Selling in Africa 0086-13503826925
Description of drum sieve/Trommel Screen
This machine is commonly used to oil processing, it is for cleaning the oil seed which after crushing,
and can separate the shell and kernel.it has high cleaning rate, very easy to operate, it is the best choice for oil process industry.
Operating Principle of drum sieve/Trommel Screen
Drum screen consists of motor, decelerator, rotor drive, chassis, inlet and outlet. Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings
while the larger material tumbles towards its eventual exit at the rear of the drum.the screening rate:0.3% kernel rate from shell, and 12% shell rate from kenel.
Parameter of drum sieve/Trommel Screen
Model | tz-2-80 | tz-3-80 |
Sieve plate size | 18.2 m2 | 27 m2 |
Capacity | 60-80t/day | 100-120T/day |
Motor | 7.5kw | 11kw |
Mesh diameter | φ4-φ6(mm) | φ4-φ6(mm) |
sieve diameter | φ800mm | φ800mm |
sieve length | 3600 mm | 3600 mm |
sieve speed | 12r/min | 12r/min |
Main spindle speed | 145 r/min | 145 r/min |
External dimensions | 4800×1950×2550(mm) | 5000×2700×2900(mm) |
Entire machine weight | 3200 kg | 3900kg |

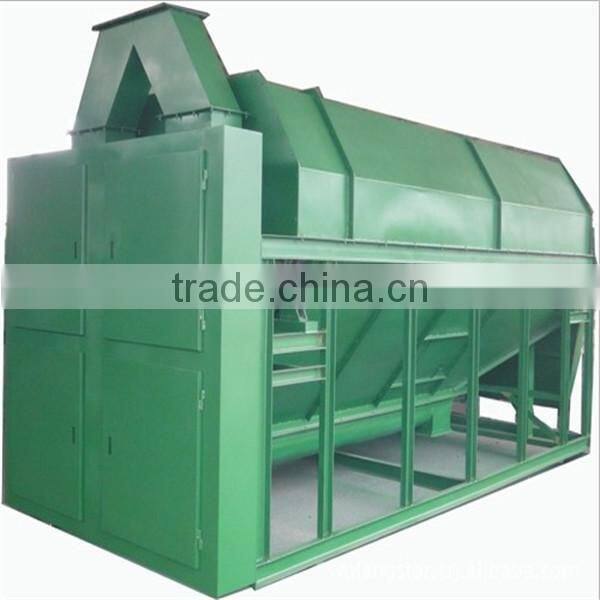

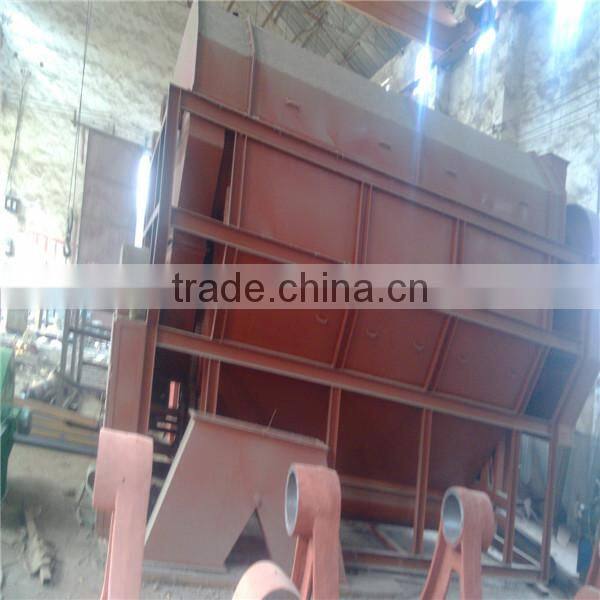

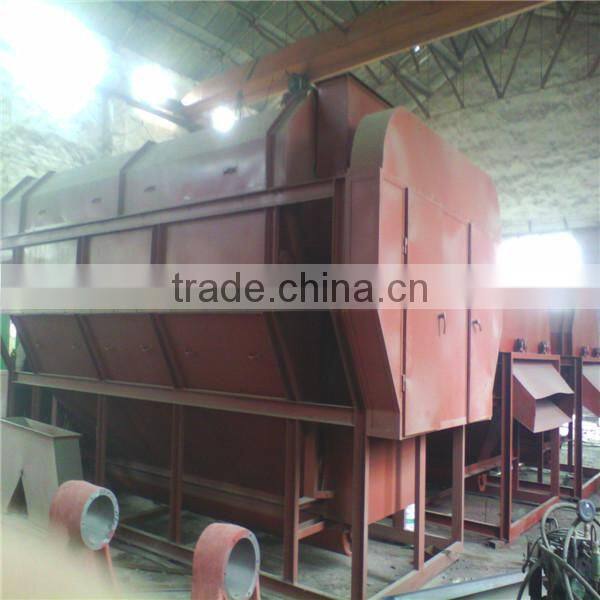

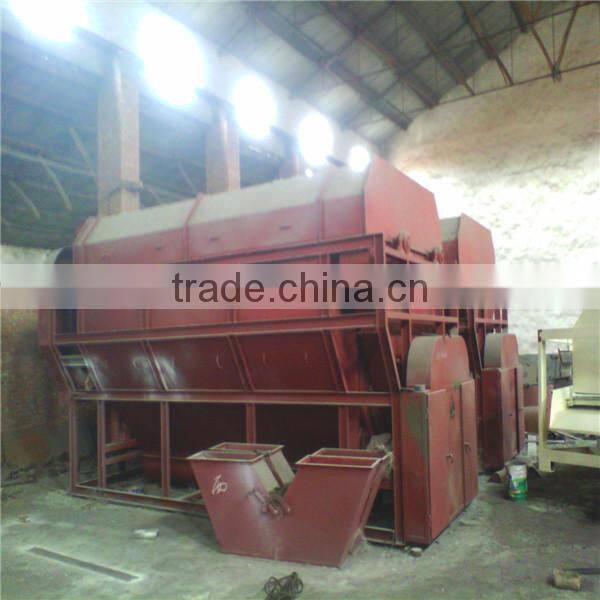

the pictures of drum sieve/Trommel Screen
Contact Us
- Zhengzhou Taizy Trading Co., Ltd.
- Contact namesmile niu Chat Now
- Phone0086-371-86083109
- AddressNO1394 hanghai road, Zhengzhou, Henan
