Rice Husk Charcoal Making Machine /charcoal Briquette Machine/ Woodsawdust Briquette Machine
Specification:
1.CE ISO wood sawdust briquette machine
2.High quality, low price wood sawdust briquette machine
3.3t per day wood sawdust briquette machine
CE certificate 3t per day wood charcoal making machine/sawdust briquette machie
1.The process for producing charcoal briquette as follow:
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feed let of briquette machine
4. Produce the briquette stick from biomass material without any additive
5. Carbonized the briquette stick
6. Complete charcoal production lines include crusher, drier, charcoal briquette machine, carbonization furnace.
2.Requirement of raw materials
Size: 3-5mm
Moisture: less than12%
(1)Introduction of wood sawdust briquette machine
wood sawdust briquette machine is used to make sawdust into half charcoal stick, it is equiped with the auto-controlling heating system. The product of charcoal briquette making machine can be used to heat boiler, fireplace, etc.for warm in house,using the inherent characteristics of wood raw materials, through the screw extrusion ,high temperature, high pressure, the wood raw material to make micro-fiber lignin, we can get the semi-products.
(2).Features of wood sawdust briquette machine
a.The wood sawdust briquette machine shows the features of big capacity, low energy consumption, compact and durable.
b.Many performance data of charcoal briquette machine such as capacity, coal bar density, electric c
onsumption and wearable degree have reached advanced level.
c.If you need large capacity, one single charcoal briquette making machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save cost.
(3).Spare parts of wood sawdust briquette machine
(4)Final product of wood sawdust briquette machine
(5).Technical parameter of wood sawdust briquette machine
Model |
Power(kw) |
Capacity(T/H) |
Moisture |
Size(M) |
SL-50-9 |
11-15 |
0.12-0.22 |
8-12% |
2.2x0.6x1.3 |
SL-50C-9 |
22 |
0.35-0.45 |
8-12% |
2.7x6.8x1.5 |
SL-60-9 |
15-18.5 |
0.22-0.25 |
8-12% |
2.4x0.7x3.5 |
SL-70-9 |
18.5-22 |
0.28-0.34 |
8-12% |
2.4x0.7x1.4 |
SL-80-9 |
22 |
0.32-0.36 |
8-12% |
2.4x0.75x1.4 |
SL-90-9 |
30 |
0.38-0.45 |
8-12% |
2.6x0.8x1.5 |

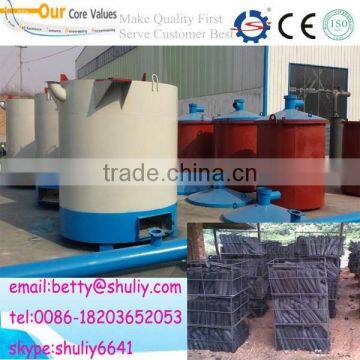

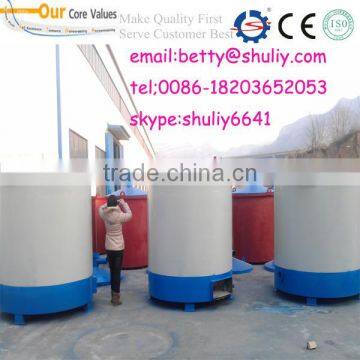

3.Gas flow type Carbonization furnace

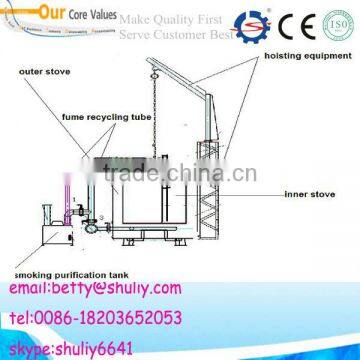

(1)Structure of charcoal briquette carbonize stove: Outer stove, inner stove, and fume extraction tube

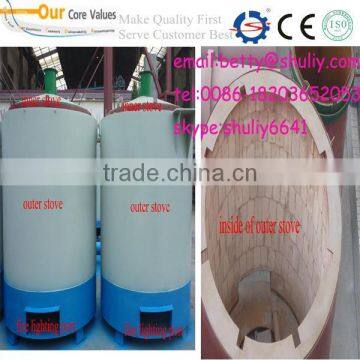

Outer stove: it includes heating room, furnace body and heat-keeping layer Inner stove: The raw materials the resistance thermal steel plant and sealing cover.
Fume extraction tube: When during the process of carbonizing, there will be some smoke (can be burning) the smoke can return to the furnace through tube----gas flow carbonization stove.
Our service
1.Before Sale: help you to set a purchase plan according to your requirment.
2.During Sale: accompany you to check the performance of charcoal briquette making machine; train technical stuff for you.
3.After Sale: Sent artisan to your place and help you with the installation.
Payment
30% in advance, 70% pay off against the copy of B/L
Time of Delivery
Within 10-15 days after receive your deposit
