Combination Chipper and Wood Waste Crusher
- Qingdao/Shanghai/Guangzhou/Tianjin/Ningbo
- Money Gram Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | AZEUS | Model Number | AZS1000 | |
| Voltage | 380V | Power(W) | 45KW | |
| Dimension(L*W*H) | 2.8x1.8x1.8m | Weight | 2800kg | |
| Certification | CE certificate | Warranty | 1 Year | |
| After-sales Service Provided | No overseas service provided |
Wooden case
Product Description

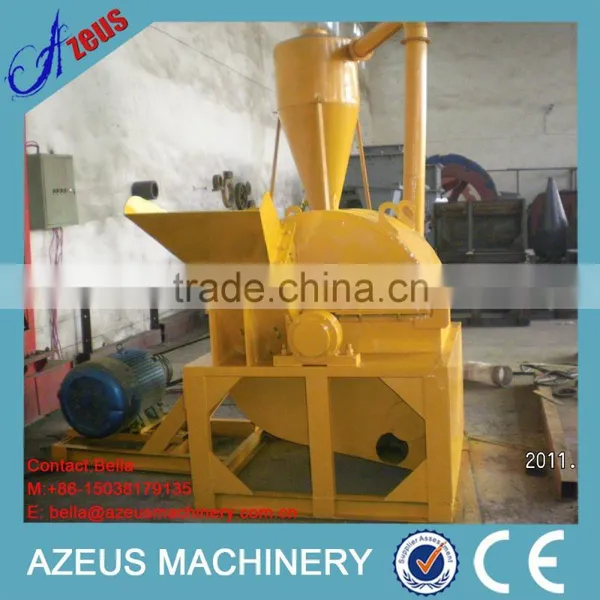

Combination Chipper and Wood Waste Crusher
Wood Waste Crusher Introduction
The wood waste crusher is usually used for processing different materials such as pine, miscellaneous wood, poplar, fir, branches, thatch, straw and etc. It is widely applied in variety of industries including papermaking, high-density board, fiberboard, chipboard and wood particle board processing, edible fungi cultivation, wood pellet making, boilers and gas stoves combustion. Materials are cut by high speed rotating alloy steel blade, then enter the crushing chamber to be shred by special hammer and friction among materials. The sieve pores can be adjusted to get different particle sizes based on customers demands.
Working Principle of Wood Waste Crusher
This wood waste crusher integrates crushing and grinding, adopting blade cutting and high-speed airflow impacting, and simultaneously complete micro material sorting process. During the blade working process, rotor produces high speed airflow, the material are accelerated in the airflow and impacted, thus completing the grinding process.
Wood Waste Crusher Parameter
Single Inlet Crusher
| Model | AZS500 | AZS600 | AZS700 | AZS800 | AZS900 | AZS1000 |
| Blade dia. | 450mm | 600mm | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 300kg/h | 600kg/h | 800kg/h | 1500kg/h | 3000kg/h | 4000kg/h |
| Power | 7.5kw | 11kw | 15kw | 22kw | 37kw | 45kw |
| Knife pcs. | 4 | 4 | 6 | 6 | 4-6 | 4-6 |
| Knife length | 100mm | 150mm | 200mm | 230mm | 260mm | 300mm |
| Inlet hole size | 180x200mm | 200x200mm | 200x250mm | 250x300mm | 300x400mm | 400x500mm |
| Shaft speed | 2600rpm | 2500rpm | 2600rpm | 2300rpm | 2000rpm | 2000rpm |
Double Inlet Crusher
| Model | AZSFS500 | AZSFS600 | AZSFS800 | AZSFS900 | AZSFS1000 | AZSFS1200 |
| Power | 18.5KW | 22KW | 30KW | 37KW | 45KW | 55KW |
| Capacity | 500-800kg/h | 800-1200kg/h | 1800-2000kg/h | 2000-3000kg/h | 3000-4000kg/h | 4000-6000kg/h |
| Speed | 2600rpm | 2600rpm | 2600rpm | 2400rpm | 2400rpm | 2400rpm |
| Dimension | 1.8x1.0x1.1m | 2.06x1.1x1.45m | 2.616x1.584x1.29m | 2.8x2.2x1.5m | 3.0x2.5x1.7mm | 3.4x2.8x2.0m |
| Weight | 1.0t | 1.3t | 2.0t | 2.8t | 3.5t | 4.5t |
Crusher With Blower
| Model | AZSCF158 | AZSCF198 | AZSCF420 | AZSCF500 |
| Capacity | 60-120kg/h | 200-300kg/h | 200-500kg/h | 800-1100kg/h |
| Power | 2.2KW | 4KW | 7.5/11KW | 22KW |
| Voltage | 220V/380V | 220V/380V | 380V | 380V |
| Dimension | 480x580x630mm | 970x750x640mm | 1120x820x1070mm | 1240x970x1060mm |
| Weight | 75kg | 120kg | 260kg | 600kg |
Maintenance of Wood Waste Crusher
1. Bearings should be added lubricating oil regularly. Generally continuous working for 3 or 4 hours, you should check whether the machine needs to add oil.
2. After a certain period of operation, the machine triangular belt should be readjusted a bit more tight, and 6-10mm would be better.
3. Every day after working, the machine should be cleaned and checked whether there are cracks and other problems in it. It is necessary to keep timely maintenance.
Finished Products
Different Functional Hammer Mill
Except the wood waste crusher, we also have diesel hammer mill, multifunctional ultra mill, bone crusher, plastic crusher, metal crusher, fiber crusher etc..
1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
Bella Wu
Email: bella(at)
Mobile: +86-15038179135 (Whatsapp)
Tel:+86-0371-65996917
Skype:bellawu1989
Company Profile
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kinds of food machinery, especially the following products. 1. Potato Chips Machine 2. Feed Making Machine 3. Snack Food Making Machine 4. Oil processing machine 5. Food Cart 6. Food Packing Machine Our company now has more than 200 employees and a wide range of junior and senior engineers, which helped us to serve all of our customers from different countries, including Europe, North America, Africa, East and South Asia, Australia, New Zealand and other countries and regions. Our company has passed ISO9001 certificate. And 60% of our products, such as feed machines, oil processing machines, had the CE certificate. Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects. We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
