Large Straw Crushing Machine With 4T Capacity
Straw Crushing Machine Introduction

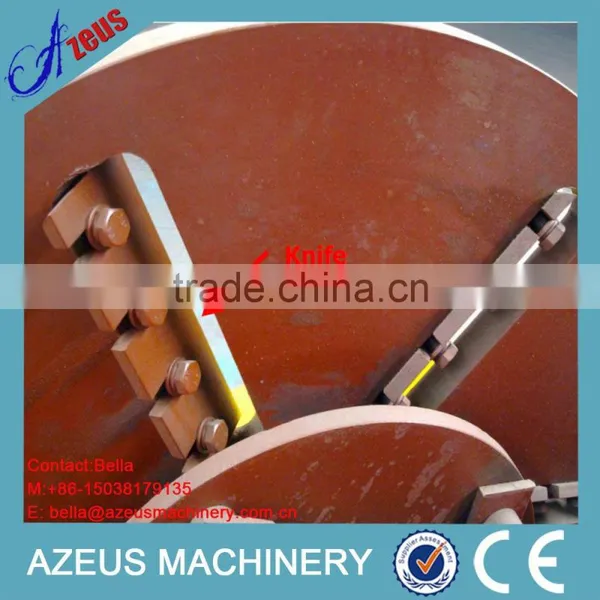

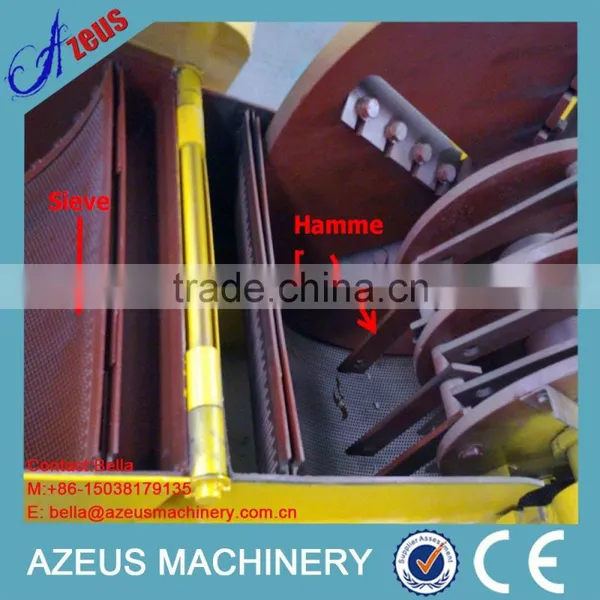

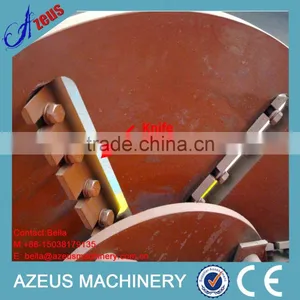

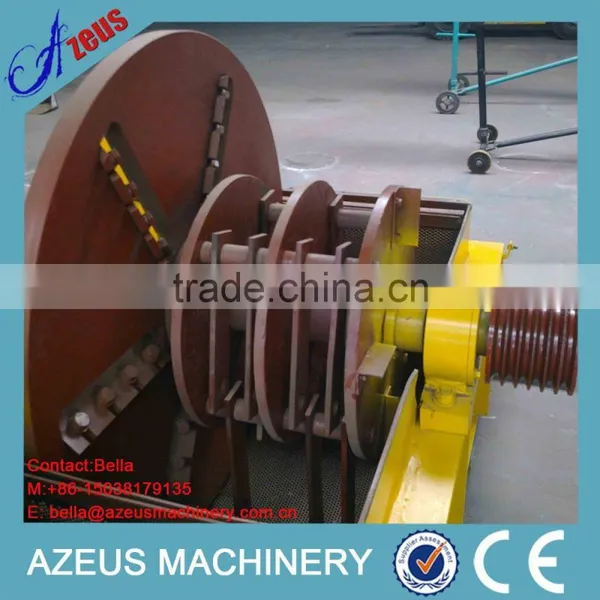

The straw crushing machine is usually used for processing different materials such as pine, miscellaneous wood, poplar, fir, branches, thatch, straw and etc. It is widely applied in variety of industries including papermaking, high-density board, fiberboard, chipboard and wood particle board processing, edible fungi cultivation, wood pellet making, boilers and gas stoves combustion. Materials are cut by high speed rotating alloy steel blade, then enter the crushing chamber to be shred by special hammer and friction among materials. The sieve pores can be adjusted to get different particle sizes based on customers demands.
Working Principle of Straw Crushing Machine
This straw crushing machine integrates crushing and grinding, adopting blade cutting and high-speed airflow impacting, and simultaneously complete micro material sorting process. During the blade working process, rotor produces high speed airflow, the material are accelerated in the airflow and impacted, thus completing the grinding process.
Straw Crushing Machine Parameter
Single Inlet Crusher
| Model | AZS500 | AZS600 | AZS700 | AZS800 | AZS900 | AZS1000 |
| Blade dia. | 450mm | 600mm | 700mm | 800mm | 900mm | 1000mm |
| Capacity | 300kg/h | 600kg/h | 800kg/h | 1500kg/h | 3000kg/h | 4000kg/h |
| Power | 7.5kw | 11kw | 15kw | 22kw | 37kw | 45kw |
| Knife pcs. | 4 | 4 | 6 | 6 | 4-6 | 4-6 |
| Knife length | 100mm | 150mm | 200mm | 230mm | 260mm | 300mm |
| Inlet hole size | 180x200mm | 200x200mm | 200x250mm | 250x300mm | 300x400mm | 400x500mm |
| Shaft speed | 2600rpm | 2500rpm | 2600rpm | 2300rpm | 2000rpm | 2000rpm |
Double Inlet Crusher
| Model | AZSFS500 | AZSFS600 | AZSFS800 | AZSFS900 | AZSFS1000 | AZSFS1200 |
| Power | 18.5KW | 22KW | 30KW | 37KW | 45KW | 55KW |
| Capacity | 500-800kg/h | 800-1200kg/h | 1800-2000kg/h | 2000-3000kg/h | 3000-4000kg/h | 4000-6000kg/h |
| Speed | 2600rpm | 2600rpm | 2600rpm | 2400rpm | 2400rpm | 2400rpm |
| Dimension | 1.8x1.0x1.1m | 2.06x1.1x1.45m | 2.616x1.584x1.29m | 2.8x2.2x1.5m | 3.0x2.5x1.7mm | 3.4x2.8x2.0m |
| Weight | 1.0t | 1.3t | 2.0t | 2.8t | 3.5t | 4.5t |

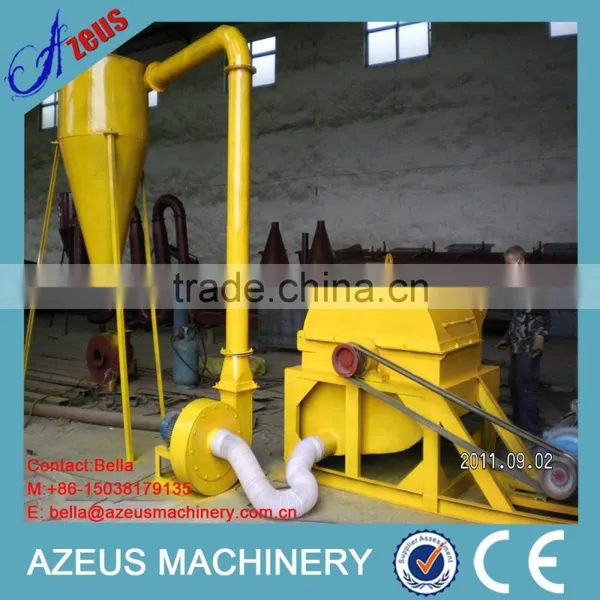

Crusher With Blower
| Model | AZSCF158 | AZSCF198 | AZSCF420 | AZSCF500 |
| Capacity | 60-120kg/h | 200-300kg/h | 200-500kg/h | 800-1100kg/h |
| Power | 2.2KW | 4KW | 7.5/11KW | 22KW |
| Voltage | 220V/380V | 220V/380V | 380V | 380V |
| Dimension | 480x580x630mm | 970x750x640mm | 1120x820x1070mm | 1240x970x1060mm |
| Weight | 75kg | 120kg | 260kg | 600kg |
Maintenance of Straw Crushing Machine
1. Bearings should be added lubricating oil regularly. Generally continuous working for 3 or 4 hours, you should check whether the machine needs to add oil.
2. After a certain period of operation, the machine triangular belt should be readjusted a bit more tight, and 6-10mm would be better.
3. Every day after working, the machine should be cleaned and checked whether there are cracks and other problems in it. It is necessary to keep timely maintenance.
Finished Products
Different Functional Hammer Mill
Except the straw crushing machine, we also have diesel hammer mill, multifunctional ultra mill, bone crusher, plastic crusher, metal crusher, fiber crusher etc..
1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
