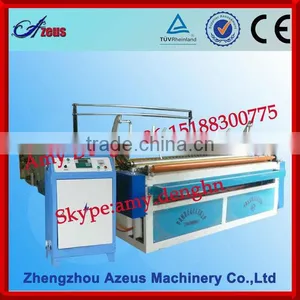

Toilet Paper Rolls Making Machine
- 100 Set / Sets per Month
- Qingdao port
- T/T Credit Card PayPal
Product Details
Condition: | New | Product Type: | Toilet Tissue | Processing Type: | Other, toilet paper rolls making machine |
Place of Origin: | Henan, China | Brand Name: | AZEUS | Model Number: | AZS-1880 |
Voltage: | 380V,50Hz | Power(W): | 3.5Kw | Dimension(L*W*H): | 6500*3200*1800mm |
Weight: | 3500kg | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in a 20 Feet Container
Product Description
Specifications
toilet paper rolls making machine1.PLC control
2.automatic edge-trimming,tail-gluing and sealing
3.high speed,low waste
Toilet Paper Rolls Making Machine
Brief introduction of the toilet paper rolls making machine:
1.The toilet paper rolls making machine is used to rewind the jumbo roll paper to make small toilet tissue rolls.
2.The toilet paper rolls making machine can make tissue rolls with paper roll or without.
3.Automatic edge-trimming,tail-gluing and sealing,lower the waste of paper tail.
4.Advanced PLC programming controller,when rewinding,the tissue can be rewound tightly at the beginning and then get loose to avoid the problem that the cores are loose from rolls after long time storage.
5.Easy operation and labor-saving.
Parameters of the toilet paper rolls making machine:
Model | 1575 | 1880 | 2400 | 2600 | 2800 |
Jumbo paper roll width | 1800mm | 2200mm | 2350mm | 2550mm | 2750mm |
Jumbo paper roll outer diameter | 1100mm(customizable) | ||||
Jumbo paper roll inner diammeter | 76.5mm(customizable) | ||||
Finished product diameter | 60-120mm | ||||
Controller | PLC Programming Controller | ||||
Production speed | 150-200 m/min | ||||
Bottom embossing roller | felt roller,wool roller,rubber roll,etc | ||||
Embossing | single embossing,double embossing,steel to steel embossing,etc | ||||
Mechanical drive | Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length. | ||||
Unwinding stand | 1-3 layer | ||||
Braking system | Electronic brake,pneumatic control | ||||
Main power | 3.5-11Kw | ||||
Overall size | 6200*3200*1800mm(different as per models) | ||||
Weight | 3000-9000kg |
Pictures of different models:
No paper core toilet paper rolls making machine:
With paper core toilet paper rolls making machine:
Embossing toilet paper rolls making machine:
Emossing and perforating toilet paper rolls making machine:
Pictures of delivery for toilet paper rolls making machine:
For more details,please feel free to contact me:
