Specifications
toilet paper manufacturing equipment1.PLC control
2.automatic edge-trimming,tail-gluing and sealing
3.high speed,low waste

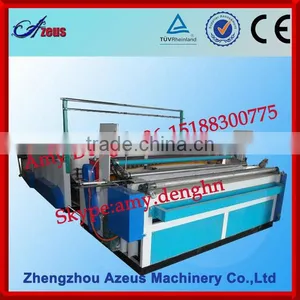

Toilet Paper Manufacturing Equipment
Brief introduction of the toilet paper manufacturing equipment:
1.The toilet paper manufacturing equipment is used to rewind the jumbo roll paper to make small toilet tissue rolls.
2.The toilet paper manufacturing equipment can make tissue rolls with paper roll or without.
3.Automatic edge-trimming,tail-gluing and sealing,lower the waste of paper tail.
4.Advanced PLC programming controller,when rewinding,the tissue can be rewound tightly at the beginning and then get loose to avoid the problem that the cores are loose from rolls after long time storage.
5.Easy operation and labor-saving.
Parameters of the toilet paper manufacturing equipment:
| Model | 1575 | 1880 | 2400 | 2600 | 2800 |
| Jumbo paper roll width | 1800mm | 2200mm | 2350mm | 2550mm | 2750mm |
| Jumbo paper roll outer diameter | 1100mm(customizable) | ||||
| Jumbo paper roll inner diammeter | 76.5mm(customizable) | ||||
| Finished product diameter | 60-120mm | ||||
| Controller | PLC Programming Controller | ||||
| Production speed | 150-200 m/min | ||||
| Bottom embossing roller | felt roller,wool roller,rubber roll,etc | ||||
| Embossing | single embossing,double embossing,steel to steel embossing,etc | ||||
| Mechanical drive | Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length. | ||||
| Unwinding stand | 1-3 layer | ||||
| Braking system | Electronic brake,pneumatic control | ||||
| Main power | 3.5-11Kw | ||||
| Overall size | 6200*3200*1800mm(different as per models) | ||||
| Weight | 3000-9000kg | ||||
Pictures of different models:
No paper core toilet paper machine:
With paper core toilet paper machine:
Embossing toilet paper machine:
Emossing and perforating toilet paper machine:
Pictures of delivery for toilet paper machine:
For more details,please feel free to contact me:
