1)original tank(depending on the circumstances to select)
Overcome the instability of the water supply pipe network. Ensure that the entire system of water supply stable and continuous. It can be providing a guarantee to the reliable performance of the device long-term also. Control (depending on the circumstances to select). Preparations high float valve. Control switch when the water level is not in high, with raw water solenoid valve open condition, when the water level in the high-water, solenoid valve is closed, when the water level in the low water level, the raw water pump stop working, protection of the original water pump.
2)raw water pump
Provide the necessary pressure to all pretreatment equipment. According to pretreatment equipment design pressure drop. Maximum pressure on each piece of equipment can not be less than 0.5MPa.determine the original water pump working pressure.
3) Quartz sand filter
Containing very fine particles of dust, humus, starch, cellulose and bacteria, algae and other microorganisms, these impurity particles with water to form the body of the sol state, showing the sedimentation stability and aggregate stability, due to Brownian motion and electrostatic repulsion usually can not use the gravity of natural sedimentation to remove. Thereby reducing the turbidity of the water. The quartz sand is made from natural quartz by crushing, washing, drying, and second filter, no impurities, no angle, density, high mechanical strength contained sewage capacity line to use
RF-RFY-2000L/H | |
Parameter index | |
Product |

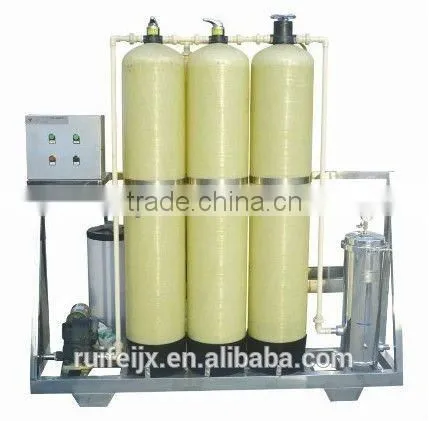

Standard water pretrement unit |
Model |
RF-RFY-2T/H |
Tank material |
fiber reinforced plastics |
Quartz sand fiter |
Outer size: 350*1450mm fiber reinforced plastics manual valve control |
Active carbon fiter |
Outer size: 350*1450mm
fiber reinforced plastics manual valve control |
softener |
Outer size: 350*1450mm fiber reinforced plastics manual valve control |
Salt water tank |
Capacity:100L material: PE |
Origial water pump |
|
Pipe fitting,valve |
Material: sus304 stainless steel, 32mm pipe fitting ,valve |
Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customerset up whole production line for mineral water, pure water,coca-cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.
We warmly welcome customer to visit our factory at any time,you will see the machine working and running
conditon in our factory!
