Reverse Osmosis(RO)
Reverse osmosis is a reverse migration movement of the infiltration. Driven by the pressure, it is a separation method which can separate the solute and solvent in the solution with the help of semi-permeable membrane’s interceptive roles. It has been widely used in the purification and concentration of various liquid. One of the most common examples is its usage in water treatment technics. With reverse osmosis technology, it can remove the inorganic ions, bacteria, viruses, and organic matter and colloidal impurities from the original water, so as to obtain high-quality pure water.
Reverse Osmosis membrane
Reverse osmosis (RO) membrane is a polyamide composite membrane which is composed by permeating liquid core columns, isolated networks, film, membrane and crust. Its filter aperture is only 0.0001 microns, the operating pressure is between 0.6-1.5 Map, and the desalting rate is high to 99%, so the chemical ions, bacteria, viruses are not passed and discharged with the wastewater. It only allows the water molecules and Oxygen molecules which are smaller than 0.0001 microns to pass, so as to achieve the purpose of purification.

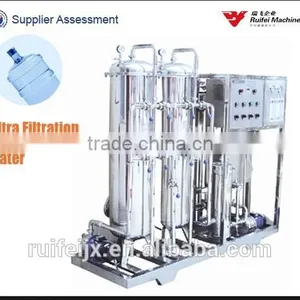

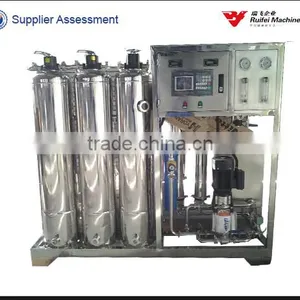

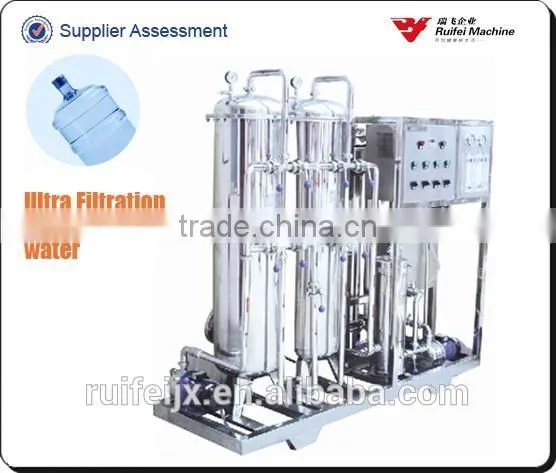

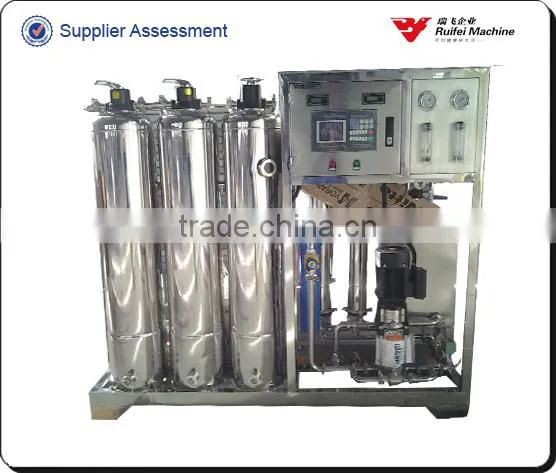

All of the parts are integrated to one so that it is convenient to install and transport. Its structure is reasonable, and appearance is generous. Main components: RO membrane (United States), high pressure pump (Denmark Gelanfu), conductivity (Taiwan, China), high and low voltage protection (South Korean), steel (Japan). It is in particular for small and medium enterprises, the group hotels, living quarters, personal investment to establish water storage station and self feeding point.

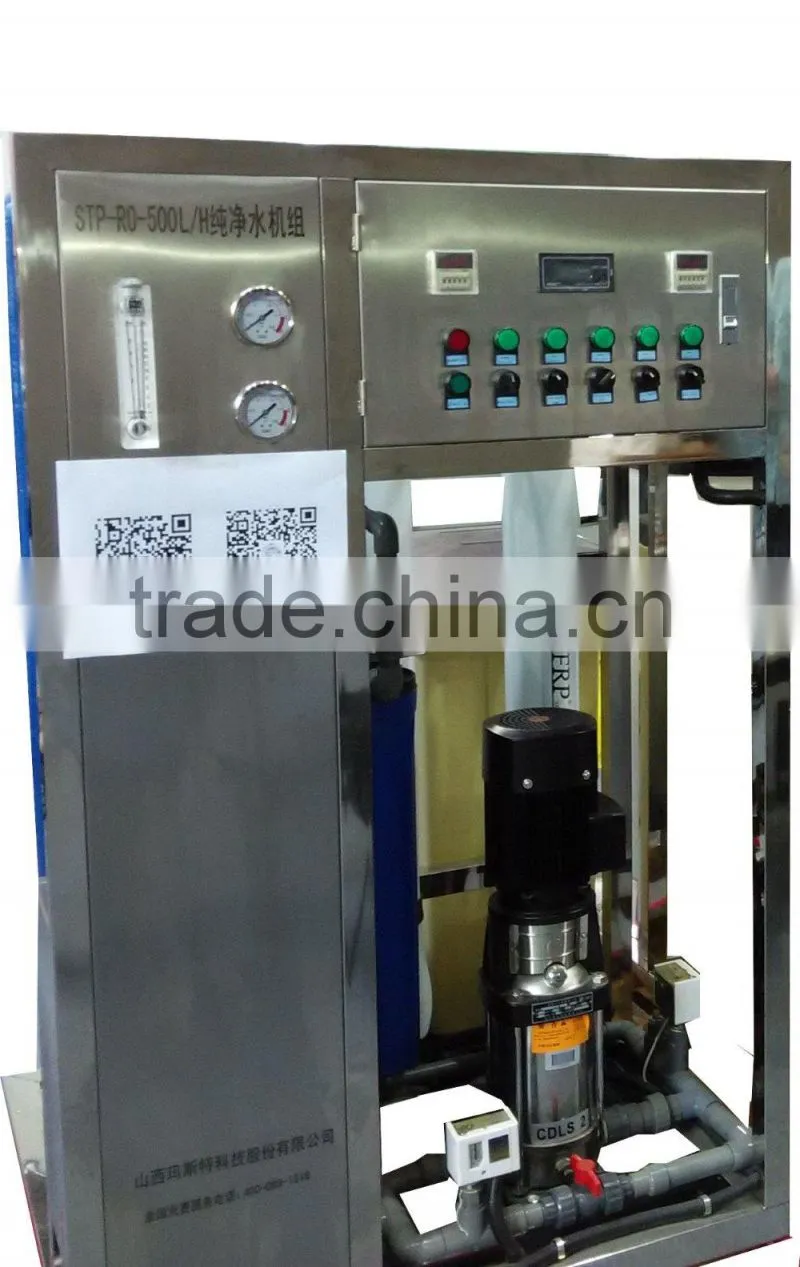

RF-ZYRO-500L/H | |
Parameter index | |
Product |
Luxurious integrated purified water producing unit |
Model |
RF-ZYRO-500L/H |
Productivity |
500Liter/ H(25°C) |
Input water quality |
TDS≤2000PPM |
Desalting rate |
≥97% |
Recycling rate (purified water;outlet water) |
50~65% |
required temperature |
5~35°C |
Standard rated power |
|
Water Pretreatment part | |
Quartz Stand filter |
SUS304 stainless steel tank |
Active Carbon filter |
SUS304 stainless steel tank |
Softener |
SUS304 stainless steel tank |
Sophisticated filter |
SUS304 stainless steel tank and 5μm, 20 inches and 3 pieces of filter cartridges |
High pressure pump |
China nanfang |
Multi-stage pump |
China nanfang
|
RO Treatment part | |
membrane |
4040 RO Hydranautics membrane,2 pieces of filter membranes |
Shell |
SUS304 stainless steel |
Accessories | |
material |
SUS304 stainless steel |
Electronic parts |
programmale logic controller |
Device for option |
Chemical measurement system ,uv sterillizer,ozone generator,The built-in membrane washing device. |
