The main targets of softener water unit are suspension, mechanical waste such as viscose debris particles, colloidal silica, microorganisms, active chlorine, and organic substance, which have an adverse impact on the follow-up treatment. The result of pretreatment directly affects technical and economic effect and long-term safe operation of electricity dialysis, reverse osmosis, ion exchange and so on. It is an important stage in water treatment.
bottled five stage ro water filter system, water filter system
1.original tank(depending on the circumstances to select)
Overcome the instability of the water supply pipe network. Ensure that the entire system of water supply stable and continuous. It can be providing a guarantee to the reliable performance of the device long-term also. Control (depending on the circumstances to select). Preparations high float valve.
2.raw water pump
Provide the necessary pressure to all pretreatment equipment. According to pretreatment equipment design pressure drop. Maximum pressure on each piece of equipment can not be less than 0.5MPa.determine the original water pump working pressure.
3.Quartz sand filter
Containing very fine particles of dust, humus, starch, cellulose and bacteria, algae and other microorganisms, these impurity particles with water to form the body of the sol state, showing the sedimentation stability and aggregate stability, due to Brownian motion and electrostatic repulsion usually can not use the gravity of natural sedimentation to remove. There by reducing the turbidity of the water. The quartz sand is made from natural quartz by crushing, washing, drying, and second filter, no impurities, no angle, density, high mechanical strength contained sewage capacity line to use the long cycle. It is a good material for chemical water treatment.
4.activated carbon filter
Reverse osmosis water in addition to the requirements of SD1<5. but also have another water indicators of residual chlorine<0.1mg/L. The activated carbon filter has two functions:
5.Lon exchanger
Sodium ion exchange ion exchange resin of Na+ to replace the water of Ca2+,Mg2+ to the water hardness <0.035 milligram/L. the raw water hardness decreased become soft water. Sodium ion exchanger made by ion exchange tanks adapter. Central tube, water inlet and outlet,
.pipeline is equipped with cutoff valves, for controlling the flow of water. It can provide output value of soft water to users.

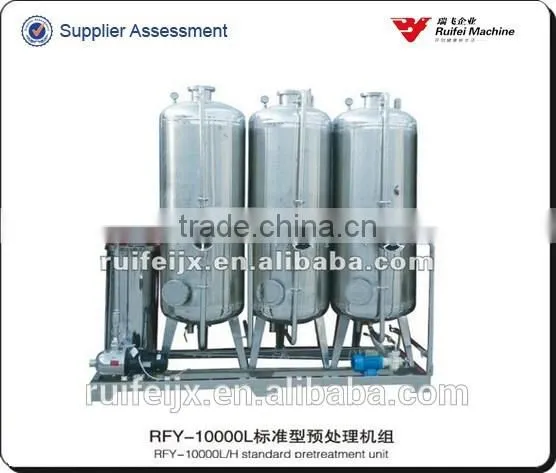

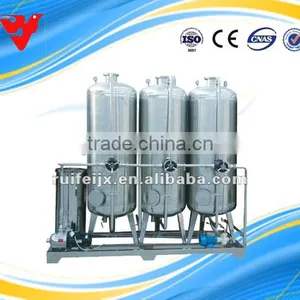

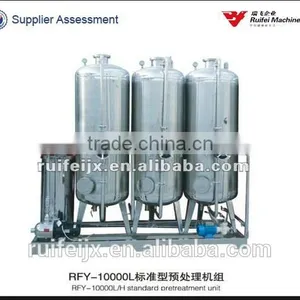

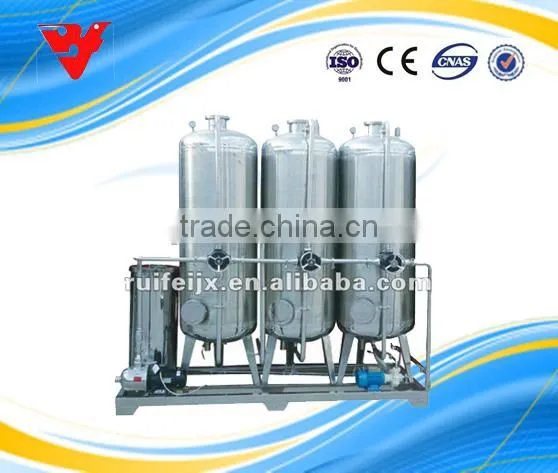

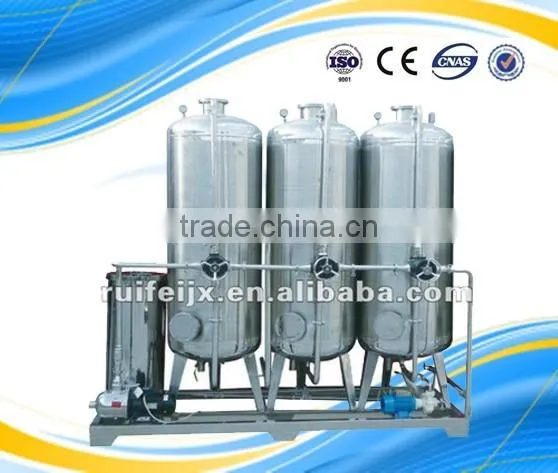

Pure water machine parameter:
RF-RFY-10000L/H | |
Parameter index | |
Product |
Standard water pretrement filter unit |
Model |
RF-RFY-10T/H |
Tank material |
Sus304 stainless steel |
Quartz sand fiter |
Outer size: 750*2150mm Sus304 stainless steel manual valve control |
Active carbon fiter |
Outer size: 750*2150mm Sus304 stainless steel manual valve control |
softener |
Outer size: 750*2150mm Sus304 stainless steel manual valve control |
Salt water tank |
Capacity:300L material: PE |
Origial water pump |
1.8KW |
Pipe fitting,valve |
Material:sus304 stainless steel , |
Outer size |
2950*800*2300mm |
Ruifei had provided turn key scheme and solutions for customers, and also provide consultation and other information about tofu, soy milk and food process. We assure that:
- workers trainning, false solution.
-
Replace and install parts unless the need to replace arises in the opinion of the
Seller from any mistake or misuse by the end user. - Replace and install or repair any Products which the manufacturer accepts as defective.
- Respond orally to requests for technical assistance from the end user within 24 hours, and where necessary provide technical intervention within 5 working days.
