Mobile Alluvial Placer Gold Processing Machine

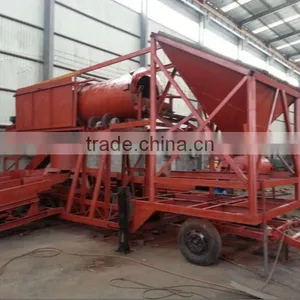

Mobile Alluvial Placer Gold Processing Machine photo-1
US$ 1,000 - 65,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Gravity Separator
Production Capacity:
96%
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Gravity Separator
Production Capacity 96%
Place of Origin Shandong, China
Brand Name ball sorting machine
Model Number HA5796
Voltage 110V-380V
Power(W) 75 KW
Dimension(L*W*H) 8300*2400*4200mm
Weight 15 ton
Warranty 1 year
After-sales Service Provided Overseas service center available

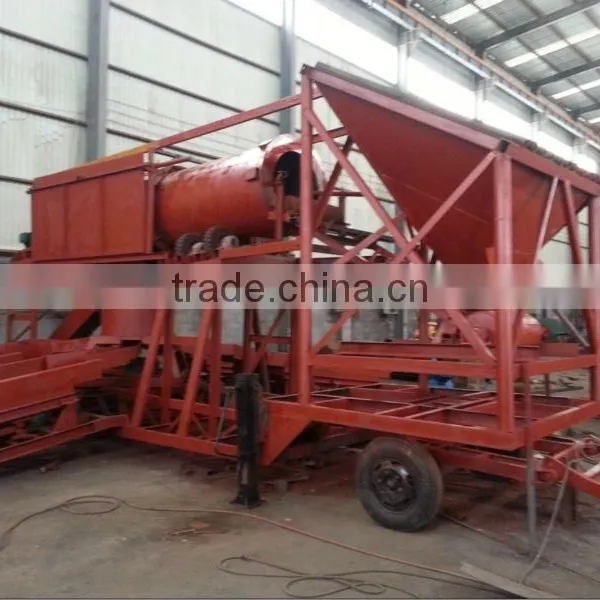

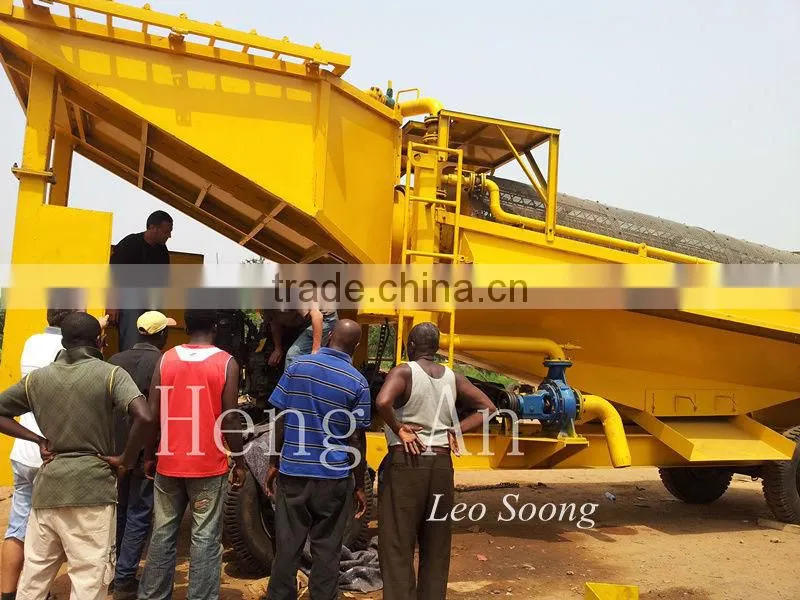

1. Mobile alluvial placer gold processing machine
mobile alluvial placer gold processing machine
  • Weifang Heng An Imp&Exp Co., Ltd
  •  Parent Company: Weifang Heng An Radiator Group Co., Ltd (Founded in 1975)
  • China Top Gold Mining Equipment Manufacturer
  • For Gold Mining, Gold Washing, Gold Panning!
mobile alluvial placer gold processing machine




2. Mobile Gold Trommel

mobile alluvial placer gold processing machine

Main Parameter
Model  GDTJ-50 GDTJ-100 GDTJ-200 YDTJ-100 YDTJ-200
Performance
Dimension(L*W*H) (mm) 7000*2000*3000 7000*2200*3600 7800*3000*4000 8300*2400*4200 9800*3000*5175
Processing capacity (t/h) 30-50 70-100 140-200 100-300 300-500
Main Power
Diesel engine generator 24KW  30KW 40KW 50KW 75KW
Trommel Screen
Size (dia.*length) 1000mm 1200mm 1200mm 1500mm 2000mm
Feeder Hopper
Size (mm) 2000*2200 2200*2500mm 3000*2500mm 3000*2200mm 3800*3000mm
Water System
Pump power 7.5kw 15kw 22kw 22kw 30kw
Water flow 100m3/h 140m3/h 230m3/h 224m3/h 240m3/h
Optional Equipment



3. Roughing:Gold Sluice Box

Most alluvial gold mine are using Sluice for roughing. Fine gold are using gold concentrator.

  • Fixed Sluice

mobile alluvial placer gold processing machine

Fixed sluice are simple design, no need for power, big capacity, for coarse granule, big concentration ratio, easy maintain and easy use. But high strength work are for sluice cleaning. Fixed Sluice can do nothing for fine gold. Generally, fixed sluice gold recover rate is lower than 50%.



Fixed Sluice come with Gold Carpet.

  • Fluctuate Sluice

mobile alluvial placer gold processing machine



Due to high recover rate and low price, fluctuate sluice is more and more popular in gold mining market. More and more gold mining company disuse old fixed sluice, and buy fluctuate sluice.



Fluctuate sluice is easy and fast for cleanning. It only take 10-15 minutes to cleaning and recover gold sand, every 6 hours.





4.  Concentrating:Gold Concentrator

mobile alluvial placer gold processing machine



Model

STL19

STL30

STL60

STL80

STL100

Capapcity T/H

0.25-0.30

3-5

15-20

40-50

80-100

Feed particles mm

0-3

0-4

0-6

0-6

0-6

Feed density %

0-50%

0-50%

0-50%

0-50%

0-50%

Recoil of water T/H

1.5-2

4-6

10-15

17-25

40-60

Concentrate production

 (kg per time)

2-3

10-20

30-40

60-70

70-80

Motor Power kw

0.75

3

7.5

11

18.5

Cone rotational speed

800

600

460

400

360

Water Pressure MPa

0.04

0.1

0.16

0.18

0.2

Overall Size mm

790×785×790

1150×1360×1250

1970×1670×1750

2300×1800×2200

2500×2000×2400

Weight

300kg

500kg

1300kg

1800kg

2800



5.  Gold Shaking Table

mobile alluvial placer gold processing machine

We produce high proformance but low price shaking table.
