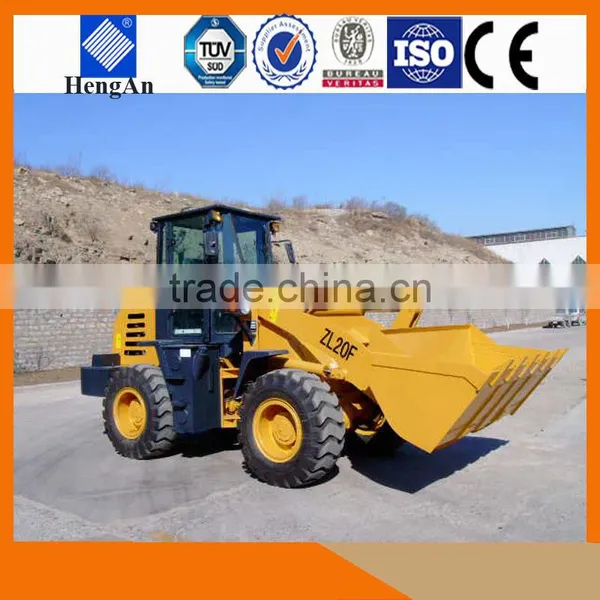

ZL-20 Small Wheel Mini Loader 2 Ton Capacity

Name: ZL-20 Small Wheel Mini Loader 2 Ton Capacity
Brand: Heng An
SKU: 137621845
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Heng An

Model Number:

ZL-20F

Weifang Heng An Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Heng An

Model Number ZL-20F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5000*2000*2600

Rated Load 2000KG

Certification iso

Warranty CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

mini loader
ZL-20 for 2 tons
with famous brand motor,big power.
novel appearance and model, capacious operator cabin.

small loader

ZL-20 small wheel mini loader 2 ton capacity

SPECIFICATIONS	SZ-18	SZ-20
MAX.DUMPING HEIGHT	2800mm	3200mm
MAX.DUMPING DISTANCE	1000mm	1000mm
MAX.LIFTING HEIGHT	3700mm	3800mm
MIN.GROUND CLEARANCE	230mm	350mm
DISTANCE BETWEEN AXLES	2100mm	2200mm
TREAD	1450mm	1600mm
OVERALL DIMENSION(LWH)	500018002600mm	500020002600mm
ENGING MODEL	4100	4102
RATED POWER	44KW	47KW
HYDRAULIC SYSTEM WORKING PRESSUR	16MPA	16MPA
MAX.FLUX	50ml/r	50ml/r
TOTAL WEIGHT	4000kg	5000kg
RATED LOADING MASS	1800kg	2000kg
BUCKET CAPACITY	2m³	2m³
GRADEABILITY	25%	25%
MIN.WALKING SPEED	10km/h	10km/h
LIFTING TIME OF MOVABLE ARM	4S	9S
SUMMATIONAL TIME	9S	15S
LIFTING TIME OF MOVABLE ARM	2.5S	6S
MAX.WALKING SPEED	25km/h	25km/h
MAX.GROUND CLEARANCE	23kn	23kn
MIN.GROUND CLEARANCE	4500mm	4500mm
