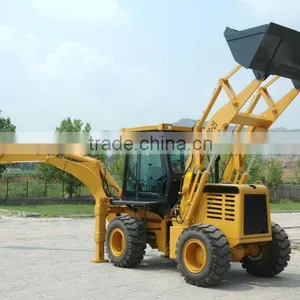

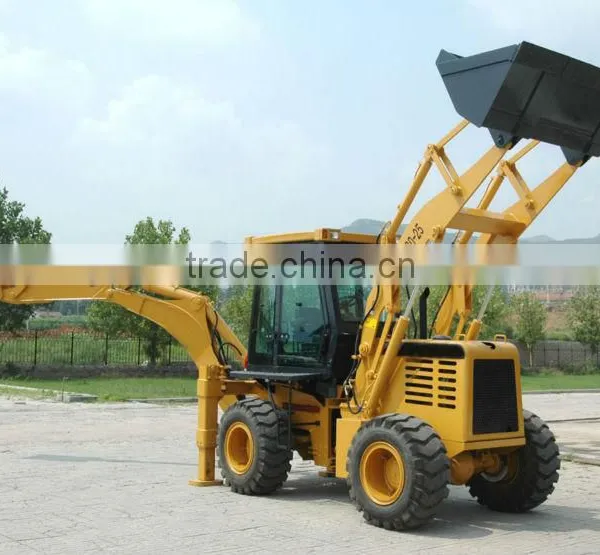

backhoe loader wz30-25

backhoe loader wz30-25

Main Technical Specification

1 system pressure

  load hydraulic system                                18Mpa

  dig hydraulic  system                                20Mpa

  steering hydraulic system                              12Mpa

2 system flow                                           120L/min

3        four-wheel drive ,whole hydraulic system

4 total operating weight                                   7600kg

5maximum speed                                        22Km/h

6 maximum gradient capacity                          30°

1 loading bucket capacity                            1m3

2 rated loading                                       1800KG

3maximum articulated height of bucket               3400(mm)

4 bucket discharge height                              2795(mm)

5bucket discharge distance                             1048(mm)

6loading lift capacity                                  25KN

7 bucket hydraulic translation function                 yes

8 bucket lift time                                      6.8s

9 bucket lower time                                    2.5s

10bucket discharge time                                1.2s

11 maximum tractive force                                 39KN

12 maximum breakout force                              38KN

1backacter bucket capacity                                 0.3m3

2 backacter discharge height                            3878(mm)

3 maximum digging depth                             4080(mm)

4 maximum digging radius                             5688(mm)

5 bucket slewing angle                                190°

6 bucket digging capacity                                46KN
