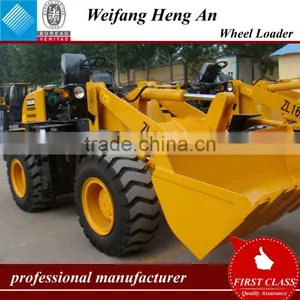

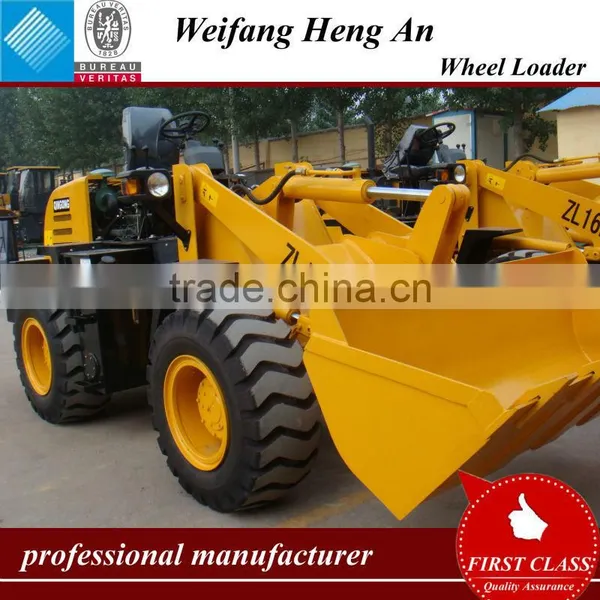

zl-16f mini loader
- 300 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Brand Name: | SAM | Model Number: | ZL-16F |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 5182*1910*2712 | Rated Load: | 1600KG | Certification: | CE ISO |
Warranty: | 12Months | After-sales Service Provided: | Overseas service center available |
Product Description
loader
Performance | 1 | rated loading | 1600kg |
2 | overall weight | 4800kg | |
3 | rated bucket capacity | 0.9m3 | |
4 | maximum tractive force | ≥34KN | |
5 | maximum breakout force | ≥51KN | |
6 | maximum grade ability | 30°C | |
7 | maximum dump height | 2330mm | |
8 | maximum dump reach | 800mm | |
9 | overall dimension (L×W×H) | 5182×1910×2712mm | |
10 | minimum turning radius | 4367mm | |
Engine | 11 | model | Wei chai ZH4100G14-3 |
12 | type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
13 | No. of cylinder-bore/stroke | 4—100×125mm | |
14 | rated power | 45kw—2200r/min | |
15 | maximum torque | 250N.m | |
16 | min fuel-consume ratio | ≤243g/kw.h | |
Transmission system | 17 | torque converter | YJ1—26501 |
18 | gearbox mode | Countershaft power-shift | |
19 | gear shift | 2 forward shift 2 reverse shift | |
20 | maximum speed | 24km/h | |
Drive axles | 21 | main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 | decelerating mode | Single stage planetary type | |
23 | wheelbase (mm) | 2150mm | |
24 | wheel tread | 1440mm | |
25 | ground clearance | 310mm | |
Hydraulic system | 26 | system working pressure | 16MPa |
27 | boom lifting time | 4.8s±0.2s | |
28 | total time | 9.2s±0.5s | |
29 | fuel tank capacity | 80L | |
30 | function of leveling automatically | yes | |
Brake system | 31 | service brake | air assist disc brake on 4 wheels |
32 | parking brake | flexible shaft operated external drum | |
Tyre | 33 | type specification | 16/70—20 |
34 | front tyre pressure | 0.22Mpa | |
35 | rear tyre pressure | 0.18Mpa |
wheel loader 16F
