Specifications
MC55i modem with RS232 interface1.Based on Cinterion(Siemens) module MC55I
2.850/ 900/1800/1900MHZ
3.with TCP/IP stack

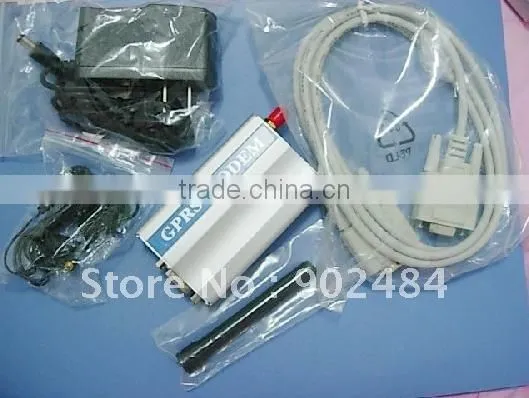

MC55i modem with RS232 interface
Product description:
Industrial design
Aluminum casing
Wireless access to internet
Based on Cinterion(Siemens) module MC55I
with TCP/IP stack
Internet Services: PPP,TCP, UDP, HTTP, FTP, SMTP, POP3
850/ 900/1800/1900MHZ
Comply with ETSI GSM phase 2+
3V SIM card slot
DB9 RS232 interface
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
GPRS Class 10
Antenna with high sensitivity
Always on-line
Output Power:
Class 4(2W @850/ 900MHz)
Class 1(1W @ 1800/1900MHz)
Input voltage:5V-35V DC
Input current:1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature :-20 to+55 degrees
Storage temperature:-25 to +70 degrees
Size:85*54*25mm
Weight:110g
Accessories: AC/DC adaptor, RS232 cable, antenna, 2 mounting plates, CD
Specification for GPRS data
Transmission:
GPRS class 10: max. 86 kbps (DL)•
Mobile station class B& #8226;
PBCCH support& #8226;
Coding schemes CS 1-4& #8226;
Specification for CSD data
Transmission:
Up to 14.4 kbps& #8226;
V.110& #8226;
Non-transparent mode& #8226;
USSD support& #8226;
Specification for SMS:
Point-to-point MO and MT& #8226;
SMS cell broadcast& #8226;
Text and PDU mode& #8226;
Specification for fax:
Group 3, class 2 and class 1& #8226;
