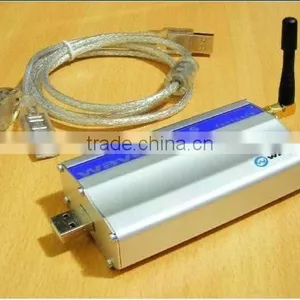

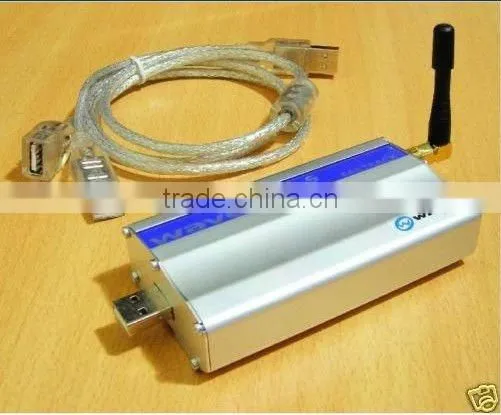

GSM/GPRS industrial modem based on Wavecom Q2403A

Description

GSM GPRS Modem, Wavecom chipset:2403A,Interface: RS232,Without TCP/IP Stack

Specifications

Model GPRS-2403R

Design Industrial Design, Aluminium Casing

Based On Based on WAVECOM Module Q2403A

Band 900/1800 MHz, in compliance with ETSI GSM Phase2 + Standard

Internet Wireless Access to internet

TCP/IP stack NO

AT Commands Remote control GSM 07.07 & 07.05

Interface DB-9 RS232 Serial Port

SIM Slot 3 Volt SIM Card slot

GPRS Class GPRS Class 8

Enhanced Functions GPRS link detection and redial (work with Microsoft dialup software) Support dialup control

Transmitting Speed Maximum Transmitting Speed 115.2 Kbps

DTMF Yes

Work Send and Receive SMS, Data, FAX,E-mail Voice, MMS

Data Transfer GPRS Class 8 (up to 85.6Kbps) Full PBCCH support GPRS mobile station, class B CSD up to 14.4Kbps USSD Non transparent mode V.110 Coding scheme CS1, 2, 3, 4

SMS Point-to-point MO and MT SMS cell broadcast Text and PDU mode

Antenna Male SMA connector

Output Power 900MHz 2W (Class 4)

1800MHz 1W (Class 1)

Input Voltage 5V to 24 V DC

Input Current 1A to 2 A

Working Temp. (-20C to +60C)

Store.temp. (-25C to +70C)

Size 73*54.5*25.5mm

Weight 80g

Accessories AC-DC Adapter, RS232 Cable, 2 mounting plates, Antenna

ORDERING INFORMATION

AG-2403R RS232 Interface GPRS Modem

AG-2403U USB Interface GPRS Modem

AG-2403P PCI Interface GPRS Modem
