Specifications
MC35I terminal1.Dimension: 33.9 x 35.0 x 3.3 mm
2.dual-band : 900/1800
3.Size: 54.5 x 36 x 6.7mm

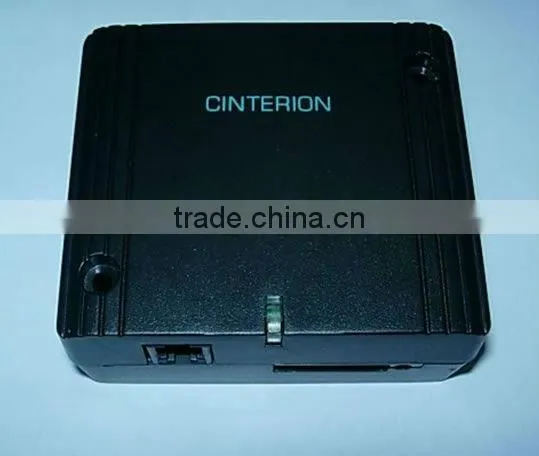

GSM GPRS terminal MC35I
Terminals are an easy and fast way to add M2M communication capabilities to an application. The terminal Products can be connected via standard interfaces to
the application.
·Plug-in and play functionality
·R&TTE, GCF, e-mark (PTCRB, FCC, IC: TC65T)
·Standardized interfaces
·Integrated SIM card holder
Detailed Product Description
GSM GPRS terminal MC35I
made by MC35I module,
dual-band : 900/1800
Dimension: 33.9 x 35.0 x 3.3 mm
General specfication:
Siemens MC35I/MC39I GSM GPRS communication module
Technology feature:
1. Support dual-frequency, EGSM900 and GSM1800, support digit, voice, short message and fax
2. low power: Current dormant for 3mA support three languages coding transfer rate
3. Hands-free system, certification of standard agreement, adopt GSM Phase2/2+ standard
Characteristic:
Transmit information content: the voice and data
Power supply: single power 3.3 V - 5.5 V
GSM900MHz and DCS1800 band: the dual-frequency MHz (Phase 2 +)
Power: 2W GSM900MHz (4) DCS1800MHz scale-up 1W (1) scale-up
SIM card connection mode: external
Antenna: the antenna connector external antenna
Temperature range: working temperature: - 20'C + + 55'C to storage temperature: - 30'C + + to 85'C
The working current loss: call 300mA mode (typical values) idle mode: 3.5 mA (maximum 100 mu A pattern: (maximum)
Speech decoding standard: three rates: half speed (ETS 06.20), full speed (ETS 06.10), and enhanced at (ETS06.50/06.60/06.80)
Short message: MT, MO, CB, and PDU mode
Size: 54.5 x 36 x 6.7mm
Audio interface: analog signals (the microphone, earphones, handset-free handle)
The communication interface: RS232 (instructions and data transmission) two-way
SIM card operating voltage: 3V / 1.8 V
Telephone directory function: stored in the SIM card
Module reset: use AT command or power lost reset
Serial communication baud rate: 300bps... 115kbps
Automatic baud rate scope: 4.8 KBPS... 115kbps
Download software functions (improved service and maintenance): through RS232 or SIM interface
Can realize real-time clock: 32.768 clock frequency (KHz)
The timer function: available AT command programming
