Good Offer New and Original Quad Band Gsm Module Sim900d
US$ 10 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Simcom
Model Number:
Sim900
Payment & Shipping
Payment Methods:
Port of Shipment:
hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UC864-K Compact GPS Module GSM Module Yanmar TractorNegotiableMOQ: 2 Pieces -
GE863-GPS Embedded GSM Module GPRS Modem Gps BoardNegotiableMOQ: 2 Pieces
-
Hotselling Tri-band in Stock Fast Delivery GSM Module Mc55i Module Gsm Module KitNegotiableMOQ: 5 Pieces
-
Hot Selling Gsm Gprs Module Sim900 Quad Band M2m Gsm Module in Stock Fast DeliveryNegotiableMOQ: 5 Pieces
-
Hot Selling Gsm Gprs Module Sim900 Quad Band Small Size Gsm Module in Stock Fast DeliveryUS$ 10 - 15MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Simcom
Model Number
Sim900
Good offer new and original Quad band gsm module sim900d
Product Description

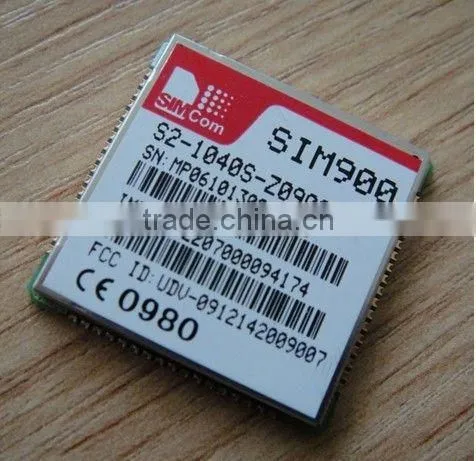

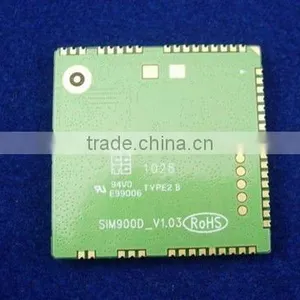

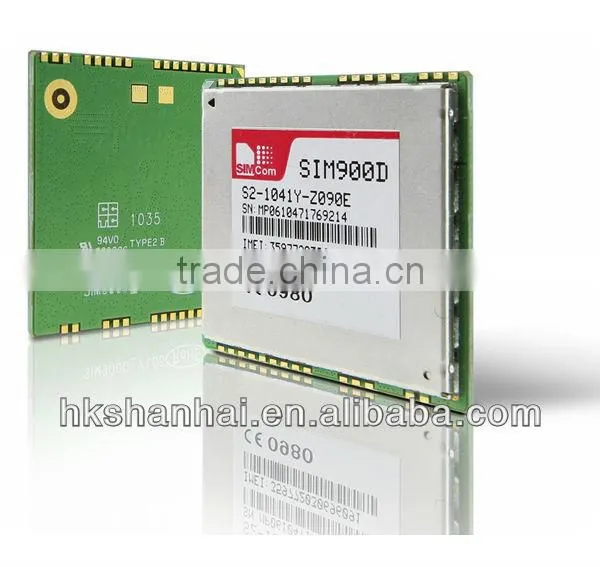

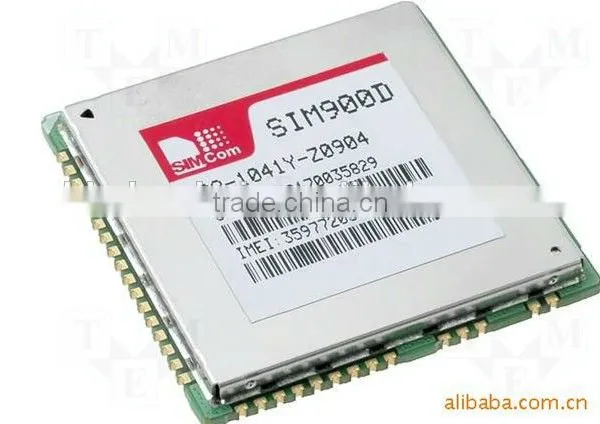

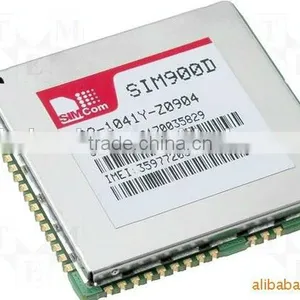

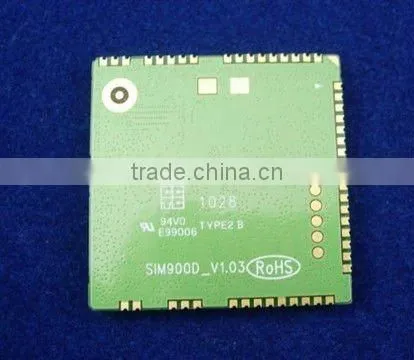

| SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating ARM926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. |
| Featuring an industry-standard interface, the SIM900 delivers GSM/GPRS 850/900/1800/1900MHz performance for voice,SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x3 mm, SIM900 can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design. |
* Quad-Band 850/ 900/ 1800/ 1900 MHz
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W @850/ 900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24mm x 24mm x 3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40°C to +85 °C
* GPRS multi-slot class 10/8
* GPRS mobile station class B
* Compliant to GSM phase 2/2+
- Class 4 (2 W @850/ 900 MHz)
- Class 1 (1 W @ 1800/1900MHz)
* Dimensions: 24mm x 24mm x 3mm
* Weight: 3.4g
* Control via AT commands (GSM 07.07 ,07.05 and
SIMCOM enhanced AT Commands)
* SIM application toolkit
* Supply voltage range : 3.1 ... 4.8V
* Low power consumption: 1.5mA(sleep mode)
* Operation temperature: -40°C to +85 °C
Specifications for Fax
* Group 3, class 1
* Group 3, class 1
Specifications for Data
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
* GPRS class 10: max. 85.6 kbps (downlink)
* PBCCH support
* Coding schemes CS 1, 2, 3, 4
* CSD up to 14.4 kbps
* USSD
* Non transparent mode
* PPP-stack
Specifications for SMS via GSM/GPRS
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
* Point to point MO and MT
* SMS cell broadcast
* Text and PDU mode
Software features
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)
* 0710 MUX protocol
* embedded TCP/UDP protocol
* FTP/HTTP( available at late July ,2010)
* FOTA ( available at July ,2010)
* MMS (available at July ,2010)
* Embedded AT (available at Q3,2010)
Specifications for Voice
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
- Half rate (HR)
- Full rate (FR)
* Tricodec
- Half rate (HR)
- Full rate (FR)
- Enhanced Full rate (EFR)
* Hands-free operation
(Echo suppression)
* AMR
- Half rate (HR)
- Full rate (FR)
Interfaces
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
* Interface to external SIM 3V/ 1.8V
* analog audio interface
* RTC backup
* SPI interface (option)
* Serial interface
* Antenna pad
* I2C
* GPIO
* PWM
* ADC
Compatibility
* AT cellular command interface
* AT cellular command interface
Certificates:
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* TA
* REACH
* CE
* FCC
* ROHS
* PTCRB
* GCF
* IC
* ICASA
* TA
* REACH
Packaging & Shipping

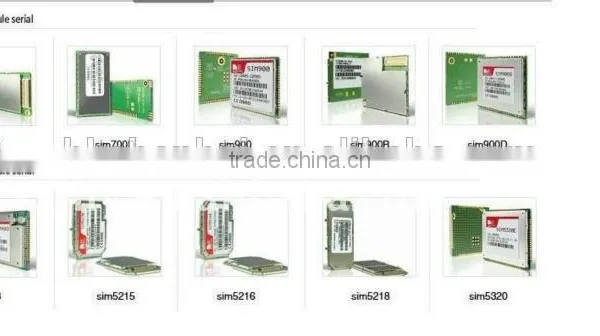

We have other simcom module in stock as follows
