Help CenterReverse Drum Mixer GCS-30
Related Products
Specifications
reverse drum mixer1)Capacity:30t/h
2)Power:Oil/60kw,Coal/92kw
3)Fuel consumption:Coal13-15kg/t;Oil5-7.5kg/t

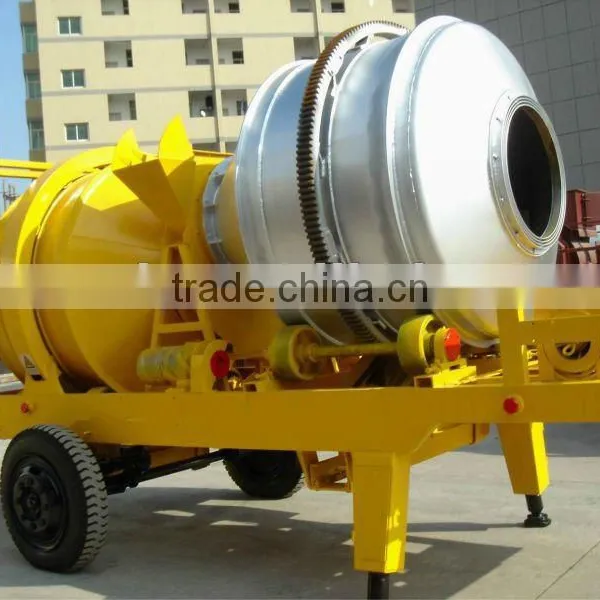

reverse drum mixer-30t/h
1.Integrated design of drying and batching drum,reduce initiate cost for customer.
2.Simple structure,easy operation,drying while drum rotate in counter -clockwise
direction(from burner),discharging while drum rotates in clockwise direction(from burner),and
the wind are swirled in the center of the drum.
3.PLC control,touch screen,auto/manual switchable.
4.Towing chassis for easy transport and installation.
5.Burner is available for coal and oil,at customer's option.
reverse drum mixer
| Type | GCS-8 | GCS-10 | GCS-15 | GCS-20 | GCS-30 | |
| Capacity | 8t/h | 10t/h | 15t/h | 20t/h | 30t/h | |
| power | Oil | 22kw | 25kw | 34kw | 48kw | 60kw |
| Coal | 41kw | 43kw | 56kw | 70kw | 92kw | |
| product temperature | 120-180°C adjustable | |||||
| Fuel consumption | Oil:5-7.5kg/t Coal:13-15kg/t | |||||
| Mixer capacity | Aggregate batcher,storage silo,coal miller,wet filter,bag house filter,control room bitumen heating tank | |||||
reverse drum mixer Auto Production Line
1)Integrated design of drying and batching drum,reduce initate cost for customer.
2)Aggregate feeding.
3)Aggregate discharged into drying drum.
4)Mineral aggergates are continuously lifted in the drying drum,forming"material curtain",and
conducting intensive heat exchange with the flame of the burner,and aggregate is conveyed into
the its elevator.
5)Hot aggregate discharged to mixer drum,QCS Series adopts filer elevator making filler get into
mixer drum,then the more aggregate is lifted and discharged into drying drum.
6)Mineral aggregates,filler and biumen are continuously lifted and uniformly mixed in the mixer
drum,the drying drum and aggregate's elevator continuously cycle work.
7)Asphalt Discharge:Mixer drum ends mixing after hot minteral aggregates being uniformly bound
finished product material is discharged out.
8)If there is the storage silo,finished product material is lifted by its elevator to its storage silo and
discharged into the storage silo and then stored.
If interested,
Please Contact us at
Attn: Ms Vicky/Mr Pan
Tel:86-595-85671788/85697188
Mob: 86-13960255552/15396570511
Email: chenyaqiao(at)/goldencoastltd(at)
