Semi Auto Belts Driven Carton Sealer

Name: Semi Auto Belts Driven Carton Sealer
Brand: JIALIN
Availability: InStock

FOB Price

US$ 1 - 99,999 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	JIALIN
Model Number	JTA-05

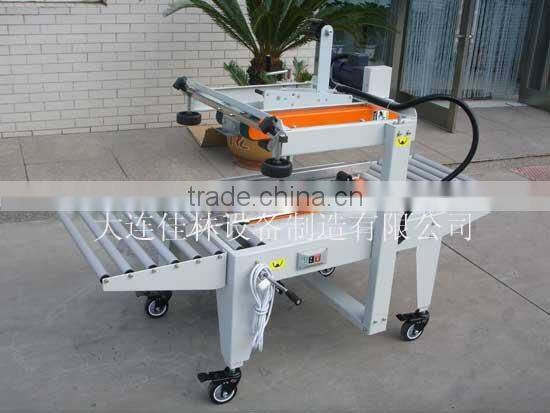

Semi auto belts driven carton sealer
Standard Specification
Model	JTE-05
Carton Size	(L)150-∞(W)130-500 (H)120-500mm
Table Height	Min 650 Max 800mm
Working Speed	300-750ctns/hr
Machine Size	(L)1150(W)880(H)1288mm
Motor	Taiwan Brand, CE certified. Total power is 180 watts,
Belt	imported from Europe.
Pneumatic component	Taiwan AIRTAC
Switch brand	Taiwan Shern Dian, America’s UL certified.
Power	110/220V single phase,50/60Hz or specified by client
Pneumatic	5kg/cm²
Tape Width	48mm,60mm,75mm alternative use
Machine Net Weight	Approx.180kgs
Features: work 24 hours with trouble free per day. Compare with the same type of other company,it helps to save 170~250 USD electricity per year. Adopts international newest technology designs. The parts, electrical and pneumatic components are imported from renowned companies to ensure the high quality of the machine. Automatically adjust the height and the width for different size of carton. Side belts driven, top and bottom sealing, economical and efficient. Work independently or as a part of production line. Key position adopts forming mould and laser cutting. Screw rod is processed by numerically control lathe.
