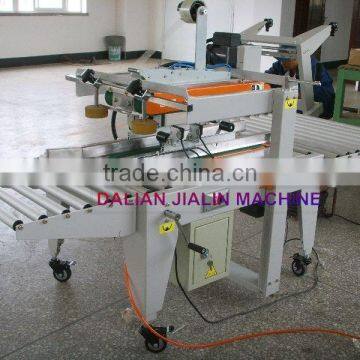

Semi-Automatic Top & Bottom Belts Driven Sealer

Semi-Automatic Top & Bottom Belts Driven Sealer

Standard Specification

Model

JTB-05

Carton Size

(L)150-∞(W)160-500 (H)100-500mm

Table Height

Min 580 Max 800mm

Working Speed

700-1200ctns/hr

Machine Size

(L)895(W)750(H)1200-1600mm

Motor

Taiwan Brand, CE certified. Total power is 180 W,

Switch brand

Taiwan Shern Dian, America’s UL certified.

Belt

imported from Europe.

Power

110/220V single phase,50/60Hz or specified by client

Tape Width

48mm,60mm,75mm alternative use

Machine Net Weight

Approx. 95kgs

Features:

Continuous work 24 hours with trouble free per day. Compare with the same type of other company,it helps to save 170~210 USD electricity per year.

    Adopts international newest technology designs. The parts and electrical components are imported from renowned companies to ensure the high quality of the machine.

     Manually adjust the height and the width for sealing different sizes of cartons.

     Top & Bottom belts driven, top and bottom sealing, economical and efficient.

   Work independently or as a part of production line.

 Adjustment for cartons only needs one minute.

 Key position adopts forming mould and laser cutting.

    Screw rod is processed by numerically control lathe.
