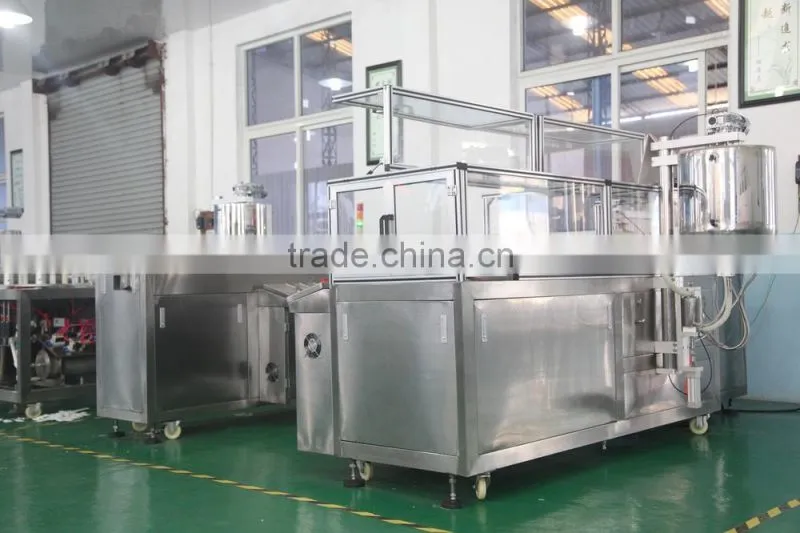

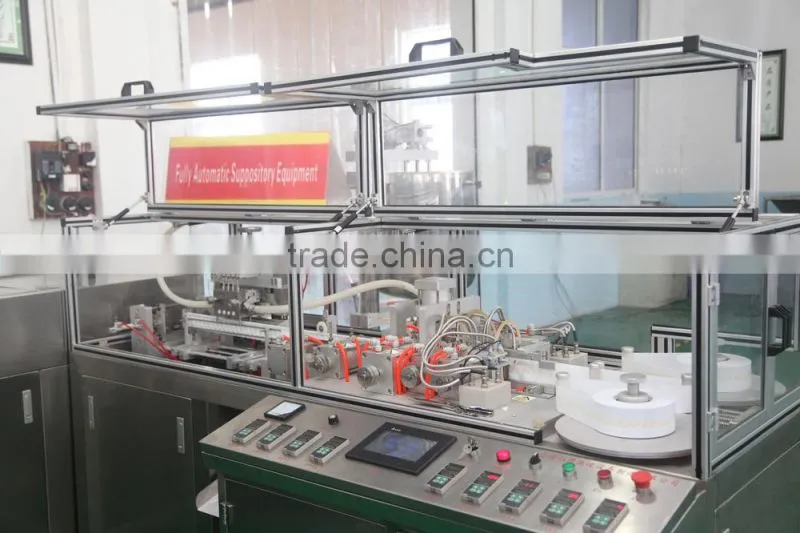

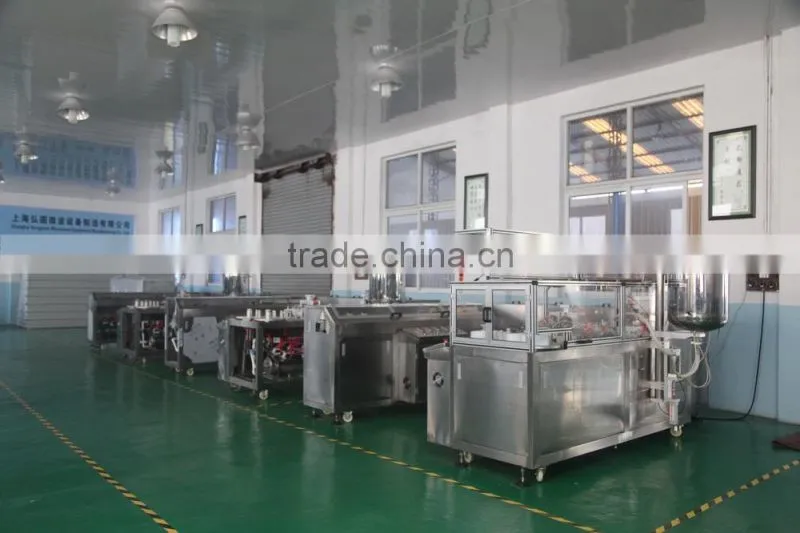

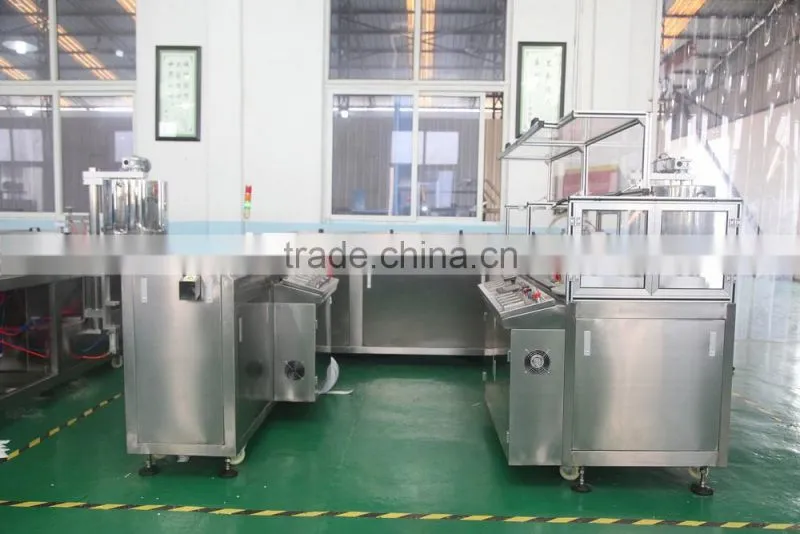

Full Automatic suppository filling and sealing machine

Main application:

The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic production line source of power.  This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film), eliminating unqualified products etc.

Working Principle

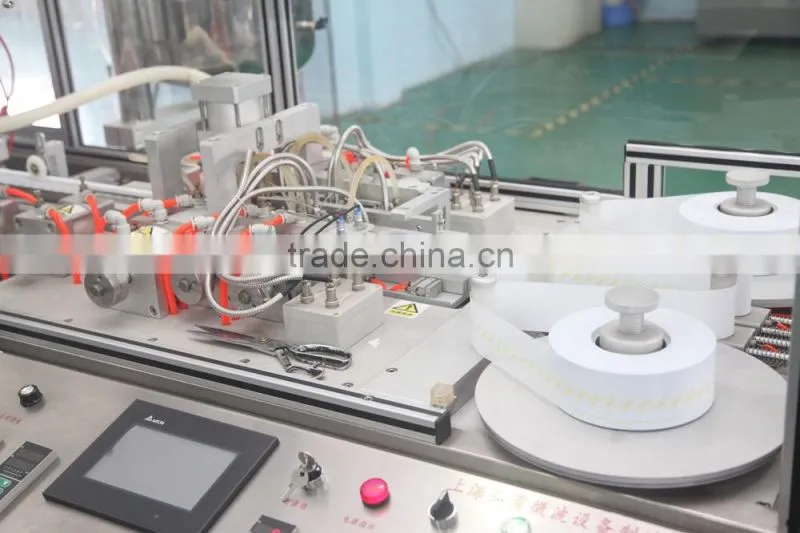

The  rolled plastic sheet material(PVC or PVC/PE) is pressed positively to blow and make a statue to take shap,and enter into filling procedure automatically,stirred equally drug fluid to nul nutshell automatically through high precise dosing pump,and is sheard into multi-stripiso -segment.Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversation from fluid to solid.At last,it will be produced to end product suppository by mending form,sealing,beating batch number and shearing working procedure.

Technical characteristic

1,Using insert filling,accurate in position,non-dribbling drug,non-hanging wall,high precise in counting.

2,Be wide in suitability,can be used to fill high gluing degree gelation group and the traditional Chinese medicine ware.

3.Using PLC written formula control and industry grade person-machine interface operation,possessing characteristics of high degree automation/convenience in adjustment/high precise thermo-control/reliability in action and steady in runing etc.

4,Having big volume storing fluid vessel,laying homeothermia/stirring and fluid surface autocontrol assemblly

5.Relieving worker's physical labor strength for lower position of filling drug fluid ,laying cycling to supply fluid and keeping thermo equipment of channel pathways,and it will ensure drug fluid not be coagulated when machine stop.

6.One side operation and better sight.
