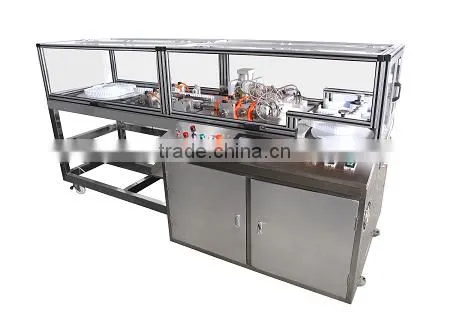

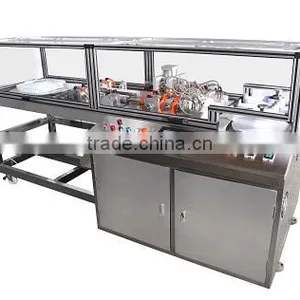

HY-ZK Automatic Suppository Shell Making Machine
US$ 50,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Huayuan
Model Number:
HY-ZK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HY-ZK Automatic Suppository Shell Making MachineUS$ 70,000 - 100,000MOQ: 1 Set -
HY-U 10000pcs/h Automatic Suppository Filling and Sealing MachineUS$ 70,000 - 80,000MOQ: 1 Set
-
HY-U Automatic Suppository Production LineUS$ 60,000 - 70,000MOQ: 1 Set
-
HY-U Automatic Suppository MachineNegotiableMOQ: 1 Set
-
HY-U Automatic Suppositories Filling MachineUS$ 1 - 80,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Huayuan
Model Number
HY-ZK
Application
Liquid
Type
Filling Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Full automatic2.PLC controlling system
3.Forming-filling-cooling-sealing-packing
4.GMP standard
5.CE certification
HY-ZK Suppository shell making machine
It is widely used and can fill substrate and Chinese medicine production with high viscosity; PLC controller and Man-Machine Interface operator, fully automatic; Accurate temperature controller; Smoothly running; ; High capacity, it feeds liquid medicine in a constant temperature cycles and fully automatic to control liquid level, so the liquid will be never solidification. It also can stir the liquid medicine according to the different materials and adjust the speed after cooling. And reject the Non-conforming product; It takes Small occupation area and is easy to adjust.
Main technical date:
| Output | 6500-8000grains | Single grain measurement | 0.5-5ML |
| Volume storing fluid vessel | 50L | Dose tolerance | ± 1% |
| Atmospheric pressure | 0.6Mpa | Air consumption | 1.5m3/min |
| Supply voltage | Three-phase AC 380v | Total power | 7.5kw |
| Water consumption | 800kg/h(recycle) | Total weight | 500kg |
| Dimension | 2750 *1250*1380 (L*W*H) | ||
| Applicable matrix | Synthetic fatty acid glycerides / plastic glycerogelatin / polyethylene glycol, etc. | ||
| Suppository shape | Bullet / torpedo / duckbill-type and other special shapes | ||
