High Quality Suppository Packing Series
- Main Character
- PLC checking function: through PLC online checking function to self-checking and alarm for running stoppage, and show the reason of stoppage in order that the operator remedy it in time.
- Filling part within free static electricity system
- Agitation vat speed adjustment system
- Cooling speed adjustment system
- Cutting gains speed adjustment system
- Notice: finished products can be set 4/5/6/7pcs. The machine can product PVC/PE
- Meet GMP and CE standard
- Operating principle
1.Finalize the design:
Use PVC/PE through clamp structure and pass into molding district to preheat mould ——>making shape mould ——>air filling mould——>membrane making shape. Triangle knife side cut,dotted line cutting.
2.Filling part:
There are 3-6 filling terminal,with embedded type filling for shaped suppository for one time, filling accuracy can get ±1%,there is electrical heating system to keep heat for raw material barrel, and there is mixing motor for raw material, the raw material of charging basket entrance into filling terminal through circulator, and the rest raw material circulate to the barrel for next filling.
3.Cooling part
Whole row is finished filling and passed into cooling shelf, cooling box is set cooling water unit, and cooling air is transformed by four condensers which is into the cooler bin to cool suppository.
4.Seal and print code part:

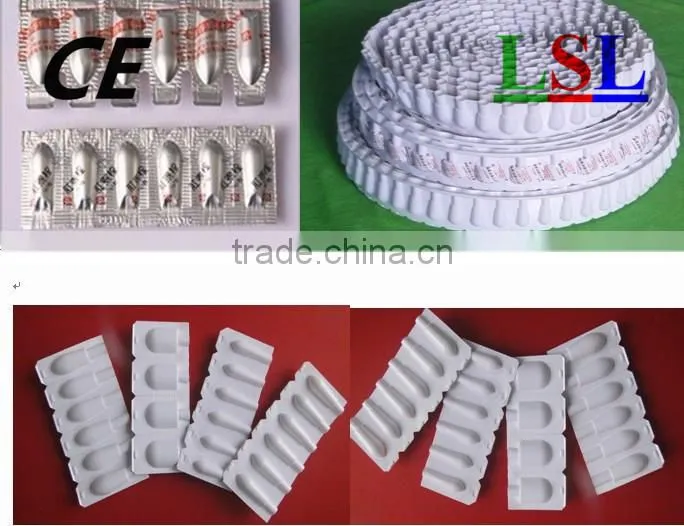

Cooled solid suppository is sent to the seal district: preheat mould——>seal mould——>code print mould. And finished product is cut for 5 grains or 6 grains for a group.(according to customer’s requirement)
Technical data:
| Model | Unit | HY-U Suppository Production Machine |
| Capacity | PCS/Hour | 8000-12000(depending on producing) |
| Total Power | KW | 7.5Kw |
| Voltage, frequency | V | 3PH 380 +/-10% 50Hz |
| Dose per unit | ML | 0.5~5 (depending on product) |
| Deviation | % | <±2 |
| Suppository shape | N/A | Bullet, torpedo, duck-mouth ect(depending on product) |
| Adapting | N/A | Fatty acid glycerin,gelatin,glycol,etc., (depending on product) |
| Volume | L | 50 |
| Air pressure | Mpa | 0.6 |
| Air consumption | m3 | 1.5 |
| Water consumption | N/A | 50kg per circle |
| Total weight | KG | 2000 |
| Machine dimensions | MM | HY-U: 3100*3480*2000mm |
90 DAYS DELIVERY / Fumigating Free Wooden Box
Global Service by Trained Engineer
Shanghai Packing Machinery Co.,Ltd. adopt advanced three-dimensional counting identification technology from CREMER, Precise vibration system imported from PIEY and top line domestic corporations.We mainly supply automatic counting and packing line machinery, which including bottle umcrabler, capping device, cap screwing, labeler, magnetism sealing and ect,.
Our products accuracy and speed is considerably reliable, we bold breakthrough in the structure and processing technology, making standardization and intensive concept of production cost control into pharmaceutical equipment filed effectively. It is able to decrease cost during production. We always comply with the requirements from clients and never stop innovating in excellent integrated services.
We are sincerely expect your inquiries
