Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Pet Food Processing Machinery > Drying Machine

Drying Machine

Name: Drying Machine
Brand: chang gan
SKU: 137284075
Availability: InStock

US$ 50,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

chang gan

Model Number:

DWD

Type:

Grain Processing Equipment

Contact Supplier Request Quote Chat Now

Changzhou No. 2 Drying Equipment Factory Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name chang gan

Model Number DWD

Type Grain Processing Equipment

After-sales Service Provided Engineers available to service machinery overseas

DWD Series Belt Dryer

drying machine description
DWD drying machine series belt drier is a new belt drier, its' techinologh is more advanced.The machine has widly used feilds, because of more reasonable astruction, high heating effacet, steady operation. It is widly used in drying for chemical idustry, organic pigment, dystuff, slag of blast furnace, feed, food and so on.

Principle of work
Raw material to be dried will be spread onto the screen belt through suitable feeding mechanism. When drying, hot air will be forced to input to raw material from up and Iow screen belt, It makes the surface of every particulate become surface to be heated .The area to contact with hot air is increased and the heat conduct area is increased remarkably. The diffused distance of moisture in raw material is shortened. Therefore the effective drying operation can be carried out. Particularly it is suitable for drying raw material that has been pre-formed (The factory can supply series pre-forming equipment, refer to post page). ln a word ,if choose the series drier, it has high stability and energy saving.

Application
It is suitable in drying for pre-shapping paste raw materials, such as pigment ,dystuff and so on.
It is suitable in drying for high naumber ator polymen, ferric oxide, fluor, medicine, flavoring, glue, and other chemical products, fertilizer, feed and so on.

Features
The mount of air ,temperature of heat ,stay time od raw material can be adjusted in order to get the best effect.
The moistrue of finished product can be adjusted.
The raw material is relative static in belt, and so the size and dust will be keeped.
The belt's type will be choose, such as matral mesh or viberated plate.
The belt can be clean,because of the heating room is seperated from drying room.
Accoding to requirst, the Iow plate can be equipped cleaning equipment to remove a little rof aw materials to
outlet.
According the moisture of raw material,customer can choose multi-set to establish.

Technical parameters

itemmodel	DWD1.2×8	DWD1.2×10	DWD1.6×8	DWD1.6×10	DWD2×8	DWD2×10
area of dry m²	9.6	12	12.8	16	16	20
drying section length×belt width length×belt width	1.2×8	1.2×10	1.6×8	1.6×10	2×8	2×10
quantity of unit	4	5	4	5	4	5
tem. of operation	50-150
pressure of steam Mpa	0.2-0.6
consumption of steam Kg/h	120-250	150-375	150-375	170-470	225-600	450-1200
drying time h	0.2-1.5	0.25-1.5	0.2-1.5	0.25-1.5	0.2-1.5	0.25-1.5
evaorating capacity Kg/H₂O	60-160	80-220	75-220	95-250	100-260	120-300
power kW	11.4	13.6	11.4	13.6	19.7	11.77
overall dim. (LxNxH) m	9.77 ×1.5 ×2.83	11.77 ×1.5 ×2.83	9.77 ×2.44 ×2.83	11.77 ×2.24 ×2.83	9.77 ×2.66 ×3.50	11.77 ×2.66 ×3.50
weight kg	4800	5780	5400	6550	6350	7800

Notes: Choosing 2 or more sets to add up area of drying maust base on your capacity and damp of raw material.

Technical parameters

material	pigment	ferric stearate	ferric oxide	antibiotics	flavoring	feed
area of drying m²	32	16	19	19.2	19.2	32
drying strength Kg/h	312	533	533	1200	1200	1200
primary moisture %	65	60	80	35	35	60
final moisture %	2	0.1	1.0	10	10	2
heating source	steam 0.5Mpa	steam 0.5Mpa	steam 0.4Mpa	steam 0.7Mpa	steam 0.6Mpa	steam 0.6Mpa
consumption of the heat Kg/h	500	600	800	950
pre-process machine					700	900
size of material					powder	granule

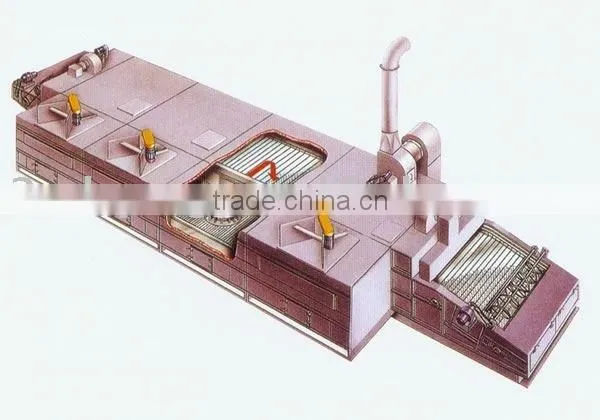

Sketch of structure

Company introduction:

Changzhou No.2 Drying Equipment Factory Co.,Ltd is an old drying enterprise which has 23 years drying history. We have got several patents in different dryers. We have much experience in different drying area. Now it holds more than 100 sets of equipment. The company has more than 100 staff and workers, including 15 engineers, with annual value of production more than thirty-eight million RMB.We attach importance to advanced technology, and have cooperated positively with universities and colleges to develop new products by using new technics. We have continuously developed several key and high-tech products with advanced technology both from domestic and abroad.During the past ten continuous years, the company has been appraised as enterprise with high reputation on contract and credit.Bases on the principle of factualism, innovation and mutual benefit, the enterprise is looking forward to creating resplendence with personages from all circles together.

Certificate and Letters Patent:

Service:

The Warranty Period of the dryer machine shall be 12 months from the date of completion of the installation and commissioning of the Contract.

We will provide some spare parts for free together with dryer before shipping, paid service will be provided for the long term, and we can provide components at competitive price.
