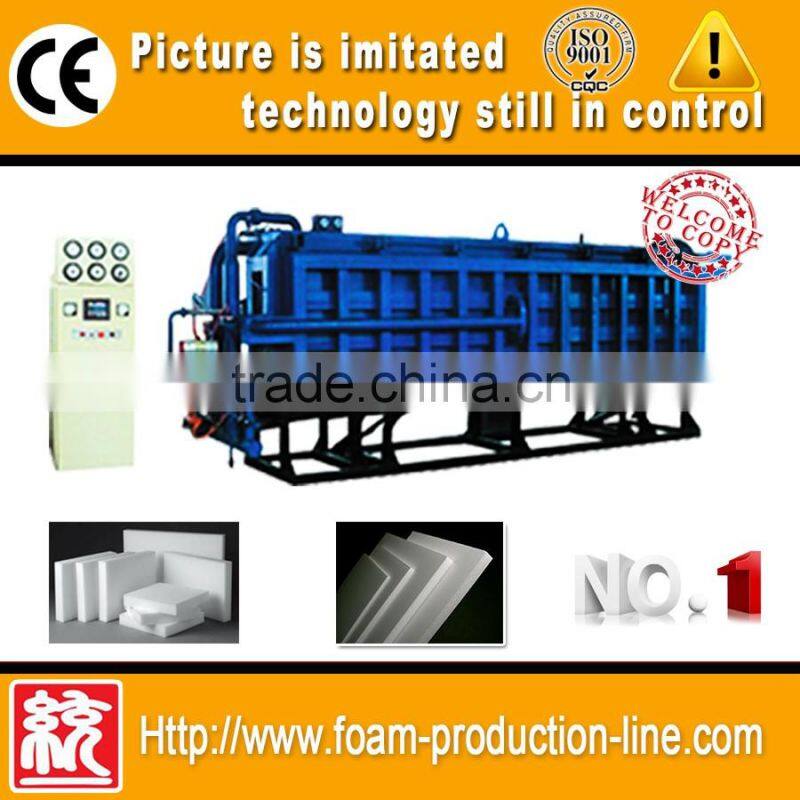

Top performance EPS Automatic Block Making Machine
1.It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
2. The machine adopts PLC and touch screen for automatic mould opening ,mould closing ,material feeding ,steaming ,temperature keeping ,air cooling ,de-moulding and ejecting.
3. The surface of the mould is made of special aluminum ally which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.

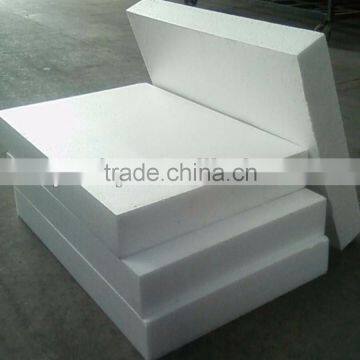

4.Adopting advanced moulding technique ,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block.

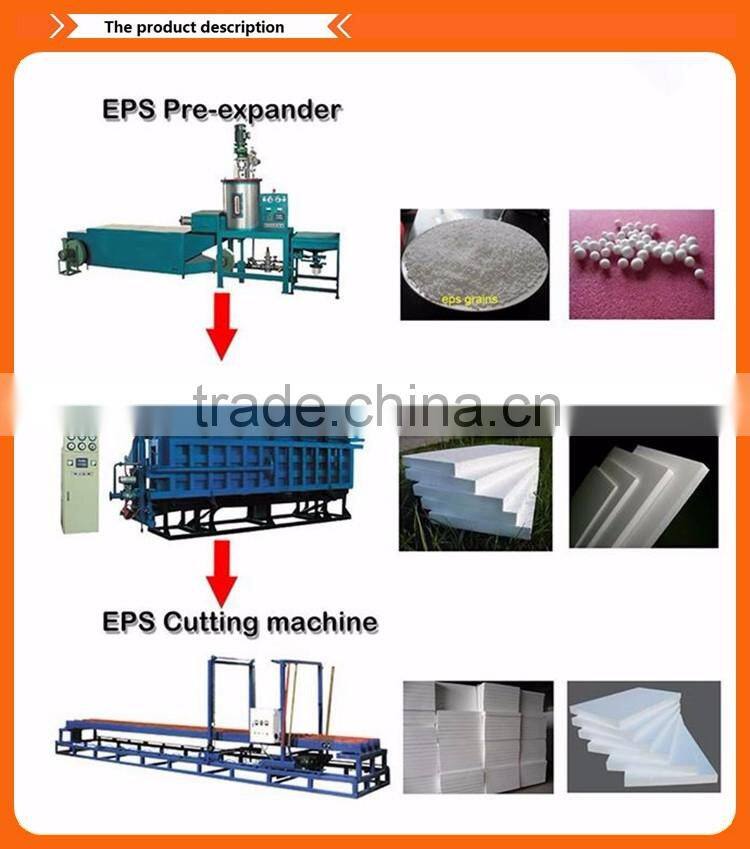

EPS Foam Production Line:
1. EPS Pre-expander (used to make foam beads)
2. EPS Foam Board Machine (used to make foam board)
3. EPS Cutting machine (used to cut foam board)
Top performance EPS Automatic Block Making Machine
Item |
Unit |
PSB-2000 |
PSB-3000 |
PSB-6000 |
PSB-8000 |
Cavity Net Size |
Mm |
2040x1020x530 |
3060x1250x630 |
6120x1250x630 |
8160x1250x630 |
Cavity Volume |
M3 |
1.1 |
2.41 |
4.82 |
6.43 |
Product density/Proportion |
Kg/ M3 |
6--30 |
6--30 |
6--30 |
6--30 |
Steam pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Entrance Diameter for compressed for air |
Mm |
80 |
80 |
150 |
150 |
Entrance compressed for steam |
Mm |
80 |
80 |
100 |
100 |
Power supply |
v |
380 |
380 |
380 |
380 |
power |
Kw |
7 |
7 |
15 |
15 |
Max overall size |
Mm |
3600*2000*2750 |
4500*2150*2950 |
7500*2150*2950 |
9500*2150*2950 |
Weight |
kg |
2800 |
4600 |
9600 |
10600 |

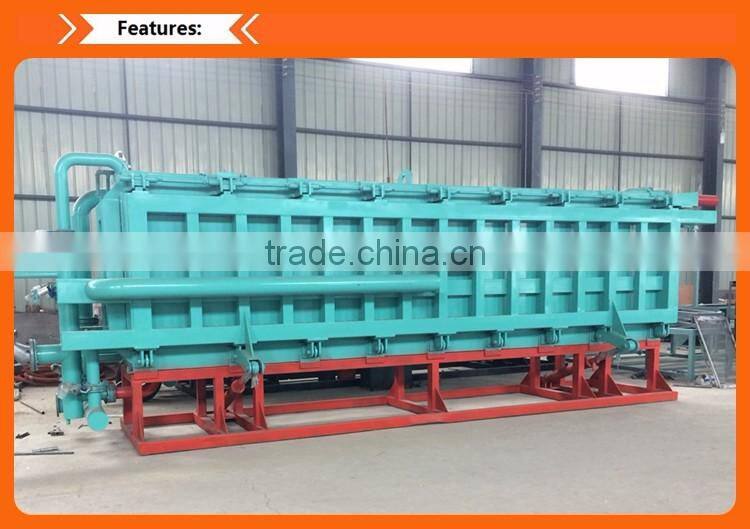

MAIN FEATURES:
1. Performing fully automatic, semi-automatic, middle starting and manual operating mode;
2. Using hydraulic system mold clamping, stable and reliable;
3. The main intake of steam control valve is pneumatic valve, good sealing, and long life;
4. Using the programmable control with color touch screen control, easy to operate;
5. Automatic feeding, convenience and high efficiency;
6. The main components (CPU template, touch screen, etc.) all use international and domestic brands;
7. Forced air-cooled refrigeration, high cooling efficiency, low moisture content;
8. Weighing shelf is available to buy individually according to customer requirements.
Adopts high quality rectangle steel pipe which features in reasonable structure, firm,high intension, without deformation. Equipped with horizontal, vertical and block cutting equipment. Stable movement, precise cutting size and adjustable. Realize three directions cutting.
Top performance EPS Automatic Block Making Machine
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What’s the main market of your company?
A: We have customers all over the world.
6. Q: How much production capacity of your company one year?
A: This depends on your needs.
1. We are widely recognized by customers of the business, the certification authority and dynamic team.We can provide high-quality service.
2. We are the gold supplier.
3. The best quality and the most competitive prices and services.
4. All of our products have the best material.
5. With 11 years of export experience.
Top performance EPS Automatic Block Making Machine
Friends, welcome to China, welcome to unity.
Now have joined trade assurance service to ensure the buyer’s profits--product quality and delivery date, if we breached the contract, you will get the corresponding compensation.
How to contact us?
Longkou Tongyi Machinery Equipment Co., Ltd.
How to contact us?
Tel: 86-0535-8613088
Address: Shuangxu Village, Xinjia Town, Longkou City, Shandong Province China.
