xps foam insulation board extrusion line (TYXPS-135/150)
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Sheet | Plastic Processed: | XPS |
Screw Design: | Double-screw | Place of Origin: | Shandong, China | Brand Name: | TY |
Model Number: | XPS-135/150 |
Product Description
Specifications
xps foam insulation board extrusion line (TYXPS-135/150)1.board width:600-900mm
2.board thickness:20-80mm
3.good insulation
XPS foam insulation board extrusion line(TYXPS-135/150)

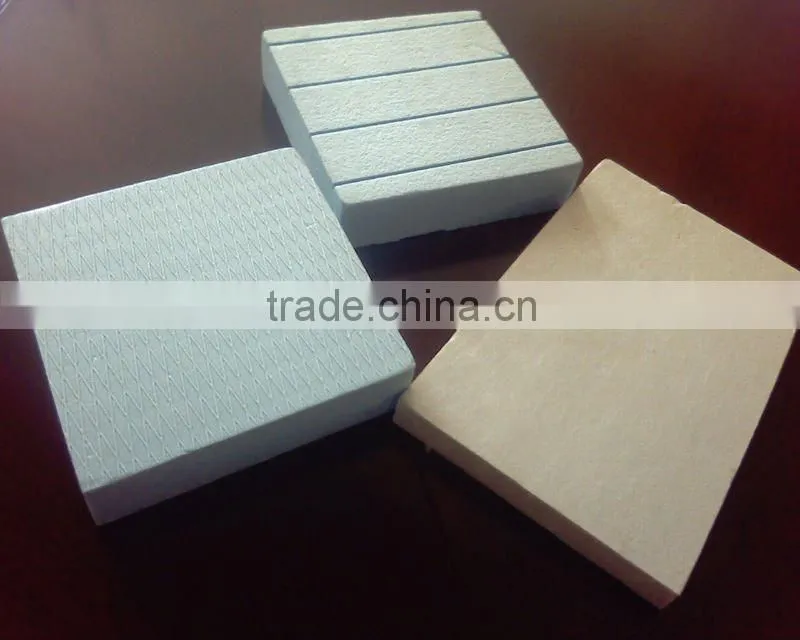

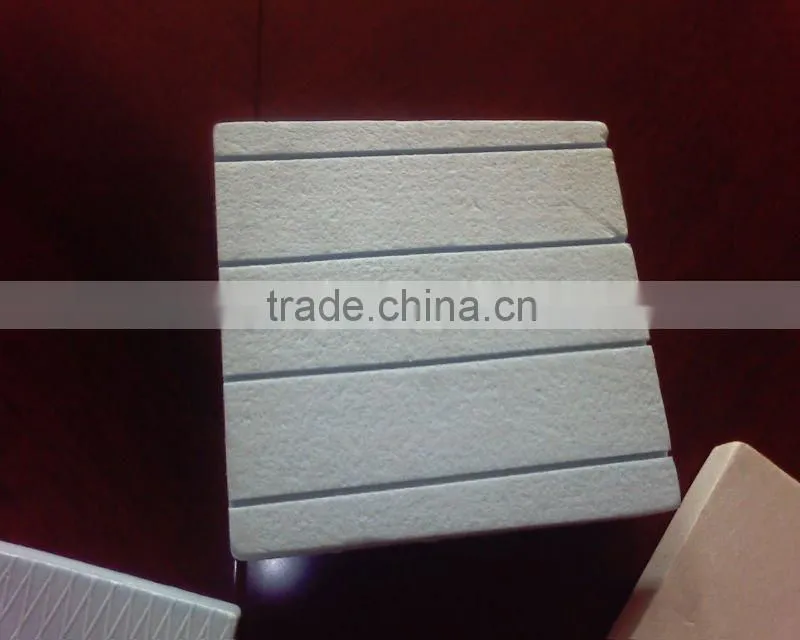

XPS foamed board has good features of heat insulation and heat preservation. It has many characteristics applications such as the followings:
Characteristics:
-- excellent insulation and durability
--waterproof and moisture proof protection
--high mechanical resistance
--excellent compressive strength
--low thermal conductivity
Applications:
--insulation for roofing, wall and foundation
--insulation for under roads/railways/airport runways
--advertising dispalys, signs and decorative raw materials
--waterproof protection
--support for tile installation
--home and industrial applications
--concrete deck/ballasted waterproofing
--concrete wall forming systems
--interior and exterior foundation walls
Main Technical parameters
Model | Unit | TYXPS-135/150 | TYXPS-150/170 | TYXPS-170/200 | |||
Extruder |
| 135/150 | 150/170 | 170/200 | |||
Heating power | kw | 50 | 52 | 58 | 68 | 78 | 100 |
Driving motor power | kw | 75 | 90 | 90 | 110 | 110 | 132 |
Thickness of board | mm | 20-80 | 20-100 | 40-120 | |||
Width of board | mm | 600,900 | 600,900,1200 | 600,900,1200 | |||
Length of board | mm | 1200,1250,2450,2500 | |||||
Edge of board |
| SS flat head (SL lap joint, RC rain groove) | |||||
Output | kg/h | 280-320 | 300-360 | 380-500 | |||
Installed capacity | kw | 300 | 380 | 400 | |||
Dimensions(L×W×H) | mm | 35000×10000×4000 | 35000×10000×4000 | 35000×10000×4000 | |||
Total weight | T | 28 | 30 | 33 |
