Specifications
block form-PLC&English touch screen
-20 Years' Manufacturing Experience
-Lifetime Service

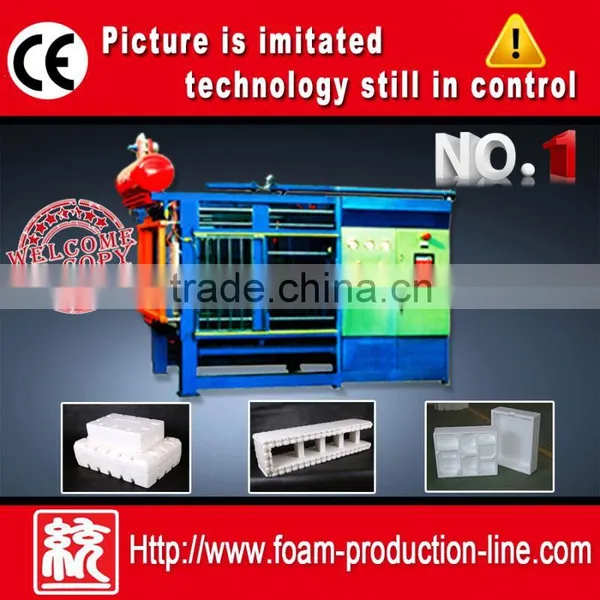

2014 NO.1 block form
CE certification

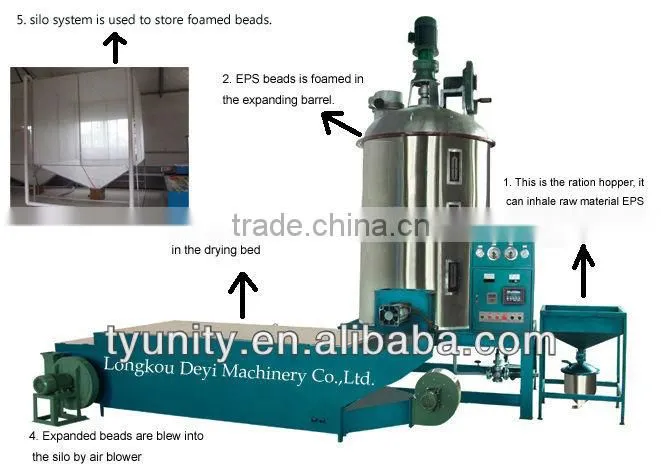

A. main features:
1.This machine adopts PLC programmable controller and touching screen to carry out automatic production from feeding, temperature control, ration, pressurizing and feeding.
2.Top-grade sealing foaming with constant pressure, high thermal efficiency, save 50% steam or above than continuous foaming machine
3.Adopt high-precision imported pneumatic control valve so that temperature can be controlled at ±1%, EPS grains are at same level with low water content.
4.Correct feeding method can assure even density

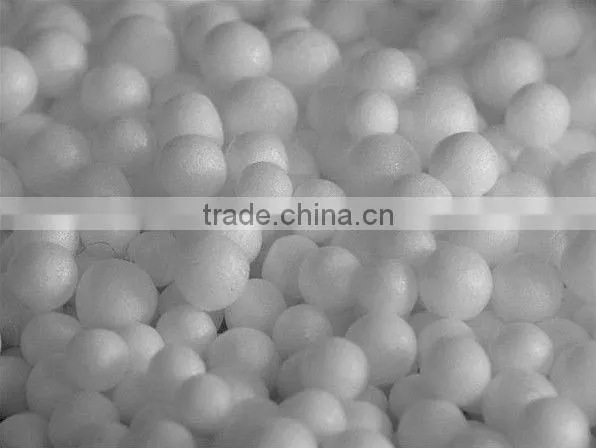

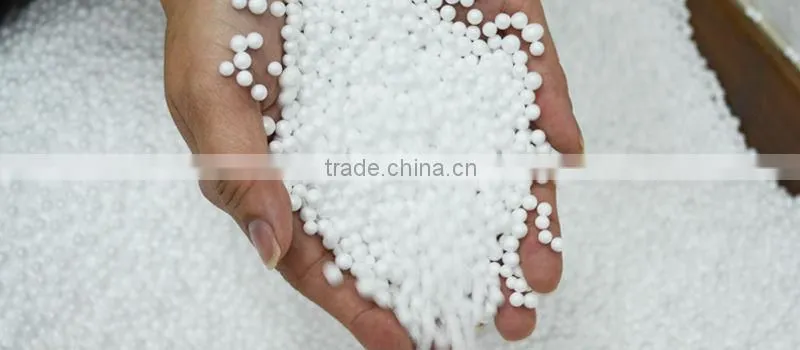

B. expandable beads:
C. Application:
A. Main features of eps block molding machine
It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non- deformation and high resistance to the expansive force from high-density products.
B. Technical Date:
Item |
Unit |
PSB-2000 |
PSB-3000 |
PSB-4000 |
PSB-6000 |
Mould chamber internal size |
mm |
2040x1020x530 |
3060x1250x630 |
4080x1250x630 |
6100x1250x630 |
Mould chamber volume |
M3 |
1.10 |
2.41 |
3.21 |
4. 82 |
Product density |
Kg/m3 |
4-45 |
4-45 |
4-45 |
4-45 |
Product efficiency |
Piece/h |
2-9 |
2-9 |
2-9 |
2-9 |
Steam pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Compressed air inlet diameter |
mm |
80 |
80 |
80 |
80 |
Steam inlet diameter |
mm |
80 |
80 |
108 |
159 |
Power supply |
V |
380 |
380 |
380 |
380 |
Power |
Kw |
7 |
7 |
13 |
13 |
Dimension |
mm |
3600x2000x3000 |
4500x2150x2950 |
5500x2150x2950 |
7500x2150x2950 |
Installed weight |
KG |
2800 |
4600 |
6000 |
9600 |
