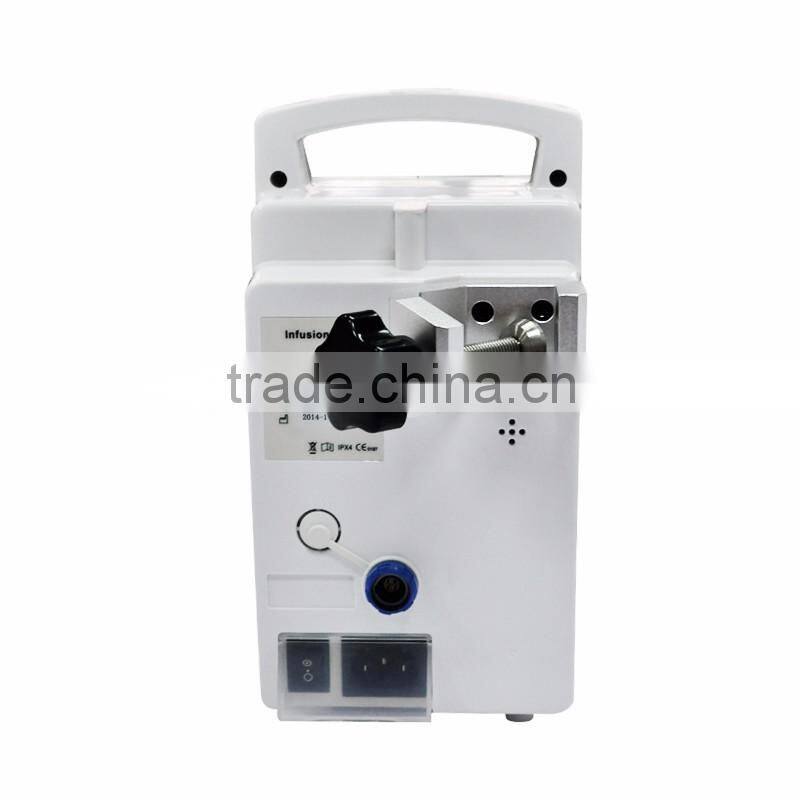

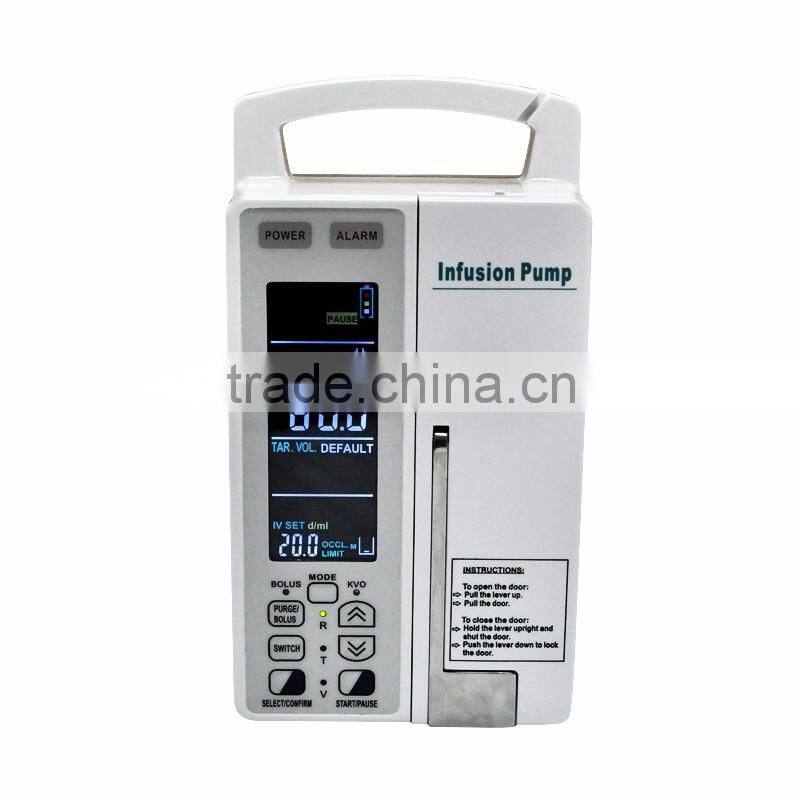

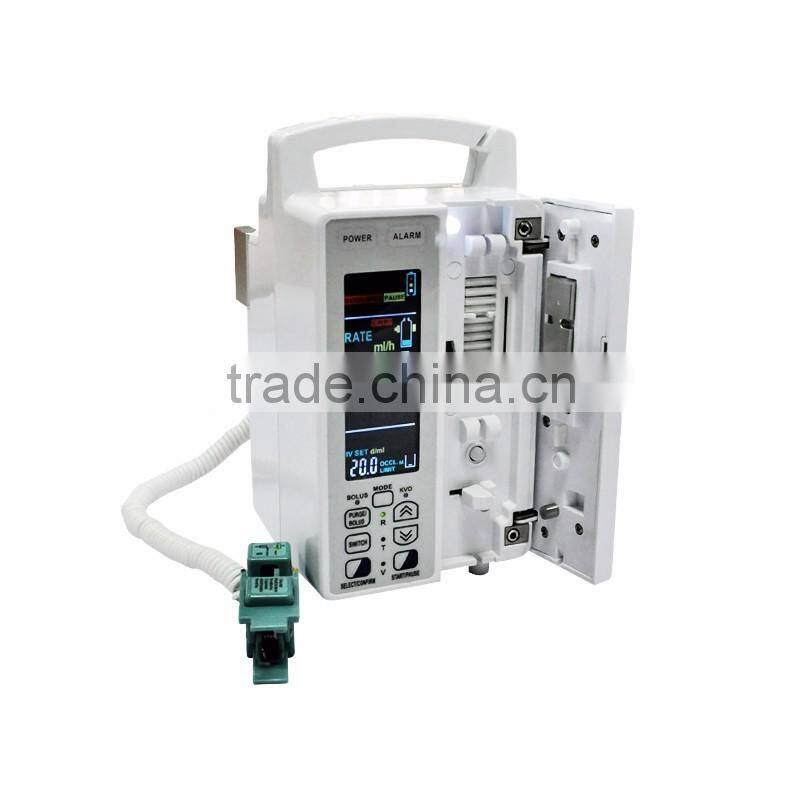

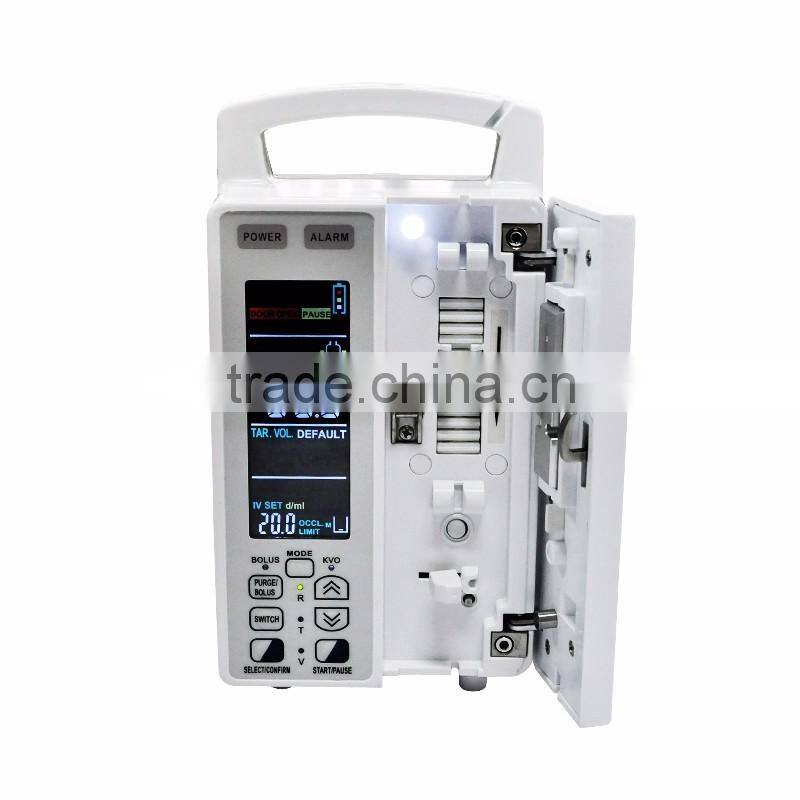

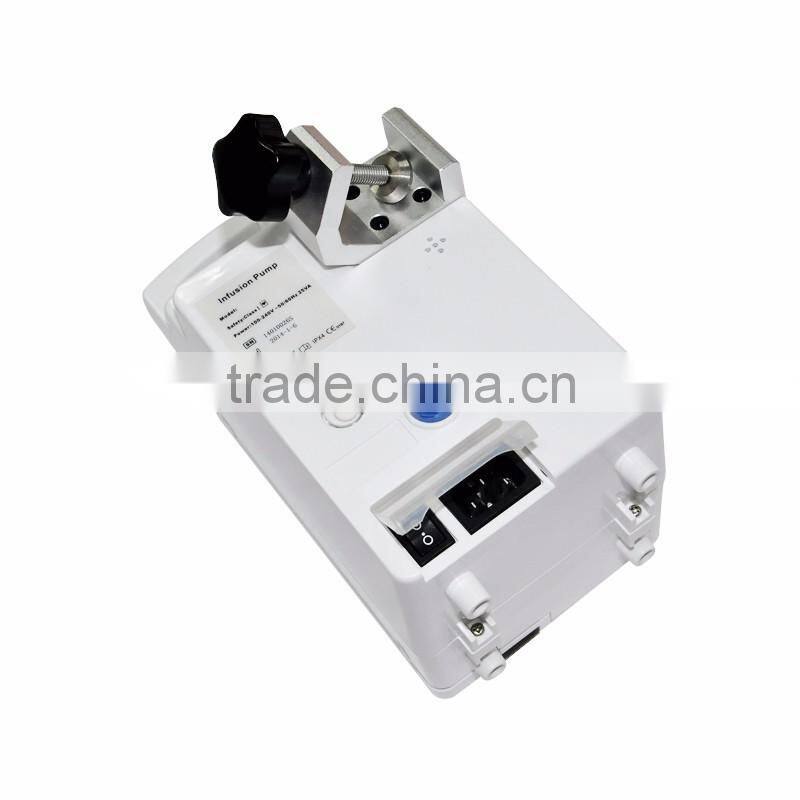

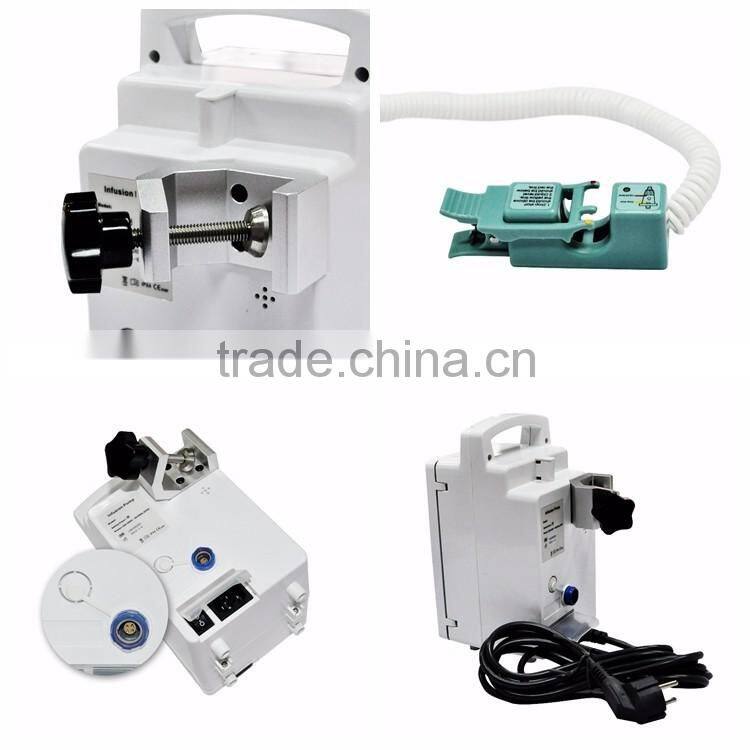

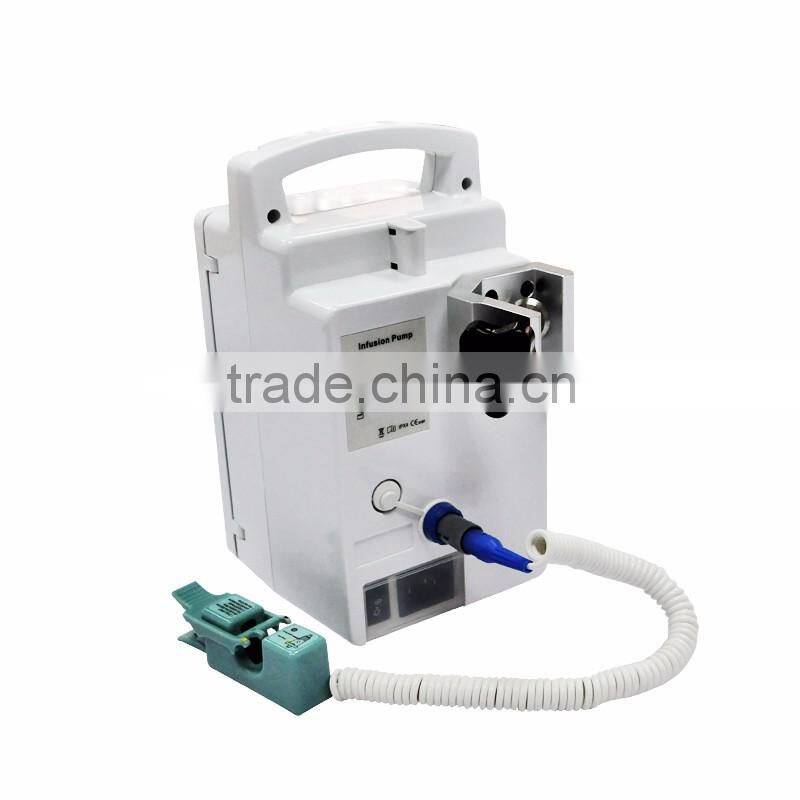

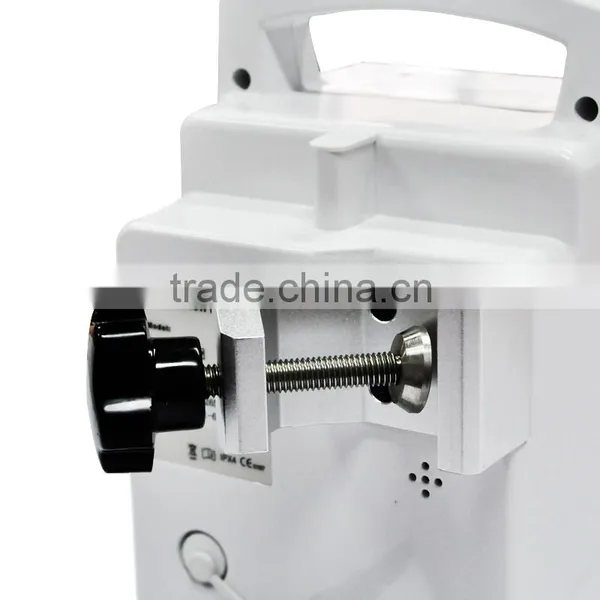

CE &ISO13485 18 month warranty factory price 0~9999ml Volume Limit portable infusion pump medical
Features:
Compatible with IV sets of any Brand with high accuracy
Automatic calibration for IV sets of any Brand
Three working modes: Drop counting control,Rate control and time control mode
8 Hours internal battery life in high capacity
Has a unique color LCD and an internal battery with a high capability.
Switch between ml/h and drops/min freely
Three levels of alarm volume: high, medium and low
Three levels of Occlusion pressure: high, medium and low
KVO function: When finish the total volume of an infusion, the pump will alarm and enter KVO state.
Specifications:
Controls: Drop counting and adjusting the delivery rate automatically
Pump Type: Peristaltic finger
Applicable IV Sets: Compatible with IV sets of any standard(including lucifugal IV sets)
Accuracy: ≤25drop/min:±2%, >25drop/min:±3% (With the drop counting control mode)
±5% (With the rate control mode after the correct calibration)
Delivery Rate Range: 1~400drop/min(1drop/min step)1.0ml/h~1200ml/h (1.0ml/h~99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step)
Delivery Time Range: 1min~1999min (1 min step)
Volume Limit Range: 0~9999ml (1 ml step)
Total Volume Range: 1~9999ml (1 ml step)
Rapid injection: 600ml/h
KVO Rate: 600ml/h
KVO Rate: W hen the delivery rate≤10ml/h, KVO is 1 ml/h . O therwise KVO is 3ml/h.
Alarms: Air-in-line, Infusion complete when limited volume has been set, Empty container, Occlusion, Door is open, waiting time Over, No drop been detected, Operational errors, Low battery, other device failures.
Power Supply: AC power supply: AC 100 to 240V±10%,50/60Hz;
Internal LI Battery: 11.1V, 2000mAh. 8 Hours of continuous operation on a new fully charged battery with the rate of 20 drops/min.
Power Consumption: ≤25VA
Safety level: ClassⅠ, Type BF
Dimensions: 130mm(L)× 200mm(W) × 230mm(H)
Net Weight: Approximately. 2.5kg
Operating Conditions: Ambient temperature: 5 to 40℃ Relative humidity: 20 to 90%
Storage Conditions: Ambient temperature: -10 to 55℃ Relative humidity: 10 to 90%
Accessories: AC power line, Operational manual
Click the picture for detalied information:
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
