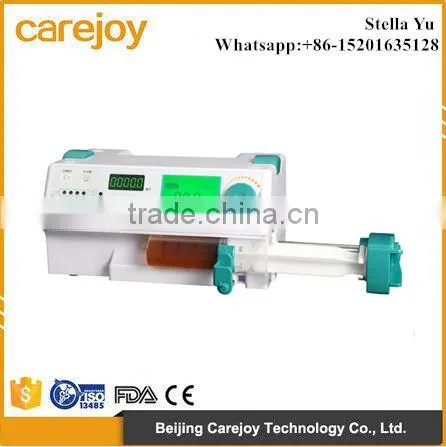

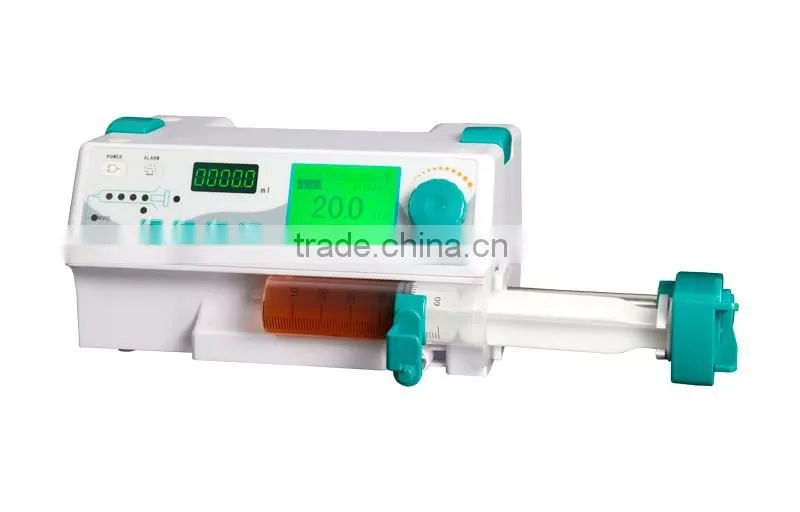

New Syringe Pump Single Channel Syringe Pump

US$ 299 - 499 MOQ: 1 Unit

Key Specifications

Properties:

Other, Injection & Puncture Instrument

Model Number:

SP-50B

Place of Origin:

Beijing, China

Beijing Carejoy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Properties Other, Injection & Puncture Instrument

Model Number SP-50B

Place of Origin Beijing, China

CHARACTERISTICS

Compatible with Syringes of any Brands
Automatic calibration for Syringes of any Brand .
Three working modes: Rate control mode, Time control mode and Dose-Weight control mode.
Automatic Detection of Syringe types and settings.
Broad range in delivery rate settings
8 Hours internal battery life in high capacity.
Three levels of alarm volume: high, medium and low.
Three levels of occlusion pressure: high, medium and low.
KVO function:After infusion is complete, the pump automatically switches to the smallest flow to prevent creating the thrombus.

SPECIFICATIONS

Compatible Syringe: Any standard syringe with 10ml,20ml(30ml) and 50ml(60ml)
Accuracy: ±2% (Any manufacturers of syringes, right after calibration )
Delivery Rate Range:
50ml(60ml):0.1ml/h~1800.0ml/h (0.1ml/h step)
20ml(30ml):0.1ml/h~800.0ml/h (0.1ml/h step)
10ml:0.1ml/h~400.0ml/h (0.1ml/h step)
Time Mode Range:
Volume:0.1~999.9ml (0.1ml step)
TIME:1~1999min (1min step)
Body Weight Mode Range:
Volume:0.1~999.9ml(0.1ml step)
DRUG MASS:0.1~999.9mg(0.1mg step)
DOSE:0.01~99.99ug/kg/min(0.01ug/kg/min step)
WEIGHT:0.1~300kg(0.1kg the least step)
Volume Limit Range: 0~1999.9ml (0.1 ml step)
Total Volume Range: 0.1~1999.9ml (0.1 ml step)
Rapid injection: 50ml(60ml):1800.0ml/h, 20ml(30ml):800.0ml/h, 10ml:400.0ml/h
KVO Rate: 1ml/h
Alarms:
Near empty, Syringe empty, Volume complete(a volume limit has been set ), Occlusion, Syringe loose, Operation error, Low battery and other device failures.
Power Supply:
AC power supply: AC 100 to 240V±10%,50/60Hz;
Internal LI Battery: 11.1V, 2000mAh. Approximately 8 hours of continuous operation on a new and fully charged battery running at 5ml/h.
Power Consumption: ≤25VA
Safety level: Class I, Type BF
Dimensions: 280mm(L)×160mm(W)×130mm(H)
Net Weight: Approximately. 3.0kg
Operating Conditions: Ambient temperature: 5 to 40℃ Relative humidity: 20 to 90%
Storage Condition: Ambient temperature: -10 to 55℃ Relative humidity: 10 to 90%
Accessories: AC power line, Operational manual
