Home > Health & Medicine > Medical Equipment > Medical Diagnosis Equipment > CE,ISO13485 Medical Digital 1-Channel Electrocardiograph Standard 12 Leads Factory Price of Ecg Machine

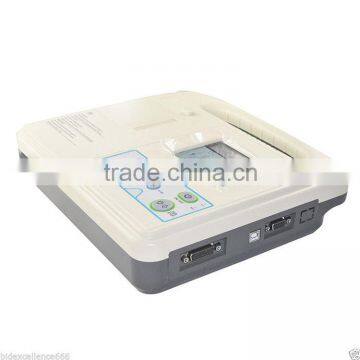

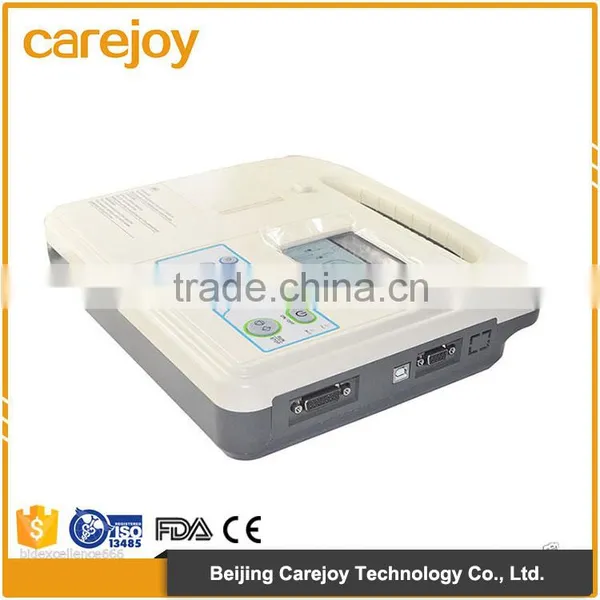

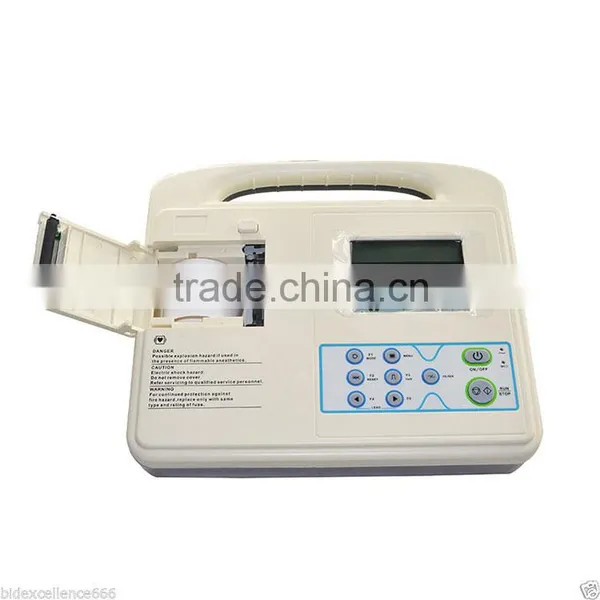

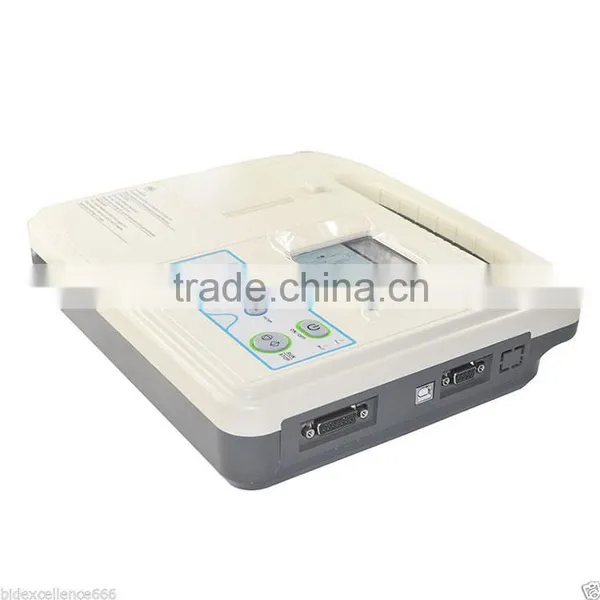

CE,ISO13485 Medical Digital 1-Channel Electrocardiograph Standard 12 Leads Factory Price of Ecg Machine
US$ 100 - 429
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Pathological Analysis Equipments
Brand Name:
OEM
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Portable 12 Leads One Channel ECG Machine ElectrocardiographUS$ 190 - 290MOQ: 1 Set -
CE & FDA Approved Digital Portable 12 Channel Ecg MachineUS$ 700 - 900MOQ: 1 Unit
-
2015 New Digital 12-channel Touch Screen Color Electrocardiograph ECG EKG MachineNegotiableMOQ: 1 Unit
-
10 Inch Digital 12 Channel ECG Machine With Analysis/ Hospital Equipment / Ecg MonitorUS$ 100 - 1,000MOQ: 1 Set
-
Economic Style Interpretive 3 Channel ECG Machine EKG-903A3US$ 100 - 500MOQ: 1 Set
Type
Pathological Analysis Equipments
Brand Name
OEM
Place of Origin
Beijing, China
Model Number
EKG-901A
CE,ISO13485 medical Digital 1-channel Electrocardiograph Standard 12 Leads factory price of ecg machine
Product Description
Features:
- One channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Multiple printing modes
- 320x240 graphic, 3.8 inch LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight with handle, convenient for use
Specification:
| Safety standard | IEC60601-1 class I, type CF |
| Lead | Standard 12 Leads, Lead change automatically |
| Resolution | 12 bit / 1000Hz |
| Operation mode | Manual/Auto/Analysis modes |
| Filter | AC, EMG filter |
| Drift filter | Anti-drift system |
| Input circuit | Floating; Protection against Defibrillator effect |
| CMRR | >100dB (with filter) |
| Input circuit current | <0.1μA |
| Input impedance | ≥50ΜΩ |
| Calibrating voltage | 1mV±3% |
| Frequency response | 0.05Hz~160Hz (IEC) |
| Time constant | >3.2seconds |
| Noise level | ≤15Vp-p |
| Threshold | ≤20μV |
| Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
| Recording system | High resolution thermal printer |
| Paper speed | 25, 50mm/s±3% |
| Recording paper | 50mmx20m, roll/fold paper |
| Power supply | AC: 220V / 110V, 50/60Hz |
| DC: 14.4V rechargeable NI-Ion battery (1500mAh) | |
| LCD display | 320x240 graphic, 3.8 inch LCD |
| Dimensions | 285×265×72mm |
| Weight | 2.5kg |
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
