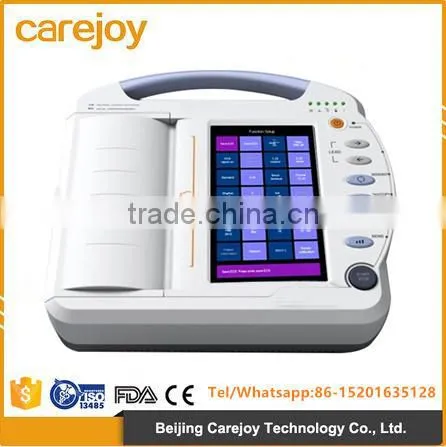

Help Center2015 New Digital 12-channel Touch Screen Color Electrocardiograph ECG EKG Machine
Related Products
-
10 Inch Digital 12 Channel ECG Machine With Analysis/ Hospital Equipment / Ecg MonitorUS$ 100 - 1,000MOQ: 1 Set -
Economic Style Interpretive 3 Channel ECG Machine EKG-903A3US$ 100 - 500MOQ: 1 Set
-
2016 Health & Medical Equipment 12 Channel Ecg MachineUS$ 699 - 899MOQ: 1 Set
-
2016 New Arrival 6 Channel ECG Monitor Cheap Price of Ecg Machine for SaleUS$ 300 - 600MOQ: 1 Set
-
Factory Price!!CE Approved 10 Inch Twelve Channel Color Electrocardiograph Machine(EKG-1212A)US$ 500 - 700MOQ: 1 Set
Features:
- 12 channel digital ECG machine with interpretation
- Simultaneous acquisition of 12-lead ECG signal
- Manual/Auto/Arrhythmia analysis modes
- Real time ECG, 20 patients cases
- Alphabetic keyboard for patient info
- Multiple printing modes
- 320x240 graphic, 10 inch LCD
- High resolution thermal printing system
- High resolution digital filter
- Built-in USB or RS232, optional PC-ECG software
- AC/DC power, built-in rechargeable Ni-MH battery
- Light weight, portable, convenient for use
Specification:
Safety standard | IEC60601-1 class I, type CF |
Lead | Standard 12 Leads, Lead change automatically |
Resolution | 12 bit / 1000Hz |
Operation mode | Manual/Auto/Analysis modes |
Filter | AC, EMG filter |
Drift filter | Anti-drift system |
Input circuit | Floating; Protection against Defibrillator effect |
CMRR | >100dB (with filter) |
Input circuit current | <0.1μA |
Input impedance | ≥50ΜΩ |
Calibrating voltage | 1mV±3% |
Frequency response | 0.05Hz~160Hz (IEC) |
Time constant | >3.2seconds |
Noise level | ≤15Vp-p |
Threshold | ≤20μV |
Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system | High resolution thermal printer |
Paper speed | 25, 50mm/s±3% |
Recording paper | 210/216mmx20m, roll/fold paper |
Power supply | AC: 220V / 110V, 50/60Hz |
LCD display | 320x240 graphic, 5.7 inch LCD |
Dimensions | 285×265×72mm |
Weight | 3.8kg |
