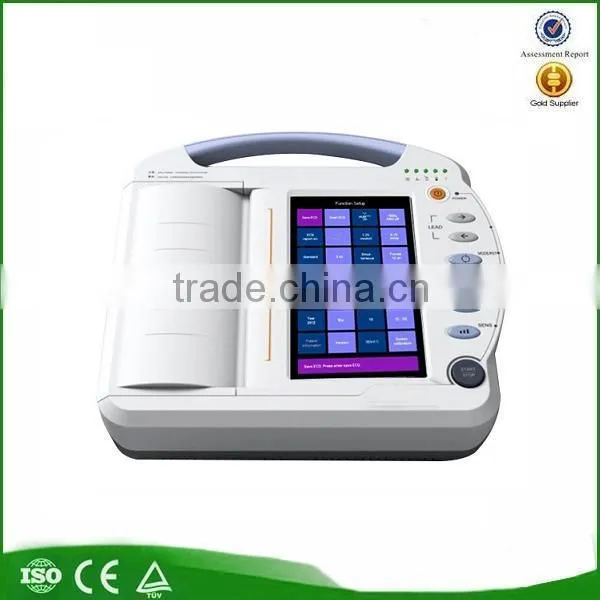

New style Portable 12 channel Touch Screen ECG machine
Features:
- 12 channel digital ECG machine with interpretation.
- Simultaneous acquisition of 12-lead ECG signal.
- Manual/Auto/Arrhythmia analysis modes.
- Real time ECG, 20 patients cases.
- Alphabetic keyboard for patient info.
- Multiple printing modes.
- 320x240 graphic, 10 inch LCD.
- High resolution thermal printing system.
- High resolution digital filter.
- Built-in USB or RS232, optional PC-ECG software.
- AC/DC power, built-in rechargeable Ni-MH battery.
- Light weight, portable, convenient for use.
Specification:
Safety standard | IEC60601-1 class I, type CF |
Lead | Standard 12 Leads, Lead change automatically |
Resolution | 12 bit / 1000Hz |
Operation mode | Manual/Auto/Analysis modes |
Filter | AC, EMG filter |
Drift filter | Anti-drift system |
Input circuit | Floating; Protection against Defibrillator effect |
CMRR | >100dB (with filter) |
Input circuit current | <0.1μA |
Input impedance | ≥50ΜΩ |
Calibrating voltage | 1mV±3% |
Frequency response | 0.05Hz~160Hz (IEC) |
Time constant | >3.2seconds |
Noise level | ≤15Vp-p |
Threshold | ≤20μV |
Sensitivity | Auto 2.5, 5, 10, 20, 40mm/mV |
Recording system | High resolution thermal printer |
Paper speed | 25, 50mm/s±3% |
Recording paper | 210/216mmx20m, roll/fold paper |
Power supply | AC: 220V / 110V, 50/60Hz DC: 14.4V rechargeable NI-Ion battery (4400mAh) |
LCD display | 320x240 graphic, 10 inch LCD |
Dimensions | 285×265×72mm |
Weight | 3.8kg |
Details show:
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
Martin
Beijing CareJoy Technology Co., Ltd.
Our website:
Tel: 0086-010-82125963
Skype: martin101901
Email : martin.she(@)
Phone/Whatsapp: 0086 17701221019
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
