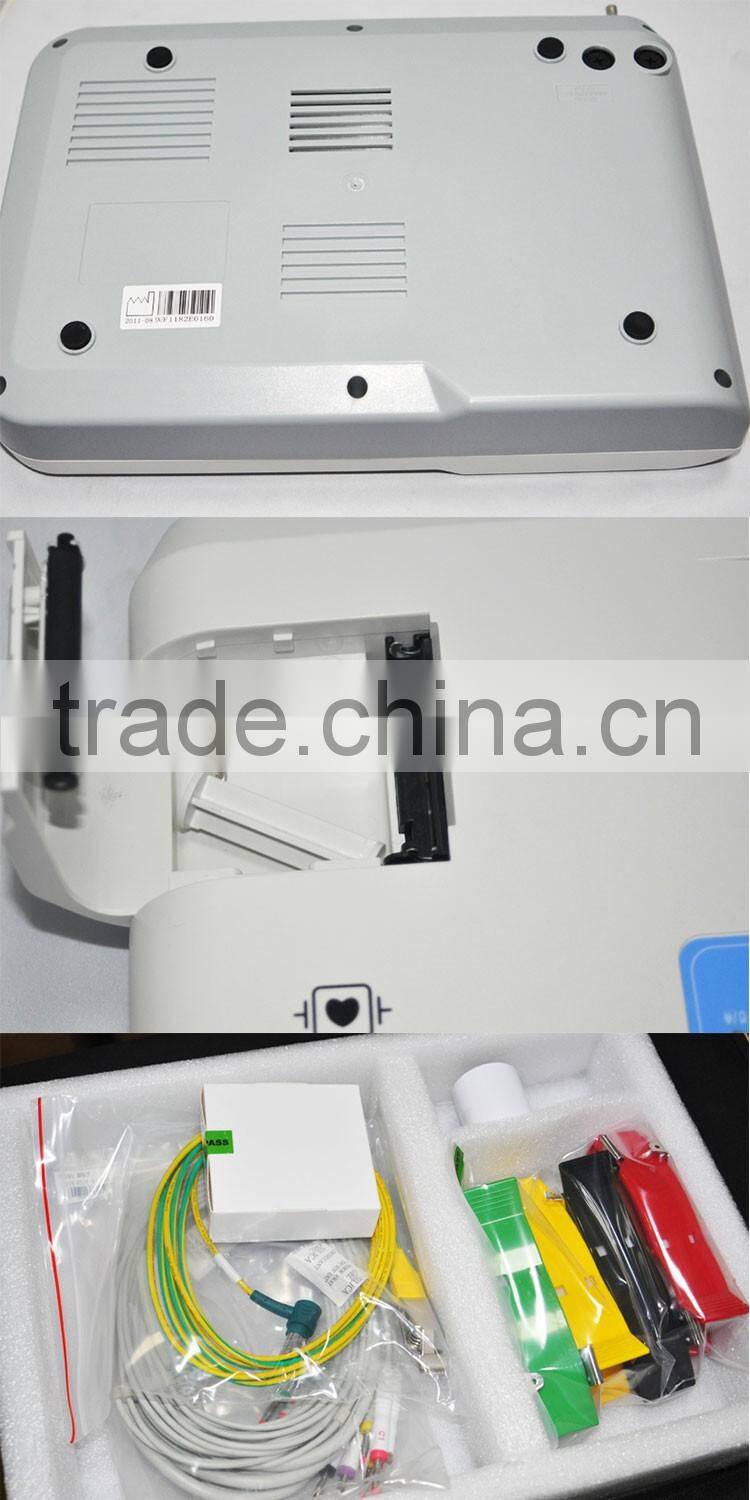

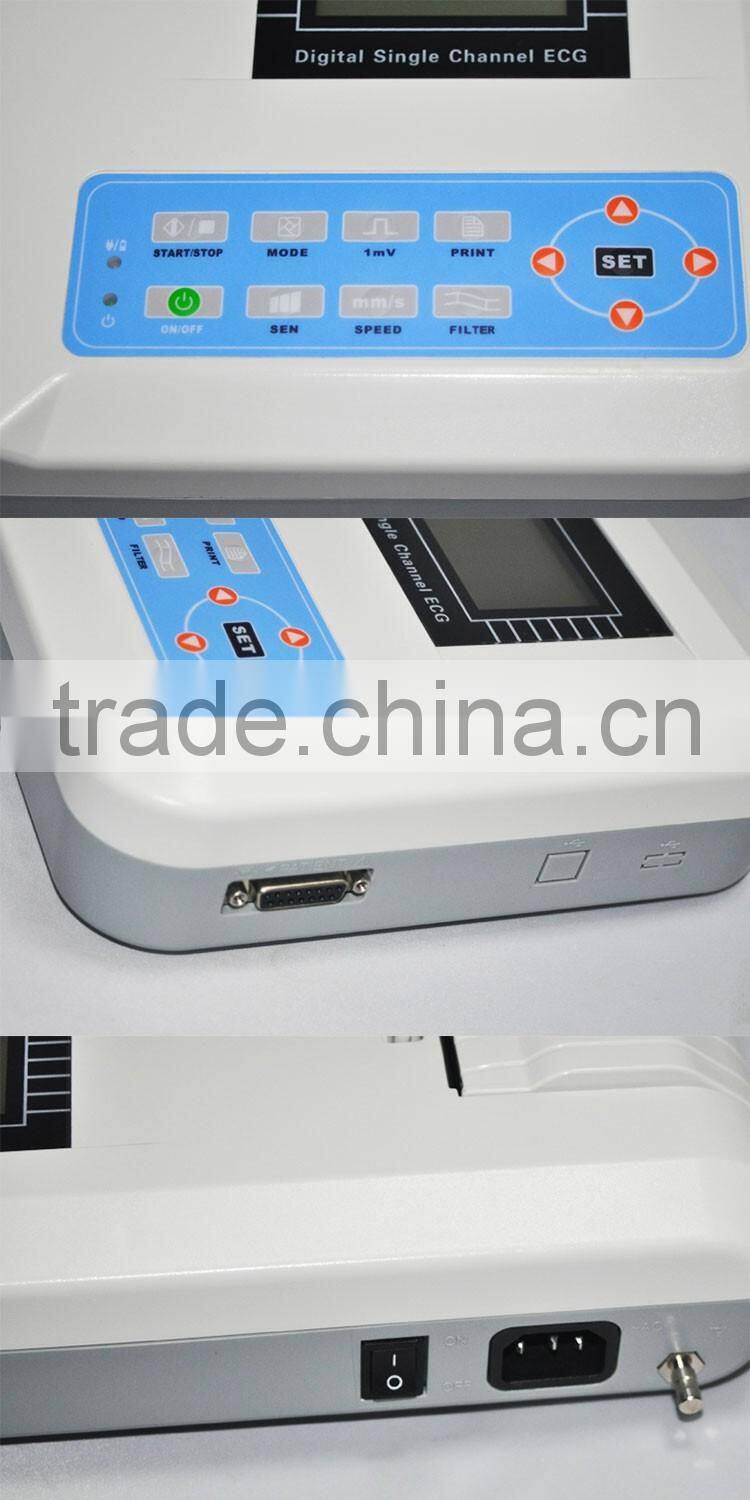

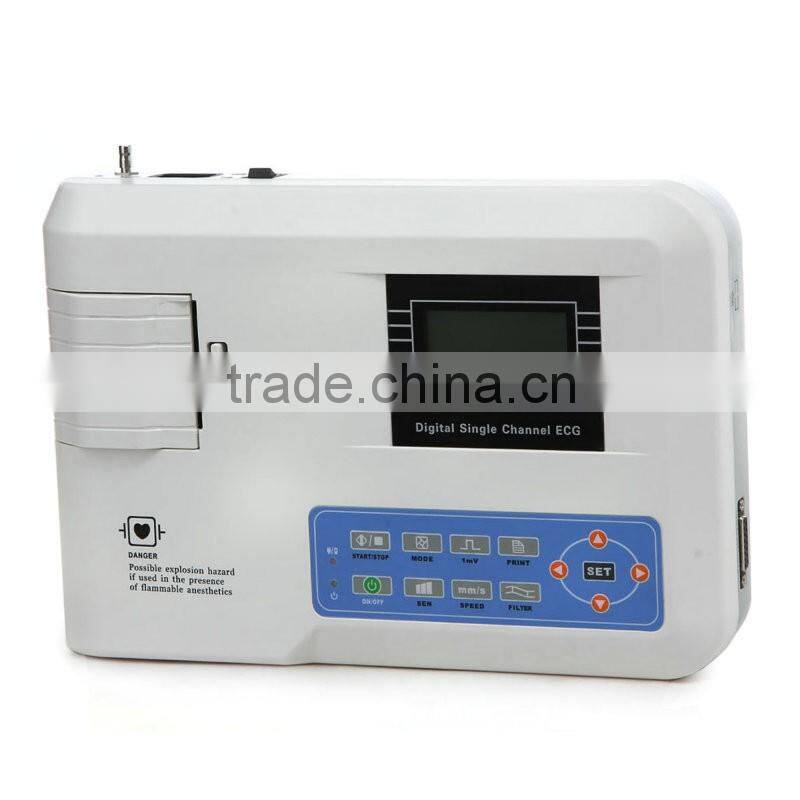

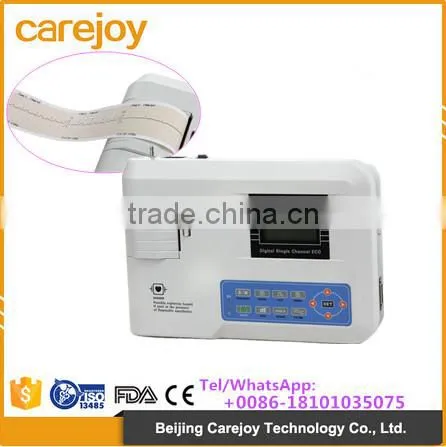

Help CenterCE Portable 12 Leads One Channel ECG Machine Electrocardiograph
Related Products
-
CE & FDA Approved Digital Portable 12 Channel Ecg MachineUS$ 700 - 900MOQ: 1 Unit -
2015 New Digital 12-channel Touch Screen Color Electrocardiograph ECG EKG MachineNegotiableMOQ: 1 Unit
-
10 Inch Digital 12 Channel ECG Machine With Analysis/ Hospital Equipment / Ecg MonitorUS$ 100 - 1,000MOQ: 1 Set
-
Economic Style Interpretive 3 Channel ECG Machine EKG-903A3US$ 100 - 500MOQ: 1 Set
-
2016 Health & Medical Equipment 12 Channel Ecg MachineUS$ 699 - 899MOQ: 1 Set
High-resolution One-touch operation Standard 12 Leads digital ECG machine
Features:
High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform

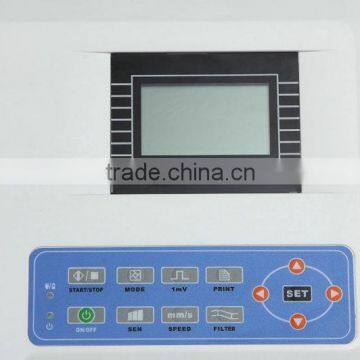

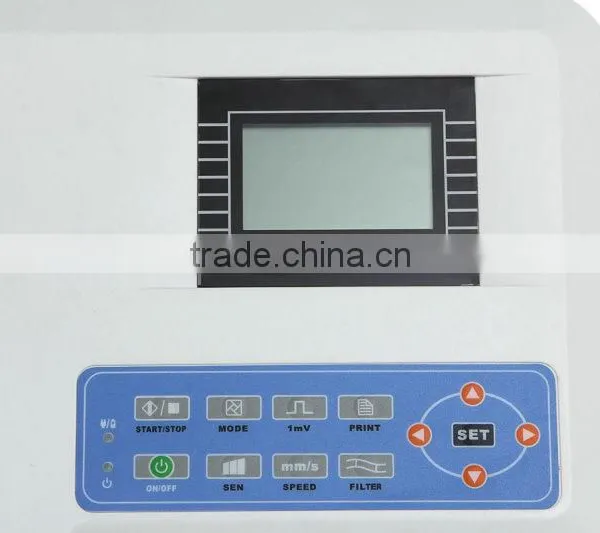

One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR | >80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
Click the link for more styles:
https://jxkh.en.china.cn/productgrouplist-801123345/ECG.html
1. 18 months warranty for the mainframe from date of shipment under normal use and service.
2. On-line services, for example, technical consultancies provided by our skilled technique group concerning any question of the equipment, and after-sale maintenance and more.
3. Carejoy Medical provides free technical & service training to the technical & sales staff of distributors for the related products and will further provide technical assistance via e-mail, Skype as requested by the distributors. The training will be performed in Beijing China.
4. OEM/ODM services are available.
